Product General Information
| Place of Origin: | |
| Brand Name: | SPRIDRAIN |
| Model Number: | DWSC80 |
| Certification: | |
| Minimum Order Quantity: | 1PCS |
| Price: | |

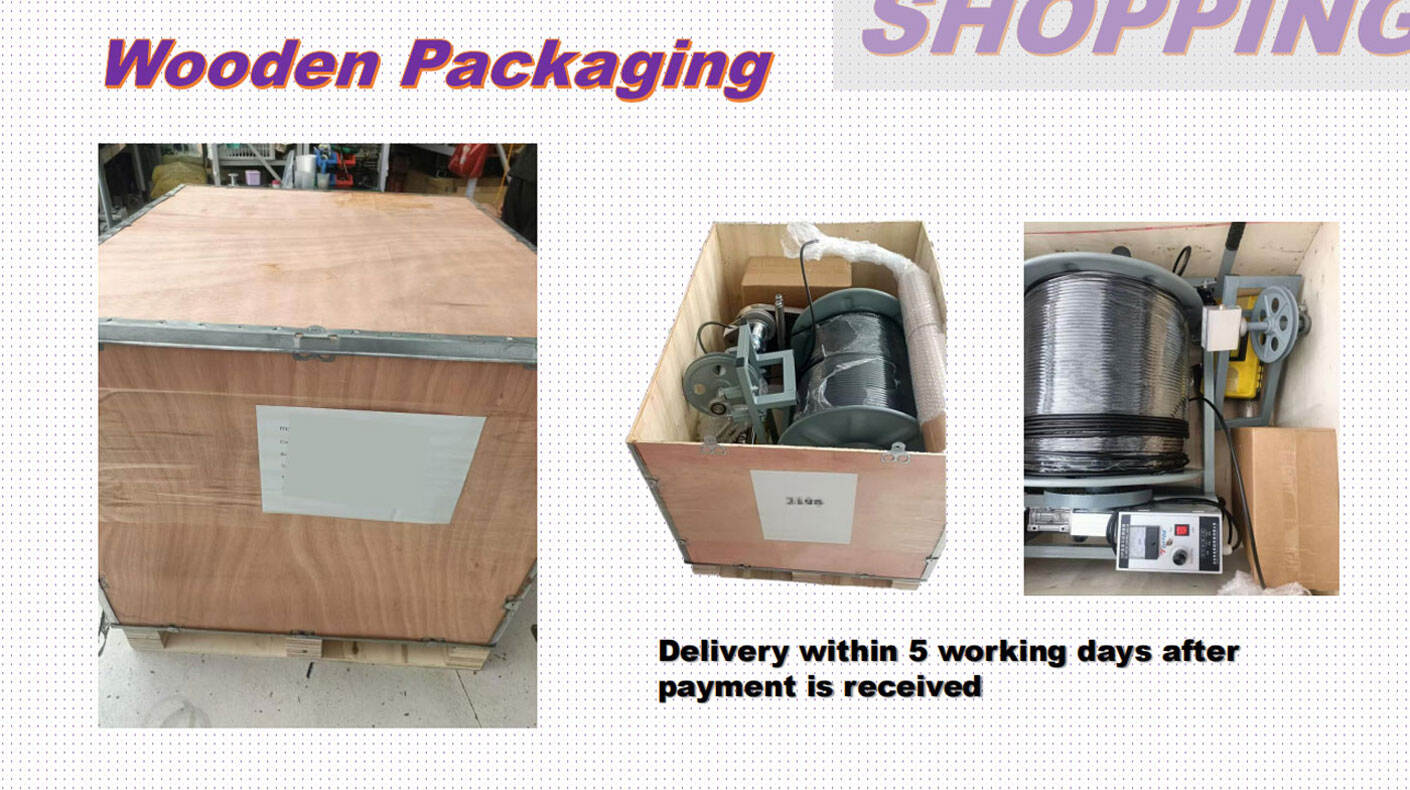

| Packaging Details: | Wooden Package |
| Delivery Time: | |
| Payment Terms: | |
| Supply Ability: |
Quick Detail:
● Description:

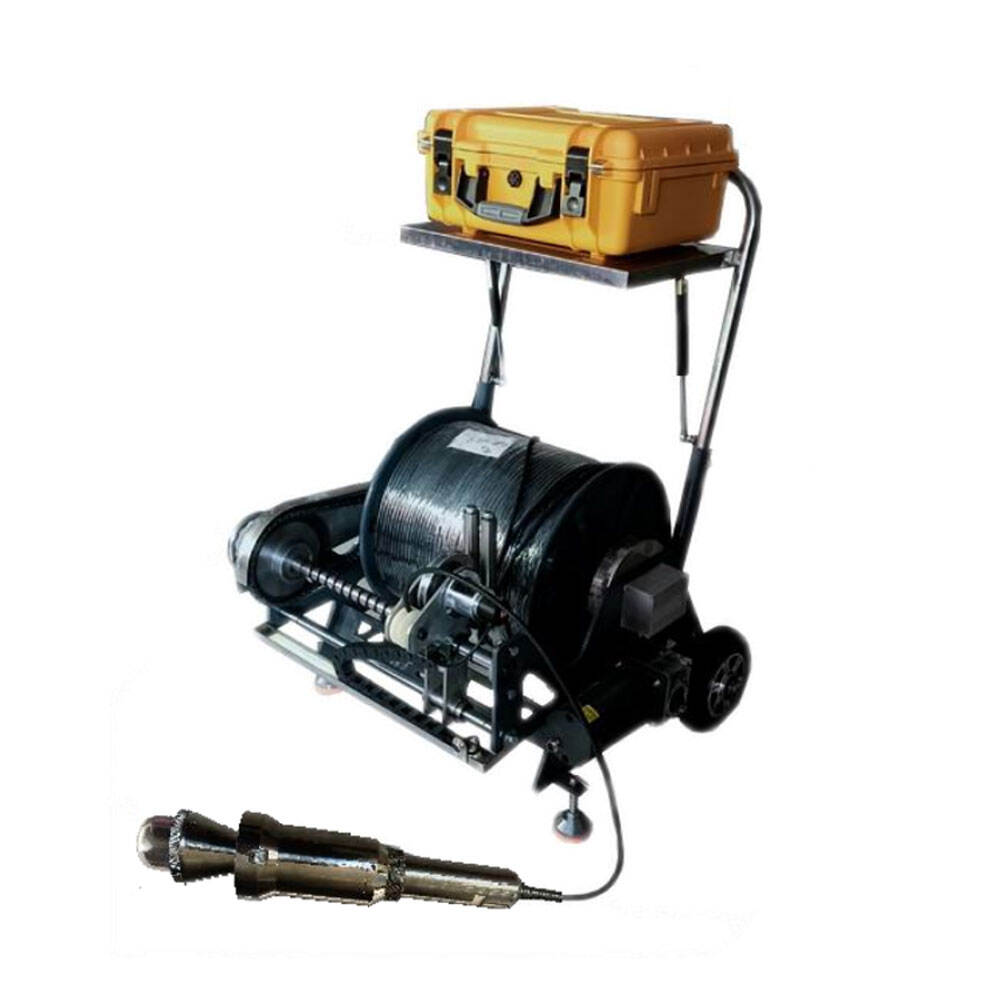

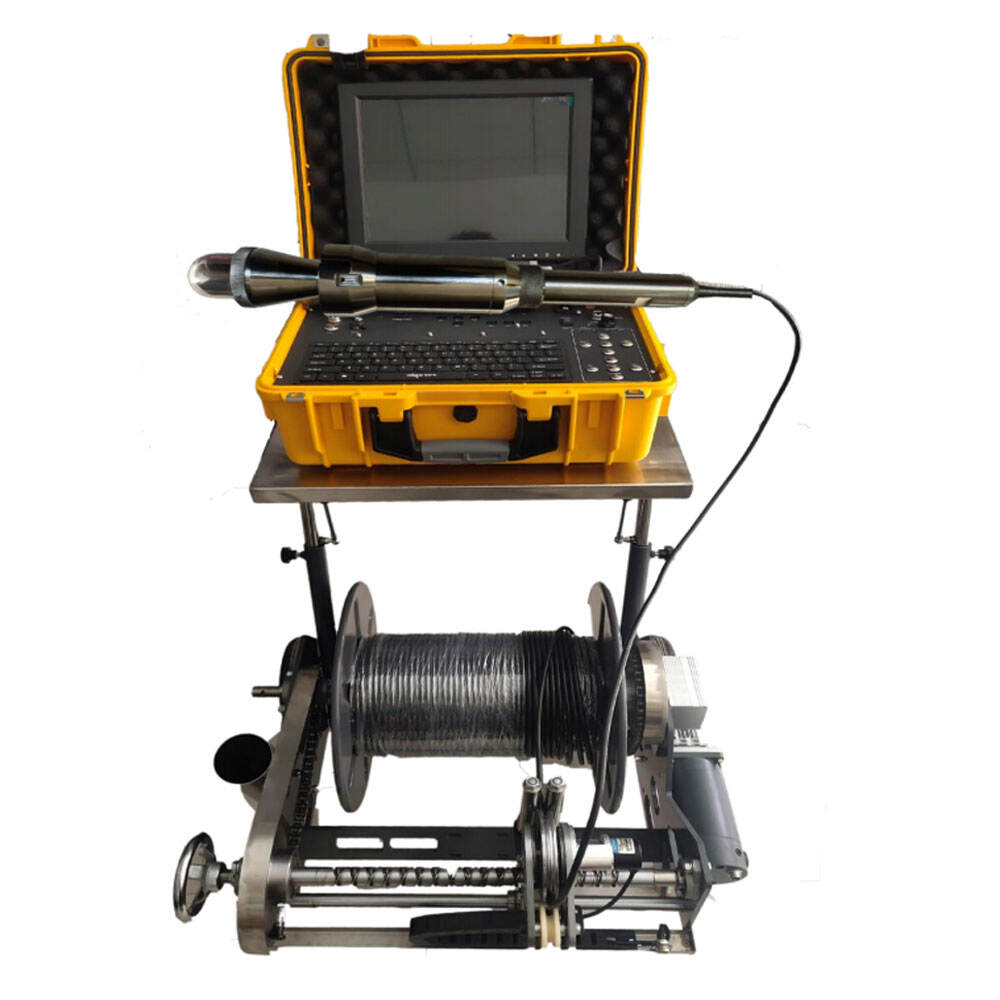

SPRIDRAIN 80mm Spherical Camera with Cable Routing Trolley Cart Model - Professional Spherical Camera for Well inspection，underwater operations, diving exploration.
● Applications:
Deep Well inspection，Oil well, underwater operations, diving exploration, water well
● Specifications:
| LED | 12 High-brightness LED Lamp Beads |
| Rotation Angle | 360° Horizontally, 180° Vertically |
| Focal Length | Variable Viewing Angle: 60° |
| Clear Vision | 100~600MM |
| LED Light | Supports 10-level Micro-dimming |
| HD Glass Lens | 3.9 Cone Glass Lens/F2.0 |
● Competitive Advantage:
1.Manufacturer Supply directly
2.Supply OEM/ODM Service
3.Cable Length Customized
Product Description：

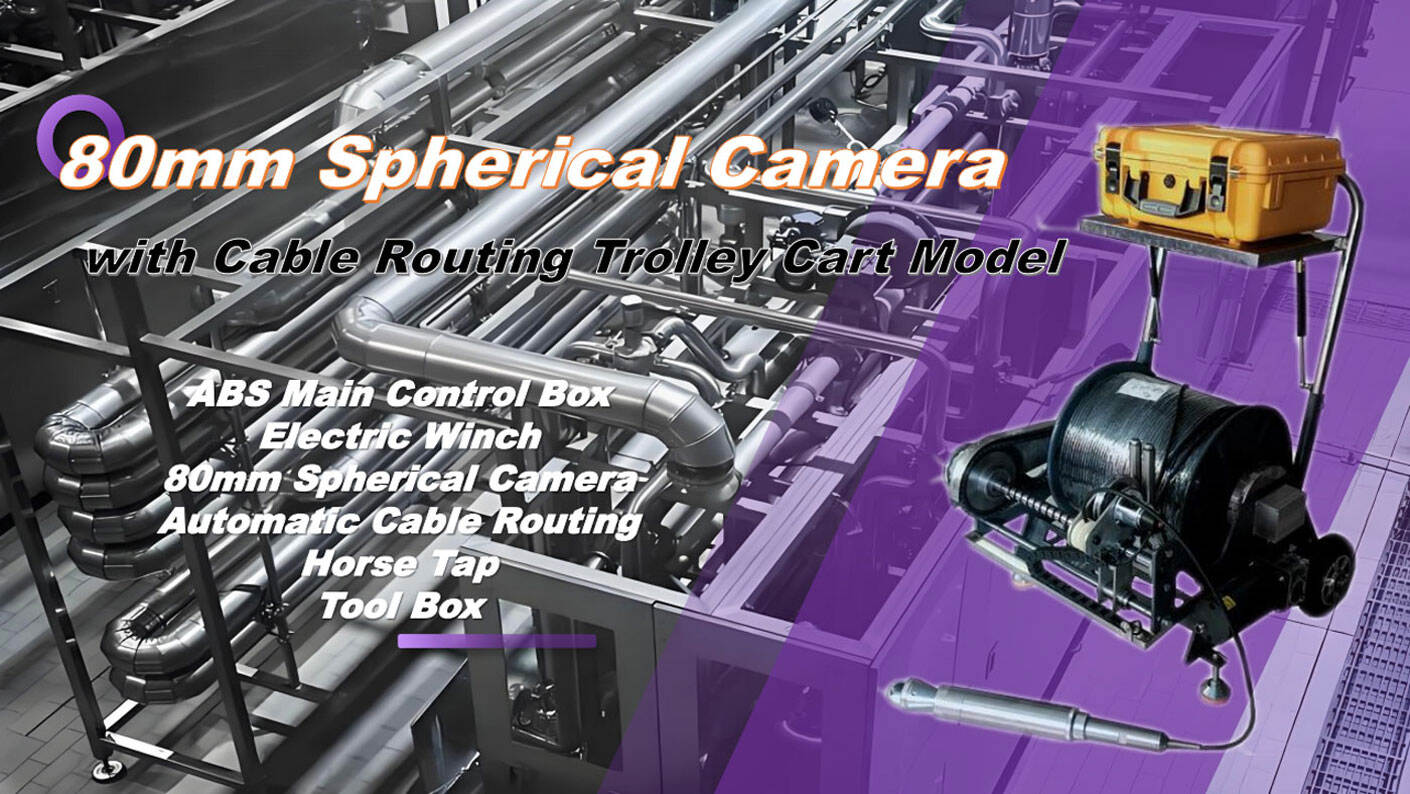

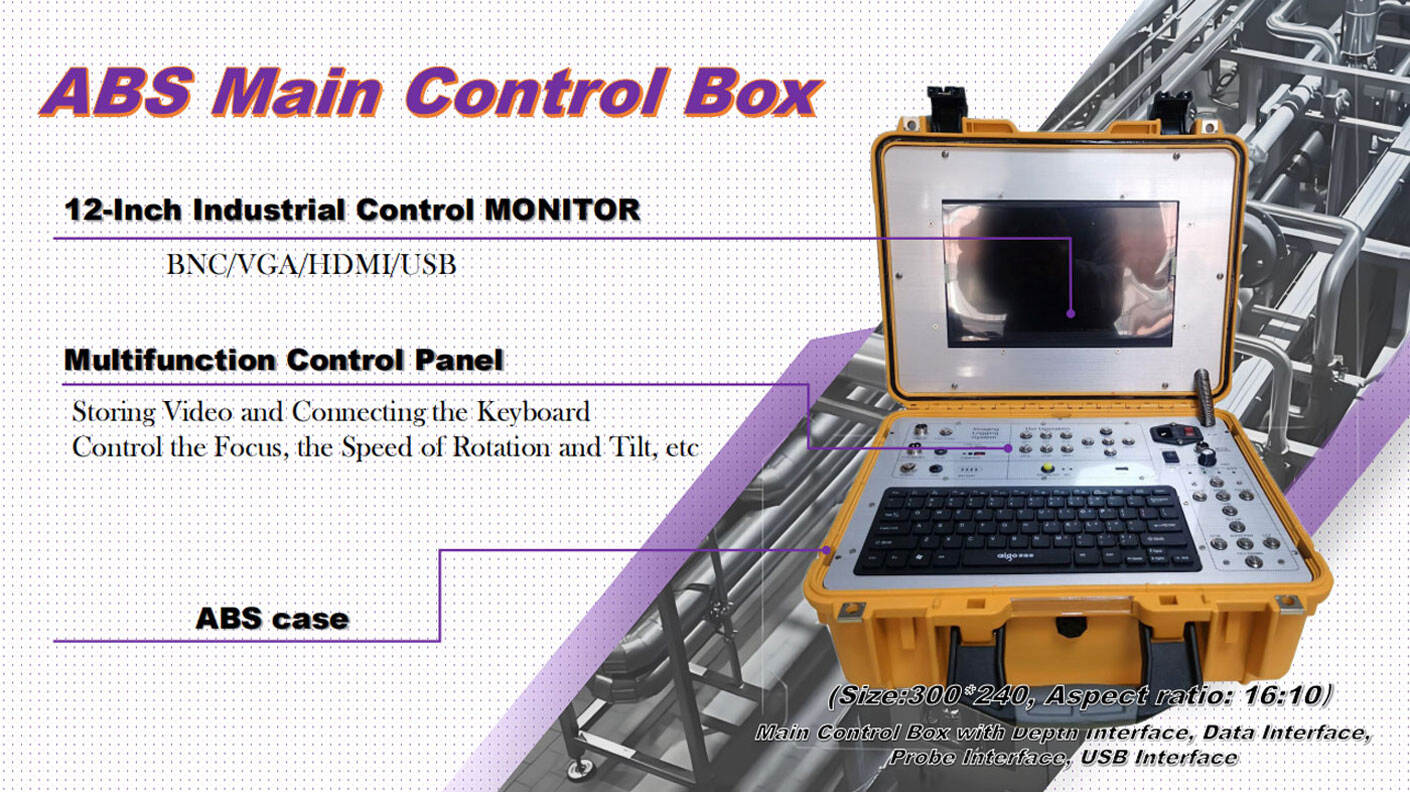

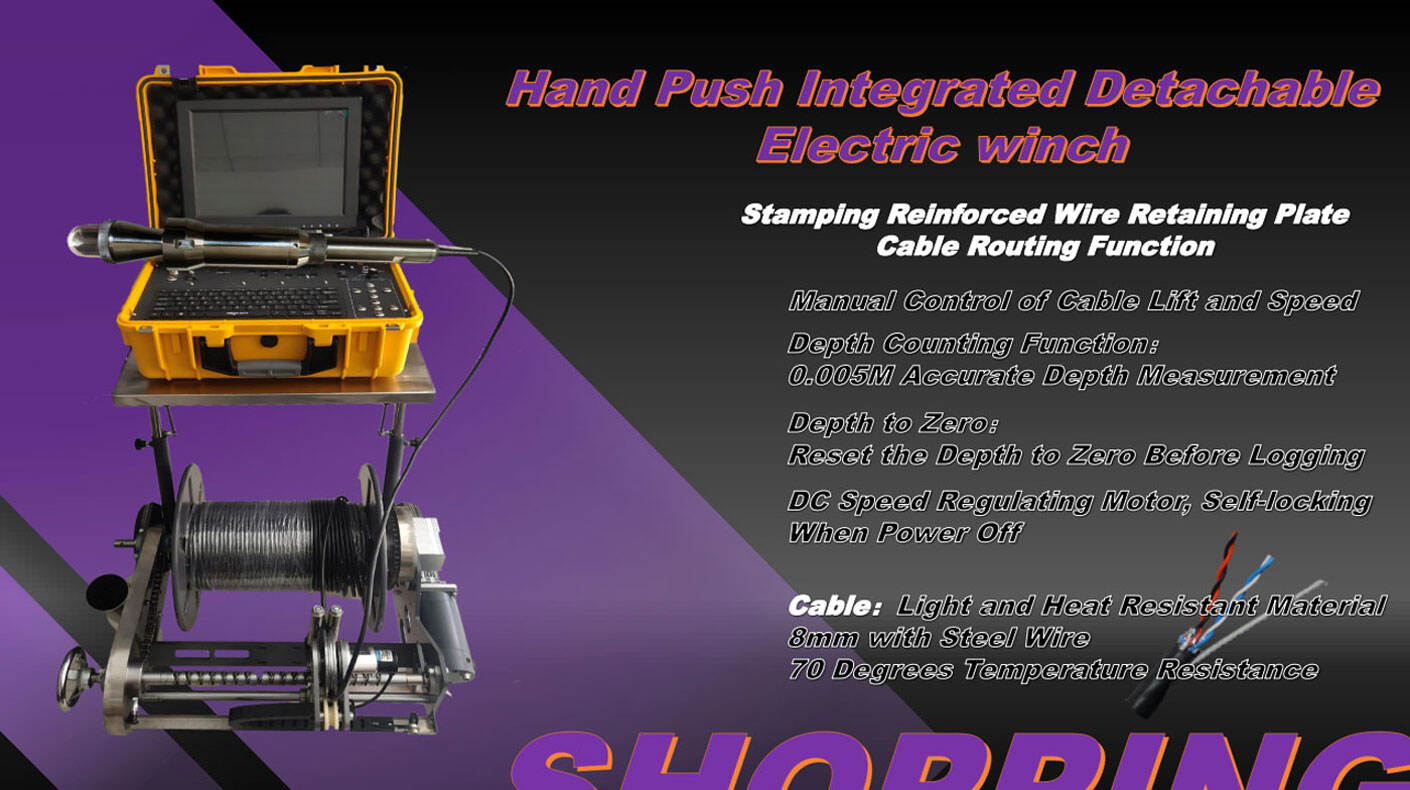

SPRIDRAIN 80mm Spherical Camera with Cable Routing Trolley Cart Model - Professional Spherical Camera for Well inspection，underwater operations, diving exploration. 12-Inch Industrial Control MONITOR support BNC/VGA/HDMI/USB interface. Multifunction Control Panel Support Storing Video and Connecting the Keyboard Control the Focus, the Speed of Rotation and Tilt, etc. Stamping Reinforced Wire Retaining Plate Cable Routing Function. Manual Control of Cable Lift and Speed as below:
1). Depth Counting Function：0.005M Accurate Depth Measurement
2). Depth to Zero：Reset the Depth to Zero Before Logging, DC Speed Regulating Motor, Self-locking When Power Off
Cable：Light and Heat Resistant Material, 8mm with Steel Wire. 70 Degrees Temperature Resistance

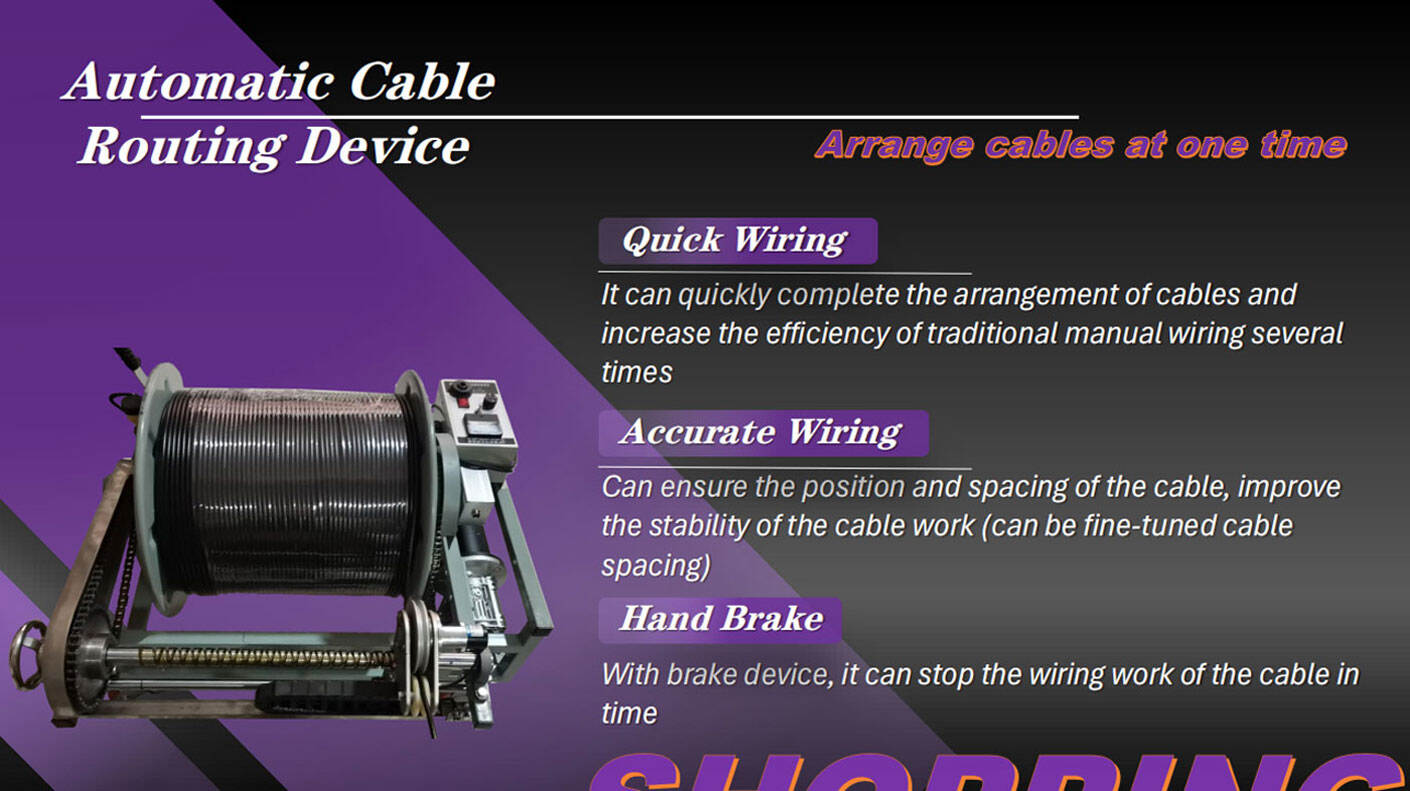

Automatic Cable With Routing Device:
● Quick Wiring - It can quickly complete the arrangement of cables and increase the efficiency of traditional manual wiring several times.
● Accurate Wiring - Can ensure the position and spacing of the cable, improve the stability of the cable work (can be fine-tuned cable spacing)
● Hand Brake - With brake device, it can stop the wiring work of the cable in time

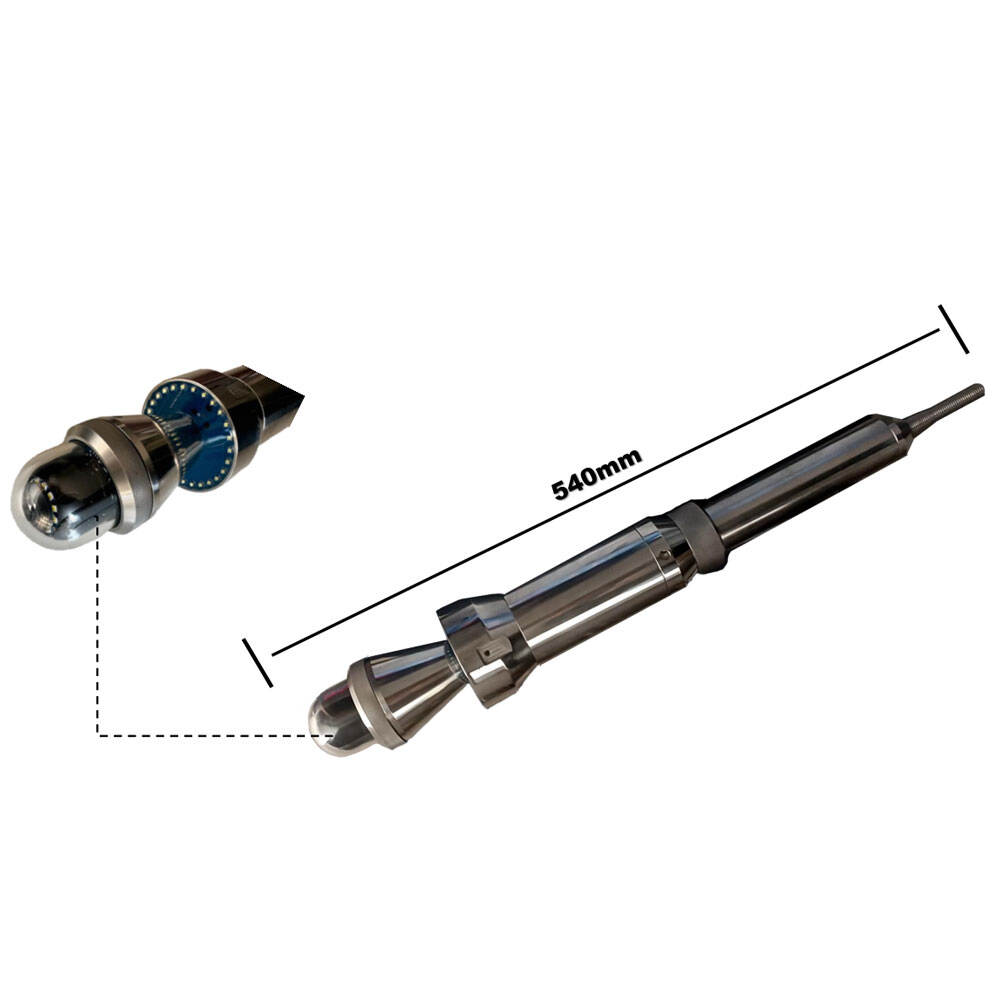

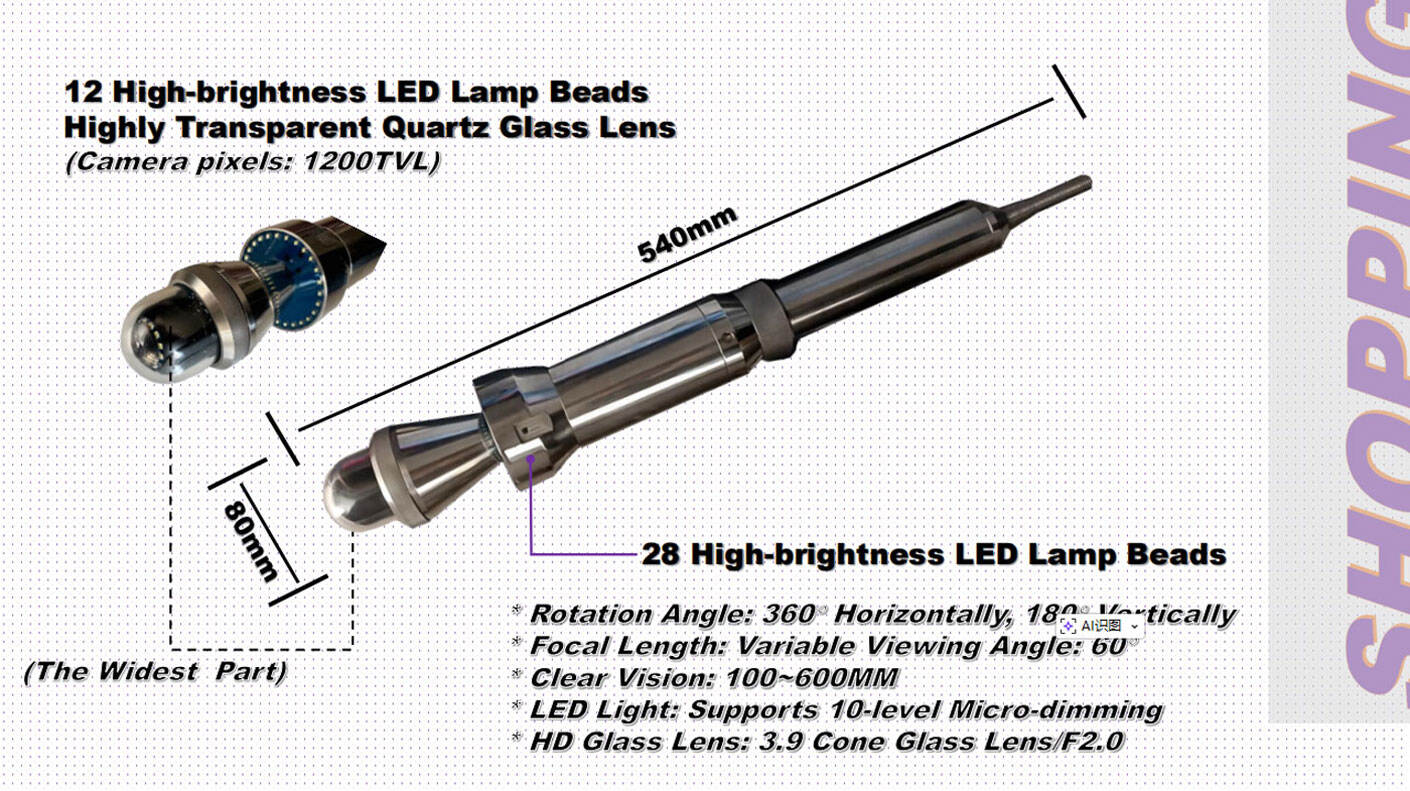

● 12 High-brightness LED Lamp Beads - Highly Transparent Quartz Glass Lens With Camera pixels: 1200TVL. Secondary waterproof design, even if the cable is worn through the skin, it will not affect the internal condition of the probe.

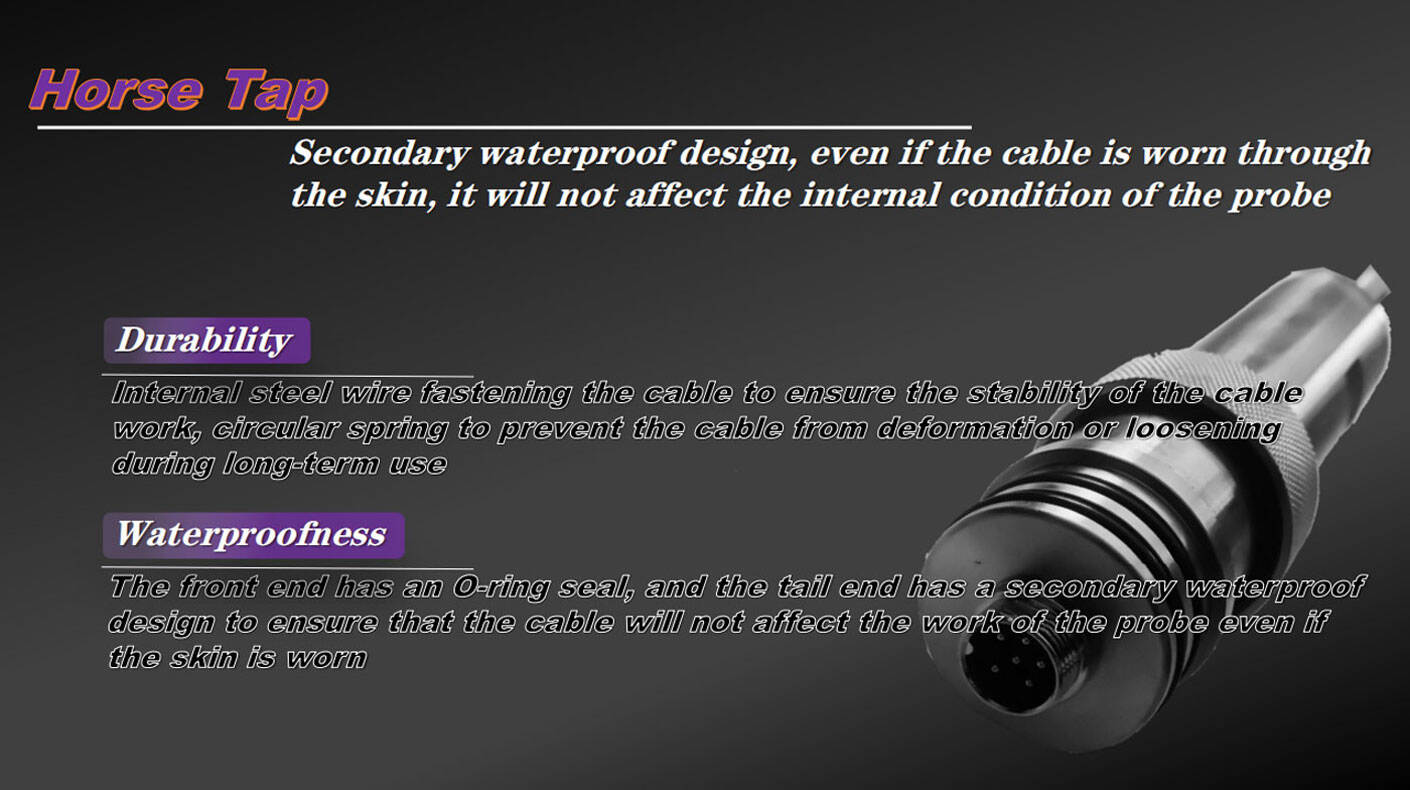

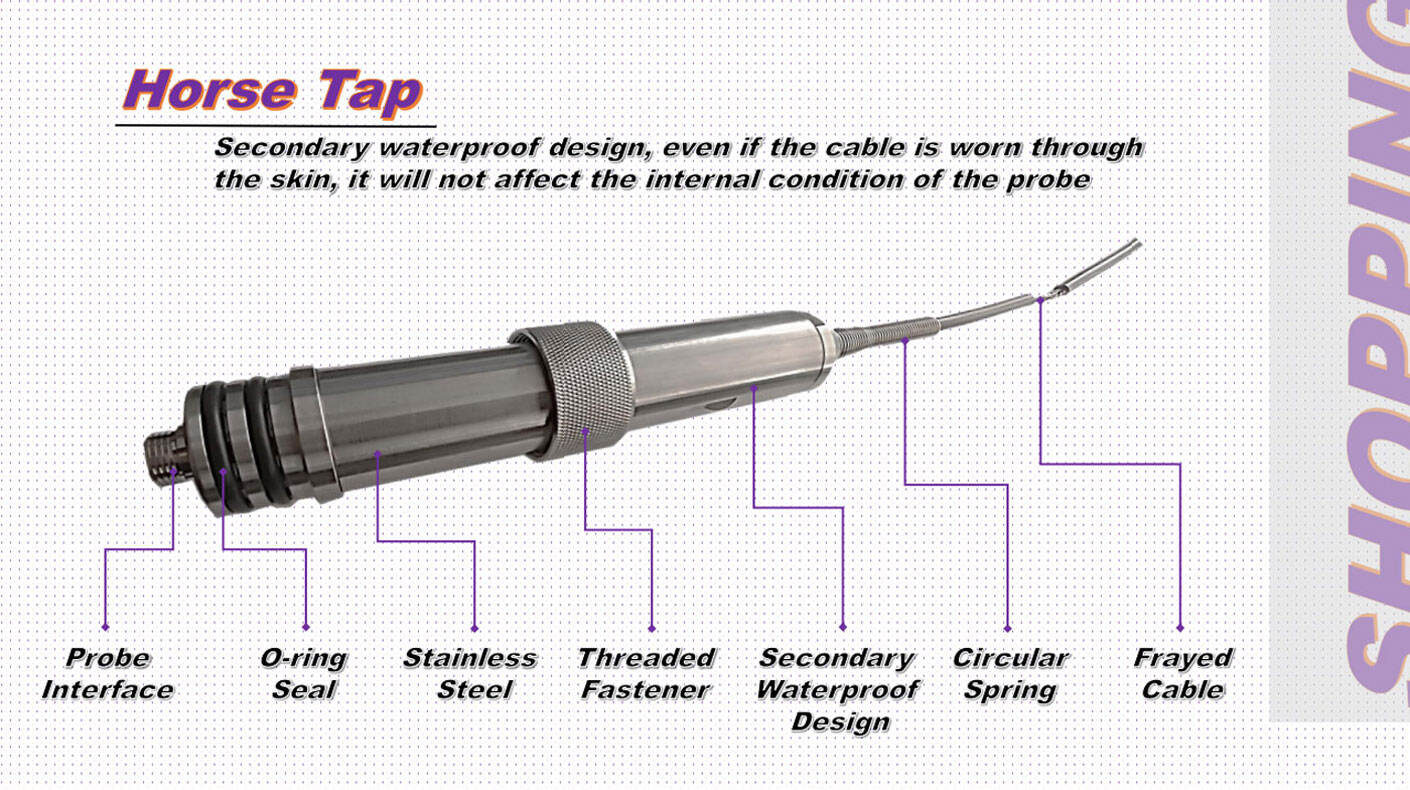

Horse Tap - Secondary waterproof design, even if the cable is worn through the skin, it will not affect the internal condition of the probe
Specifications：
| Product Model | DWSC80 |
| Camera Type | 80MM Spherical Camera |
| Main Control Box Material | ABS |
| Monitor | 12-Inch Industrial Control |
| Monitor Interface | BNC/VGA/HDMI/USB |
| Winch Type | Electricial |
| Cable | Light and Heat Resistant Material, 8mm with Steel Wire |
| Camera pixels | 1200TVL |
| LED | 28 High-brightness LED Lamp Beads |
| HD Glass Lens | 3.9 Cone Glass Lens/F2.0 |
| Rotation Angle | 360° Horizontally, 180° Vertically |
