9inch Sewer Camera with 512Hz Sonde+Self-leveling function and WIFI Pipeline Plumpling Inspection
Pipe Camera Supplier 9inch HD Screen 23MM Camera Head Drain Camera Waterproof IP68 1500mAh Battery Supports 6-9Hours
- Overview
- Recommended Products

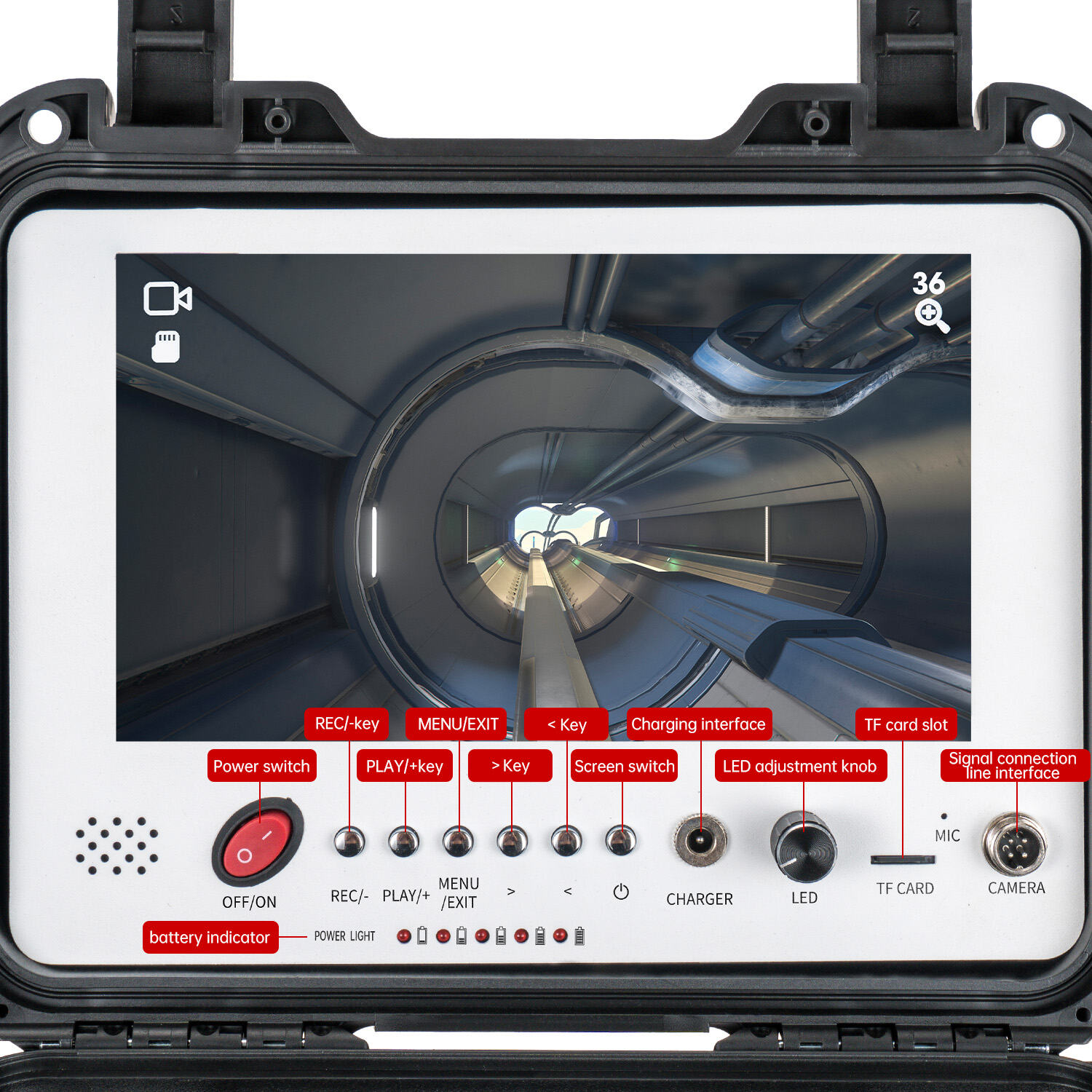

- 1920×1080 Full HD resolution with 450 nits brightness
- Foldable sunshade + anti-glare coating for perfect outdoor visibility
- Capacitive touch + physical buttons (works with wet or gloved hands)
- Automatic self-leveling – image always stays upright regardless of cable rotation
- Integrated 512Hz transmitter sonde (compatible with Ridgid, Vivax, Leica, Pipehorn, etc.)
- Pinpoint exact location and depth underground from the surface
- Sapphire glass lens + 12 ultra-bright adjustable LEDs
- Built-in WiFi hotspot – no internet required
- Live 1080P video feed to iOS/Android phones & tablets up to 30 meters away
- Customers can watch the inspection in real time on their own device
- Remote snapshot & recording control from the app
- Camera head, cable, and connectors are fully submersible (IP68 tested to 20m depth)
- Designed for the harshest sewer and drainage environments
- High-density 1500mAh × 6-cell lithium pack (total 9000mAh equivalent)
- Smart power management delivers genuine 6–9 hours runtime (real-world tested with LEDs on medium brightness and recording)

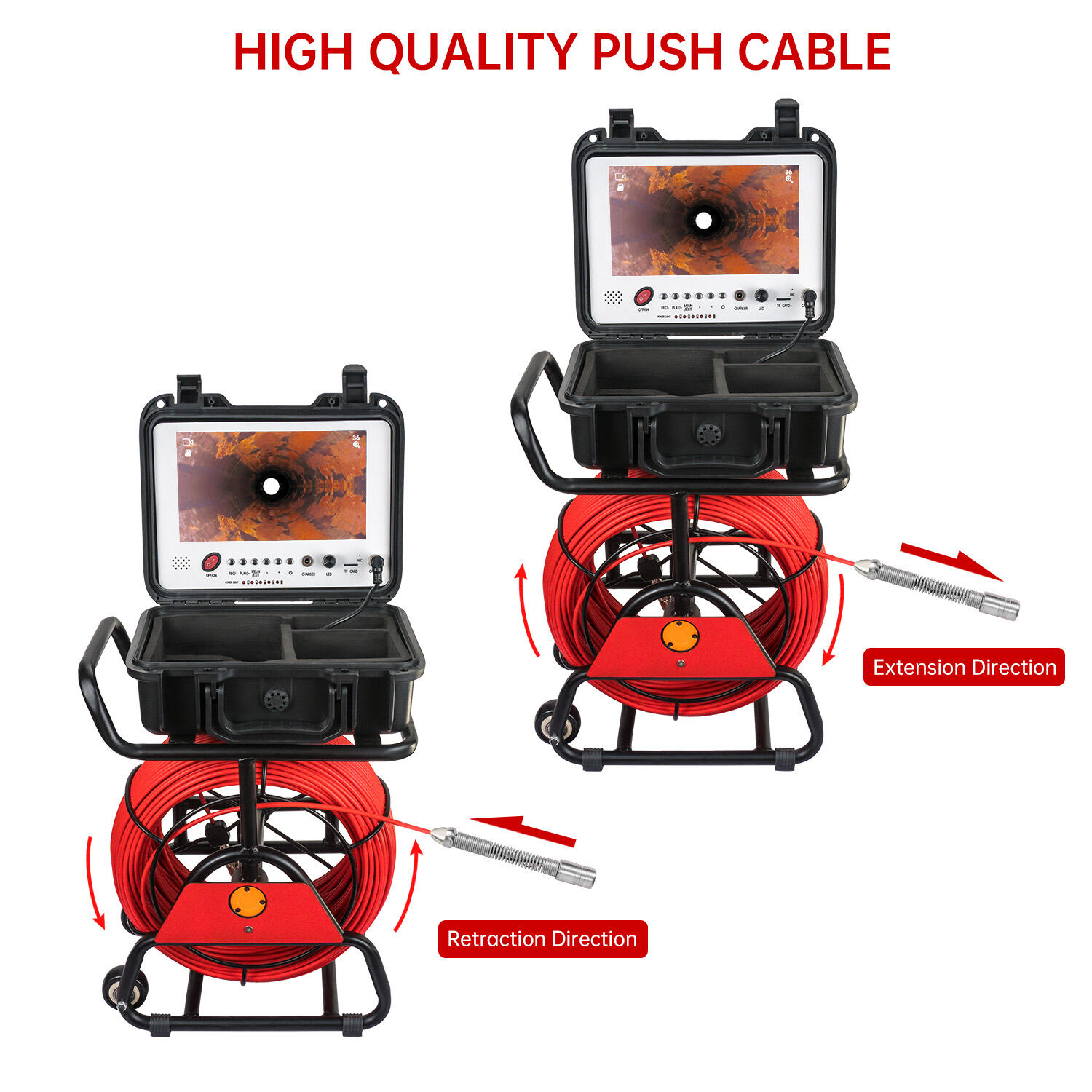

- Ultra-flexible fiberglass construction
- Standard lengths: 10-50m (custom lengths available)
- Easily navigates multiple 90° bends in 1½″–8″ pipes
- CE certified for safety and electromagnetic compatibility (Europe & global markets)
- RoHS compliant – completely free of lead, mercury, cadmium and other hazardous substances
- Official certificates provided with every shipment
- Custom startup logo, language, cable color, packaging
- Add meter counter, on-screen text writer, 16GB DVR, or 33kHz sonde
- How far can the 512Hz sonde be located from the surface?
In normal soil conditions, the built-in 512Hz sonde can be detected up to 4–6 meters (13–20 feet) deep with any standard locator (Ridgid NaviTrack, Vivax vLoc, etc.). Self-leveling ensures you always see the correct orientation while locating. - Does the WiFi function really work without internet and how useful is it on site?
Yes – the monitor creates its own WiFi hotspot. Your customer or colleague simply connects their phone to it and watches the live 1080P feed instantly. No cellular data needed. Thousands of plumbers use this daily to show clients exactly what’s happening inside the pipe. - Is the 6–9 hour battery claim realistic in real-world use?
Absolutely. The high-density lithium pack (equivalent to ~9000mAh) is specifically engineered for this model. With LEDs on medium brightness and occasional recording, users consistently achieve 7–9 hours on a single charge – far longer than most 7-inch competitors. - Are you the actual factory and do you provide CE/RoHS certificates?
Yes – we are the original manufacturer founded in 2012 with our own 15,000㎡ factory. Every unit ships with official CE and RoHS certificates (scanned copies available upfront). This makes customs clearance and resale in Europe, USA, Canada, Australia completely smooth. - What OEM/ODM options do you offer for branding?
Full customization: custom boot logo, startup language, colored cables, private-label carrying case & gift box, pre-installed company info, meter counter addition, built-in 16GB DVR, etc. MOQ for full private labeling starts at only 50 units with highly competitive factory-direct pricing.
Professional 9-Inch 512Hz Sonde & Self-Leveling Sewer CameraFactory Direct Since 2012 – Full OEM & ODM SupportedWe are an original inspection camera manufacturer established in 2012 with 13+ years of experience serving 1,000+ brands worldwide.

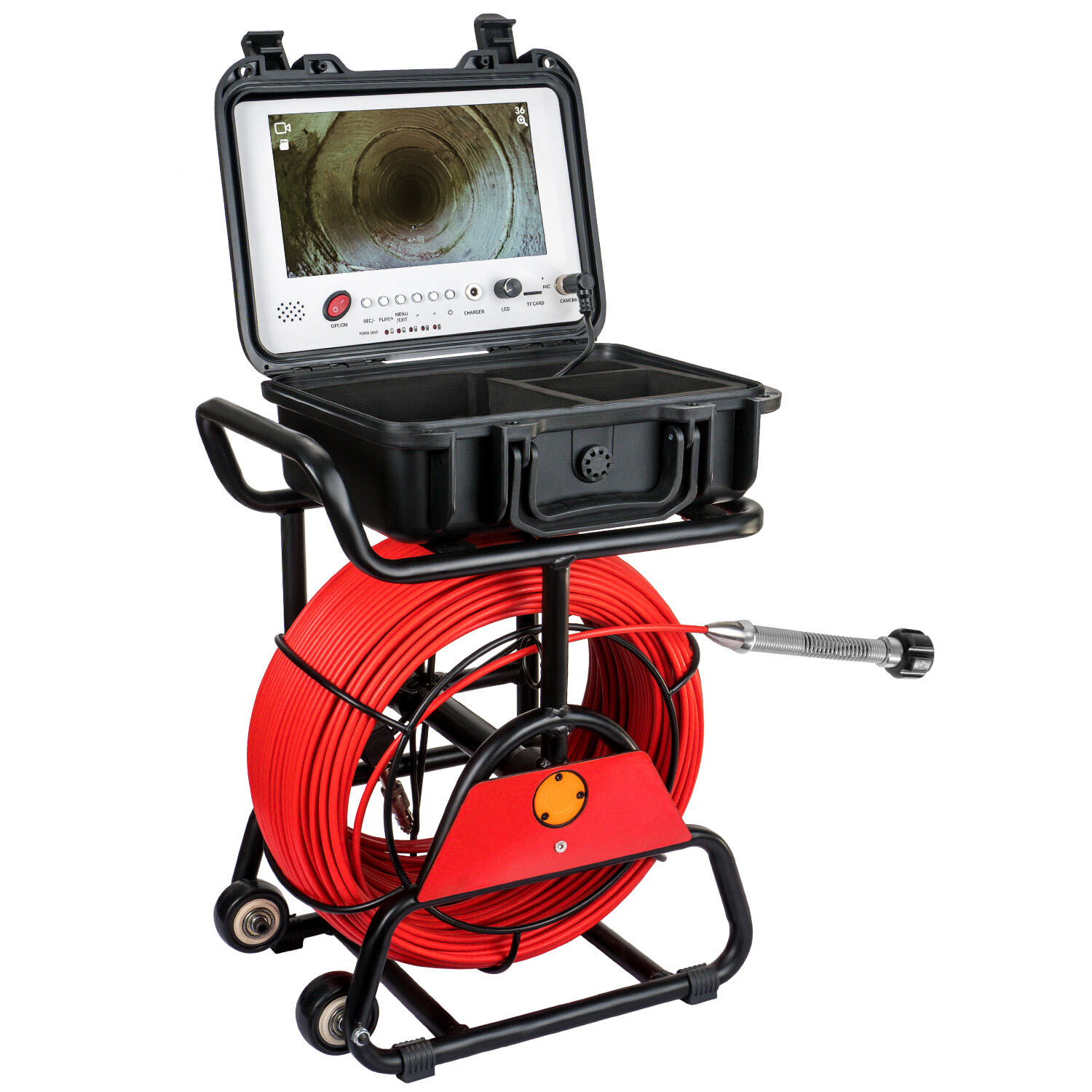

This premium 9-inch sewer camera and pipe camera combines a large HD screen, built-in 512Hz sonde + self-leveling camera head, WiFi live streaming, and true IP68 waterproof construction. Powered by a high-capacity battery that delivers 6–9 hours of continuous use, it is the ultimate professional tool for plumbers, drain cleaners, municipalities, and contractors who need to locate, inspect, and document underground pipelines quickly and accurately.Flagship Features That Set This Sewer Camera Apart1. Bright 9-Inch 1080P HD IPS Touch Screen

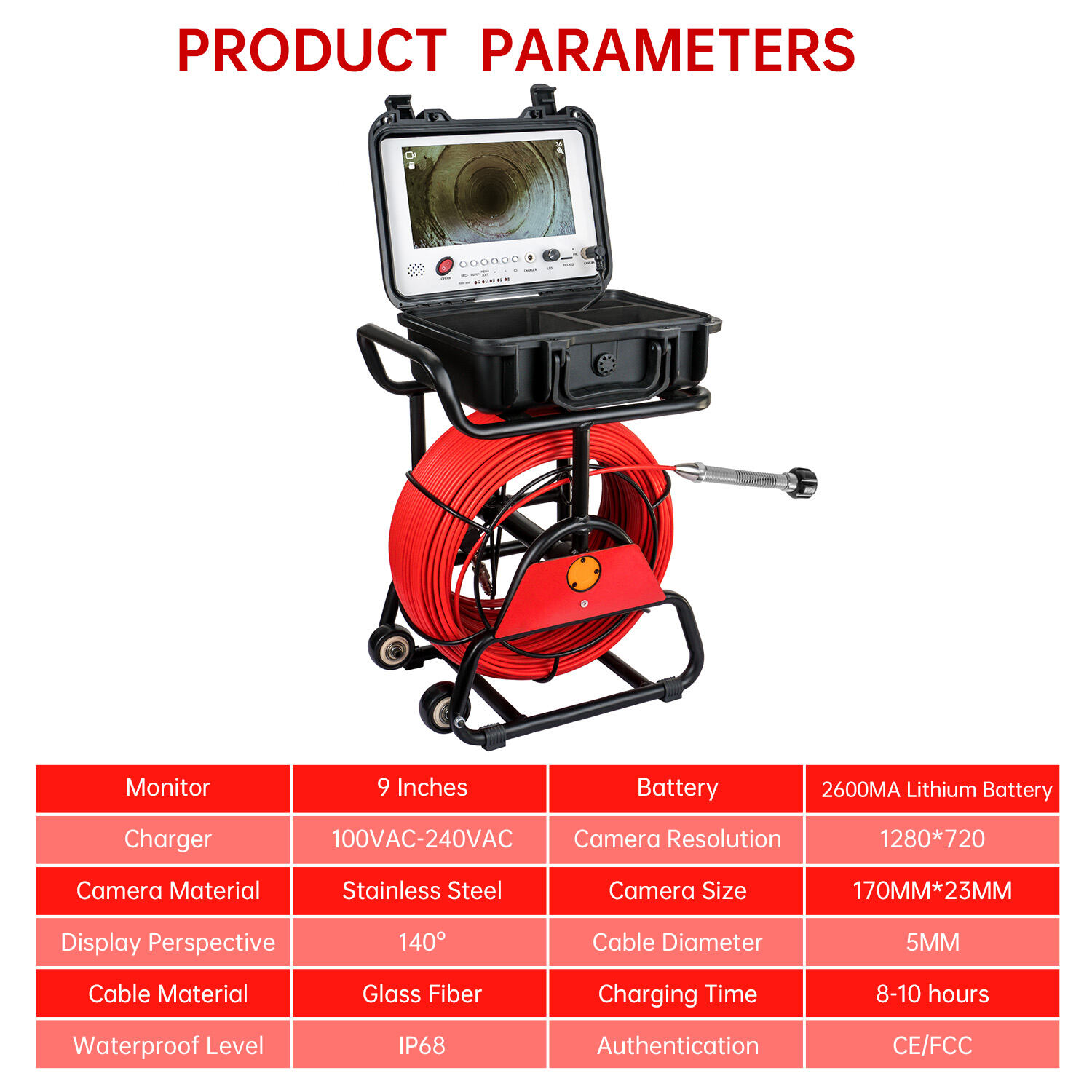

Feature |
Specification |
|---|---|
Screen |
9″ IPS 1920×1080 Full HD, 450 nits, capacitive touch + physical buttons |
Camera Head |
23mm stainless steel, self-leveling, 1080P sensor, built-in 512Hz sonde |
Lighting |
12 high-intensity LEDs, 10-level adjustable |
Sonde |
512Hz (standard) – 33kHz optional |
Cable |
5mm fiberglass push rod –10-50m options |
Waterproof |
IP68 camera head & cable, IP68 monitor box |
WiFi |
Built-in hotspot + free iOS/Android app |
Battery |
High-capacity lithium pack – 6–9 hours continuous runtime |
Recording |
Video & photo storage via microSD slot (card optional) |
Certifications |
CE, RoHS, FCC, IP68 |

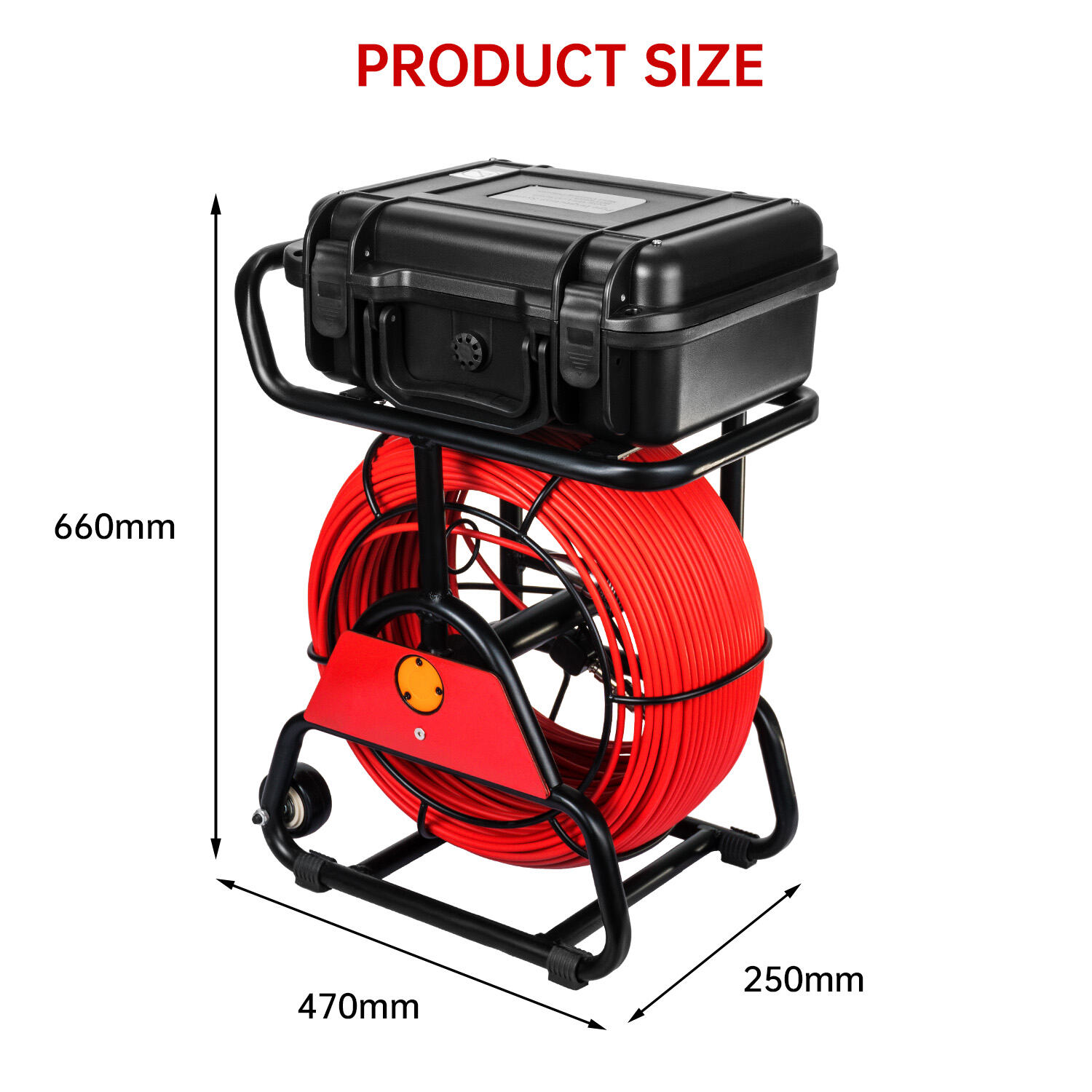

Weight |
≈4.8kg (20m version) |

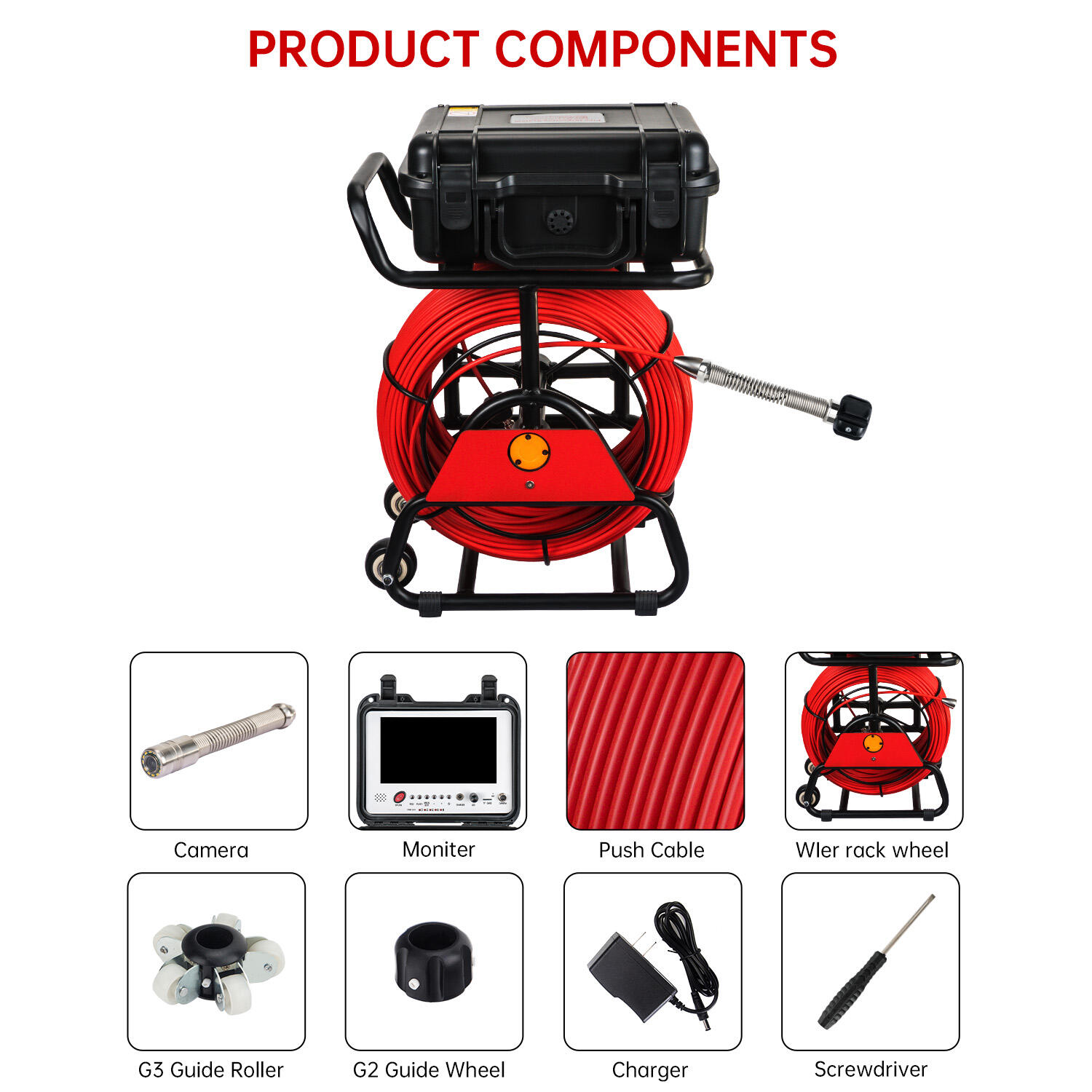

Included Accessories |
Centering skids (2 sizes), USB charger, heavy-duty waterproof carrying case |
Frequently Asked Questions (Q&A)
Contact us today for wholesale quotes, free branding mockups, or evaluation units!
Your reliable factory partner since 2012.
