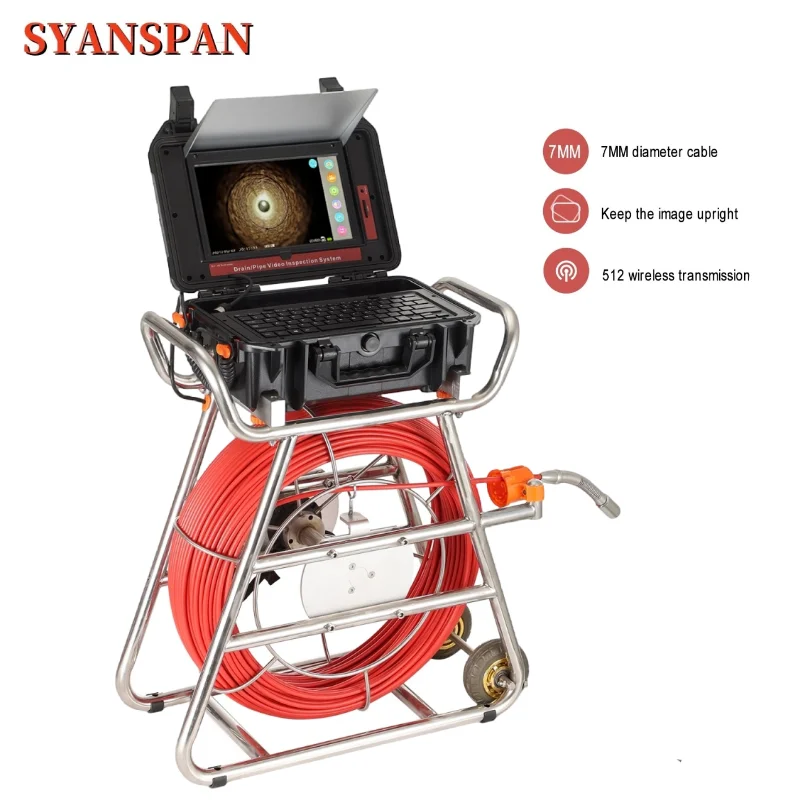

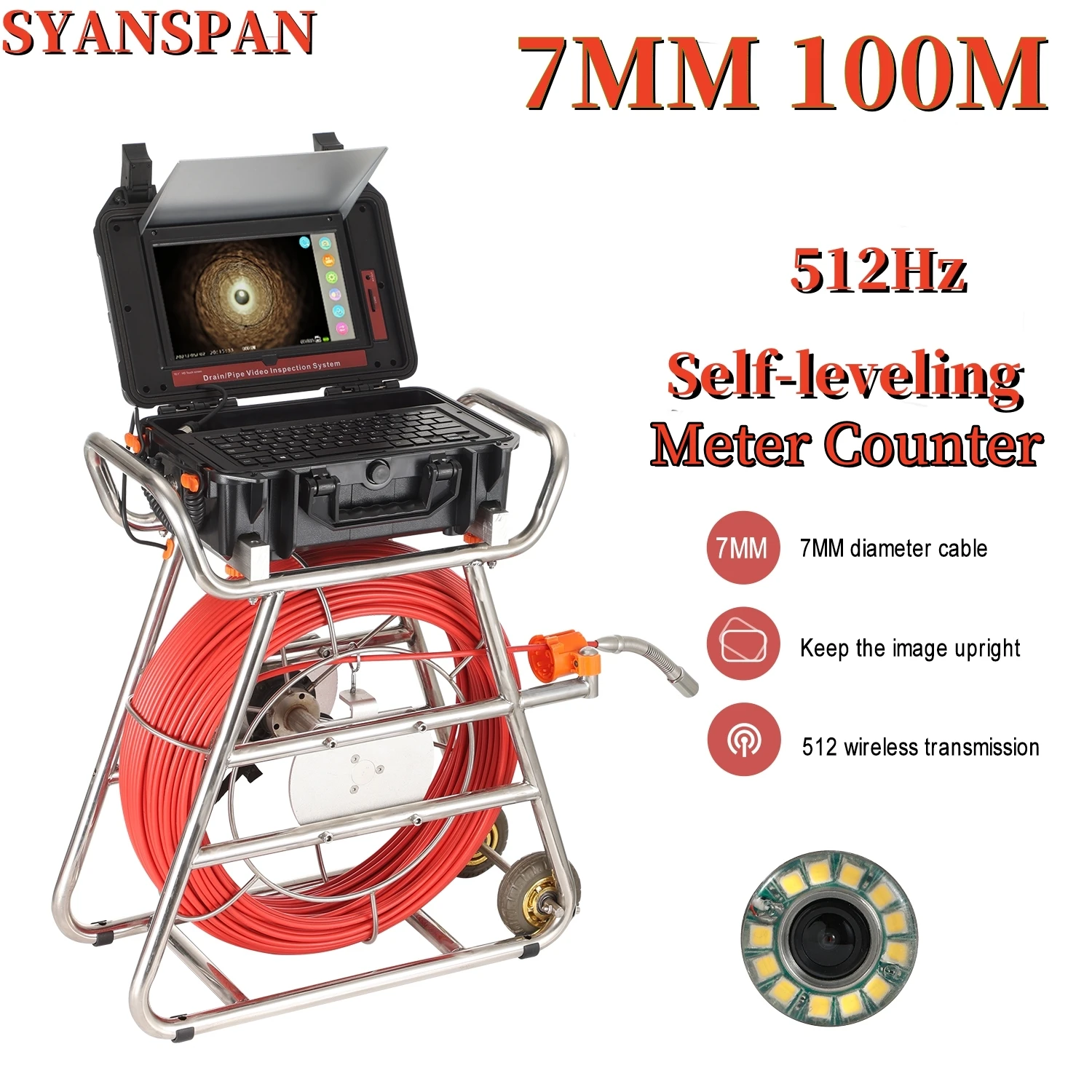

Sewer Camera Self-leveling&512HZ Sonde/Transmission 7MM 100M Red Cable Sewer Camera 16GB Card Video& Audio Recording
- Overview
- Recommended Products
- Length Options: Available in 20m, 30m, 50m, 80m, or 100m (33ft to 328ft), with the 100m (328ft) option ideal for extensive pipeline inspections.
- Diameter: 0.28-inch (7mm) thickened semi-rigid cable for optimal balance of flexibility and strength.
- Material: Constructed from high-strength fiberglass, engineered to be anti-corrosion, cold-resistant, and highly tensile, ensuring long-term durability.
- Flexibility: Features a 173mm spring design, allowing the cable to navigate 90° bends in pipes as small as 45mm without snagging or damage.
- Durability: Built to withstand harsh conditions, including dark, damp, and abrasive environments, resisting breakage and tearing for reliable performance.
- Weight: Base weight of 18kg for a 20m cable, with an additional 0.5kg for every 10m of cable length (e.g., 22kg for 100m).
- Diameter: Compact 0.9-inch (23mm) camera head, ideal for navigating narrow pipes.
- Resolution: 1080P HD for crystal-clear, vivid imagery, capturing every detail of the pipe interior.
- Material: Crafted from #304 stainless steel with a sapphire glass lens, offering IP68 waterproofing for submersion in water and resistance to scratches.
- Viewing Angle: 140° wide-angle view for comprehensive coverage of pipe interiors.
- Zoom: 3x digital zoom for magnifying critical areas, ensuring no detail is missed during inspections.
- Lighting: Equipped with 12 adjustable LED lights offering 3 brightness levels to adapt to various lighting conditions, from pitch-black sewers to dimly lit ducts.
- Self-Leveling: Automatically adjusts to maintain upright images, providing accurate orientation of blockages, cracks, or obstacles, even as the camera rotates.
- 512Hz Sonde Transmitter: Integrated into the camera head for precise underground tracking when paired with a compatible locator (not included), allowing you to pinpoint the camera’s exact location within the pipe.

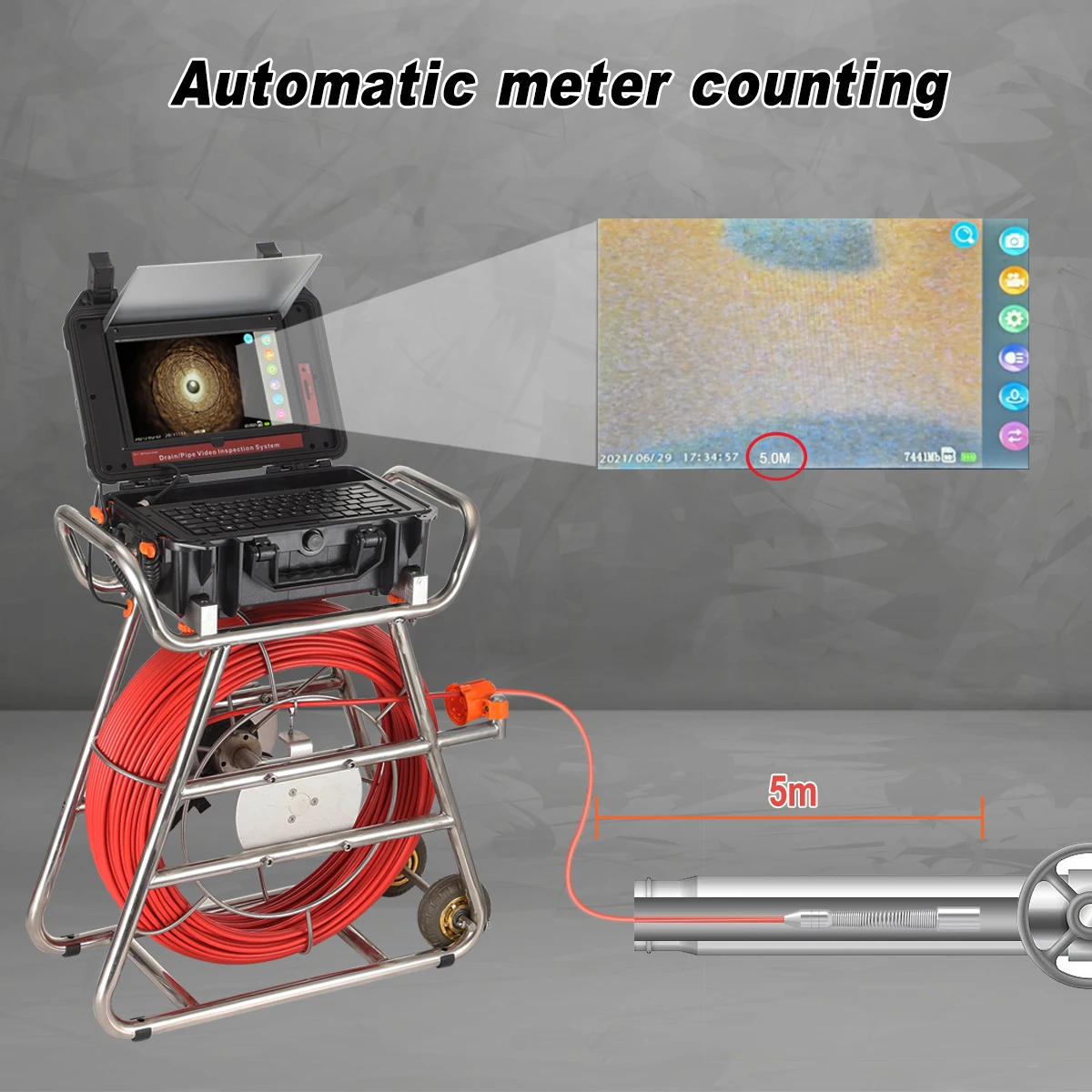

- On-Screen Distance Counter: Displays the cable length deployed in real-time, enabling quick and accurate identification of blockage or damage locations.
- Display: 10.1-inch 1080P HD color touchscreen for intuitive navigation and vivid visuals.
-
Features:
- Video Recording & Photo Capture: Record inspections or take snapshots for documentation.
- Audio Playback: Review audio annotations via computer or headphones (headphones not included).
- Text Annotation: Add notes directly on-screen to document findings, such as pipe conditions or specific issues.
- Sun-Visor: Ensures clear screen visibility in bright outdoor conditions.
- 3x Zoom Image Enlarger: Enhances recorded or live images for closer inspection of details.
- On-Screen Metrics: Displays time, date, and cable length for comprehensive record-keeping.
- Storage: Includes a 16GB microSD card for storing photos, videos, and audio, with ample capacity for extended inspections.
-
Pipe Compatibility:
- Straight Pipes: 0.99–5.90 in (25–150 mm).
- Right-Angle Pipes: 1.97–5.90 in (50–150 mm).
- Navigates 90° bends in pipes as small as 45mm.
- Portability: Features a sturdy stainless steel frame with auxiliary wheels for easy transport across job sites. The included ABS carrying case protects the system during storage and transit.
- Power Supply: Powered by a 4500mAh rechargeable lithium battery, offering 6–8 hours of continuous operation, ideal for full-day inspections.
- Charger: Universal AC100V-240V / DC12.6V 1000mA charger ensures compatibility with various power sources.
- 1 x 23mm Camera with 512Hz Sonde & Self-Leveling Function
- 1 x 10.1-Inch HD Touchscreen Monitor with Sun-Visor
- 1 x Fiberglass Cable (select length: 20m/30m/50m/80m/100m)
- 1 x ABS Case
- 1 x Charger (AC100V-240V / DC12.6V 1000mA)
- 1 x Connecting Line
- 1 x Screwdriver
- 2 x Camera Protective Cases
- 1 x 16GB microSD Card
-
Camera:
- Diameter: 23mm
- Resolution: 1080P HD
- Material: #304 stainless steel with sapphire glass lens
- Viewing Angle: 140°
- Zoom: 3x digital zoom
- Waterproof Rating: IP68
- Lighting: 12 adjustable LEDs with 3 brightness levels
-
Monitor:
- Size: 10.1-inch HD1080P touchscreen
- Features: Sun-visor, time/date/meter counter, text annotation, 3x zoom image enlarger
-
Cable:
- Material: 7mm fiberglass rod
- Length Options: 20m, 30m, 50m, 80m, 100m (33ft–328ft)
- Flexibility: Navigates 90° bends in 45mm pipes
- Weight: 18kg for 20m; +0.5kg per additional 10m (e.g., 22kg for 100m)
-
Power:
- Battery: 4500mAh (6–8 hours continuous use)
- Charger: AC100V-240V / DC12.6V 1000mA
-
Weight:
- Net Weight (20m cable): 12kg
- Package Weight (20m cable): 36kg
- Net Weight (100m cable): 18kg
- Package Weight (100m cable): 36kg (estimated)
- Versatile Applications: Ideal for inspecting sewer lines, drainage systems, HVAC ducts, chimneys, and industrial pipelines, making it a go-to tool for diverse industries.
- User-Friendly Interface: The 10.1-inch touchscreen simplifies operation, with features like video recording, photo capture, text annotation, and zoom for detailed analysis.
- Rugged and Reliable: The corrosion-resistant fiberglass cable, IP68 waterproof camera, and durable stainless steel frame ensure long-lasting performance in harsh environments.
- Extended Battery Life: The 4500mAh battery supports 6–8 hours of continuous use, perfect for demanding, all-day inspection tasks.
- Precision Diagnostics: The combination of a self-leveling camera, 512Hz sonde transmitter, and real-time distance counter ensures accurate identification and location of pipe issues.
- Plumbing: Diagnose blockages, leaks, or corrosion in residential and commercial sewer and drain systems.
- Municipal Inspections: Inspect and maintain large-scale sewer lines, stormwater drains, and municipal pipelines.
- Industrial Use: Examine HVAC ducts, chimneys, or industrial piping for structural integrity and obstructions.
- Construction & Contracting: Verify pipeline conditions during construction, renovation, or infrastructure projects.
- 3x Zoom: Confirmed as a feature of the camera (3x digital zoom) and monitor (3x zoom image enlarger).
- Storage: Unified as a 16GB microSD card (no mention of 32GB SD card).
- Viewing Angle: Standardized to 140°.
- Cable Length: Maximum length set to 100m (no 200m option).
- Weight: Added weight increase of 0.5kg per 10m of cable, with clear examples (e.g., 17kg for 100m).
- Battery Life: Consistently described as 6–8 hours across all sections.
Product Description
Specification
item |
value |
Place of Origin |
China ShenZhen |
Application |
Outdoor, Indoor, Municipal Pipe |
Monitor Size |
10.1" touch Screen Monitor DVR |
Cable length |
Dia.7mm; 20-100M Optional |
Battery 4500mAh |
Working time approx 6-9 hours |
Power Supply |
AC100-240V DC12.6V 1000MA |
Light Source |
12 LED with high white light |
Camera Diameter |
23mm 12 white lights |
Camera viewing angle |
140° |
Camera material |
Stainless steel housing |
Function |
512HZ transmitter + self-leveling |
Storage Temperature |
-20-50° |
Certificate |
CE ROHS FCC |
Waterproof: |
IP68 |
Guarantee |
One Year Warranty life Long Maintenance |
Professional 328FT Industrial Pipe Inspection Camera with Self-Leveling & 512Hz Sonde
Introducing the 16GB FT Industrial Pipe Inspection Camera, a state-of-the-art tool designed for professional plumbers, contractors, inspectors, engineers, and municipal workers tackling medium to large pipeline inspection projects. This advanced sewer camera system combines cutting-edge technology with rugged durability, featuring a 7mm semi-rigid fiberglass cable, a self-leveling 1080P HD camera with 3x digital zoom, and a 10.1-inch HD touchscreen monitor. Equipped with a 512Hz sonde transmitter for precise underground tracking, real-time distance measurement, and an IP68 waterproof sapphire lens, this camera ensures accurate diagnostics in even the most challenging environments, such as dark, damp, or complex piping systems. Whether you're inspecting sewer lines, HVAC ducts, or industrial pipelines, this tool delivers unmatched performance and reliability.
Key FeaturesRobust Semi-Rigid Cable
Why Choose Our Pipe Inspection Camera?
Frequently Asked Questions (Q&A)Q1: What types of pipes can this camera inspect?
A: The camera is compatible with straight pipes (0.99–5.90 in / 25–150 mm) and right-angle pipes (1.97–5.90 in / 50–150 mm). Its 173mm spring allows it to navigate 90° bends in pipes as small as 45mm, making it versatile for various pipe configurations.Q2: Can the camera function in dark or wet environments?
A: Yes, the camera is IP68 waterproof, allowing it to operate fully submerged in water. It also features 12 adjustable LED lights with 3 brightness levels, ensuring clear visuals in dark or low-light conditions, such as sewers or damp pipelines.Q3: How does the 512Hz sonde transmitter assist in inspections?
A: The built-in 512Hz sonde transmitter emits a signal that can be detected by a compatible locator (not included), allowing you to precisely track the camera’s position underground, which is critical for locating blockages or damage in buried pipes.Q4: Can I record inspections with this camera?
A: Yes, the system supports video recording and photo capture, stored on the included 16GB microSD card. You can also add text annotations to document findings and play back audio via a computer or headphones (headphones not included).Q5: How long does the battery last?
A: The 4500mAh rechargeable lithium battery provides 6–8 hours of continuous operation, depending on factors like LED brightness and recording usage, making it suitable for extended fieldwork.Q6: Does the camera support zoom functionality?
A: Yes, the camera features a 3x digital zoom to capture detailed images of pipe interiors. Additionally, the 10.1-inch monitor supports a 3x zoom image enlarger for enhanced viewing of live or recorded footage.Q7: What is the self-leveling function, and how does it help?
A: The self-leveling camera automatically adjusts to keep images upright, regardless of the camera’s rotation within the pipe. This ensures accurate orientation of blockages, cracks, or other obstacles, simplifying diagnosis and reducing confusion during inspections.Q8: What are the available cable lengths, and how does length affect weight?
A: Cable lengths are available in 20m, 30m, 50m, 80m, and 100m (33ft–328ft). The base weight is 12kg for a 20m cable, with an additional 0.5kg for every 10m of cable (e.g., 17kg for 100m). The maximum length supported is 100m.Q9: Is the system easy to transport?
A: Yes, the system features a robust stainless steel frame with auxiliary wheels for easy mobility across job sites. It comes with a durable ABS carrying case for secure storage and transport.Q10: What is included in the package?
A: The package includes a 23mm camera with 512Hz sonde and self-leveling function, a 10.1-inch HD touchscreen monitor with sun-visor, a fiberglass cable (20m/30m/50m/80m/100m), an ABS carrying case, a charger, a connecting line, a screwdriver, two camera protective cases, and a 16GB microSD card.
Applications
Order NowTransform your pipeline inspection process with the 328FT Industrial Pipe Inspection Camera. For pricing details or to place an order, contact us at [insert contact link] or visit [insert website link] today!
Consistency NotesThis updated description incorporates the provided clarifications:
Introducing the 16GB FT Industrial Pipe Inspection Camera, a state-of-the-art tool designed for professional plumbers, contractors, inspectors, engineers, and municipal workers tackling medium to large pipeline inspection projects. This advanced sewer camera system combines cutting-edge technology with rugged durability, featuring a 7mm semi-rigid fiberglass cable, a self-leveling 1080P HD camera with 3x digital zoom, and a 10.1-inch HD touchscreen monitor. Equipped with a 512Hz sonde transmitter for precise underground tracking, real-time distance measurement, and an IP68 waterproof sapphire lens, this camera ensures accurate diagnostics in even the most challenging environments, such as dark, damp, or complex piping systems. Whether you're inspecting sewer lines, HVAC ducts, or industrial pipelines, this tool delivers unmatched performance and reliability.
Key FeaturesRobust Semi-Rigid Cable
Why Choose Our Pipe Inspection Camera?
Frequently Asked Questions (Q&A)Q1: What types of pipes can this camera inspect?
A: The camera is compatible with straight pipes (0.99–5.90 in / 25–150 mm) and right-angle pipes (1.97–5.90 in / 50–150 mm). Its 173mm spring allows it to navigate 90° bends in pipes as small as 45mm, making it versatile for various pipe configurations.Q2: Can the camera function in dark or wet environments?
A: Yes, the camera is IP68 waterproof, allowing it to operate fully submerged in water. It also features 12 adjustable LED lights with 3 brightness levels, ensuring clear visuals in dark or low-light conditions, such as sewers or damp pipelines.Q3: How does the 512Hz sonde transmitter assist in inspections?
A: The built-in 512Hz sonde transmitter emits a signal that can be detected by a compatible locator (not included), allowing you to precisely track the camera’s position underground, which is critical for locating blockages or damage in buried pipes.Q4: Can I record inspections with this camera?
A: Yes, the system supports video recording and photo capture, stored on the included 16GB microSD card. You can also add text annotations to document findings and play back audio via a computer or headphones (headphones not included).Q5: How long does the battery last?
A: The 4500mAh rechargeable lithium battery provides 6–8 hours of continuous operation, depending on factors like LED brightness and recording usage, making it suitable for extended fieldwork.Q6: Does the camera support zoom functionality?
A: Yes, the camera features a 3x digital zoom to capture detailed images of pipe interiors. Additionally, the 10.1-inch monitor supports a 3x zoom image enlarger for enhanced viewing of live or recorded footage.Q7: What is the self-leveling function, and how does it help?
A: The self-leveling camera automatically adjusts to keep images upright, regardless of the camera’s rotation within the pipe. This ensures accurate orientation of blockages, cracks, or other obstacles, simplifying diagnosis and reducing confusion during inspections.Q8: What are the available cable lengths, and how does length affect weight?
A: Cable lengths are available in 20m, 30m, 50m, 80m, and 100m (33ft–328ft). The base weight is 12kg for a 20m cable, with an additional 0.5kg for every 10m of cable (e.g., 17kg for 100m). The maximum length supported is 100m.Q9: Is the system easy to transport?
A: Yes, the system features a robust stainless steel frame with auxiliary wheels for easy mobility across job sites. It comes with a durable ABS carrying case for secure storage and transport.Q10: What is included in the package?
A: The package includes a 23mm camera with 512Hz sonde and self-leveling function, a 10.1-inch HD touchscreen monitor with sun-visor, a fiberglass cable (20m/30m/50m/80m/100m), an ABS carrying case, a charger, a connecting line, a screwdriver, two camera protective cases, and a 16GB microSD card.
Applications
Order NowTransform your pipeline inspection process with the 328FT Industrial Pipe Inspection Camera. For pricing details or to place an order, contact us at [insert contact link] or visit [insert website link] today!
Consistency NotesThis updated description incorporates the provided clarifications:
