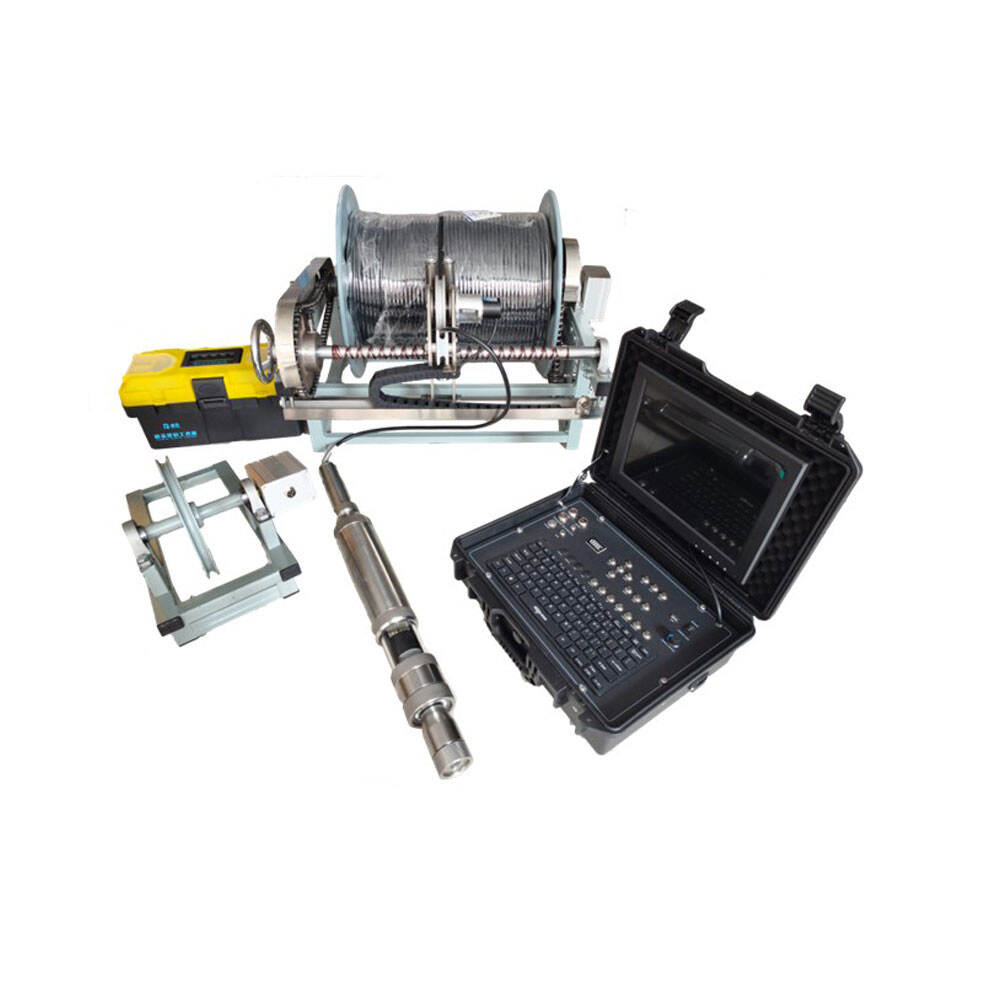

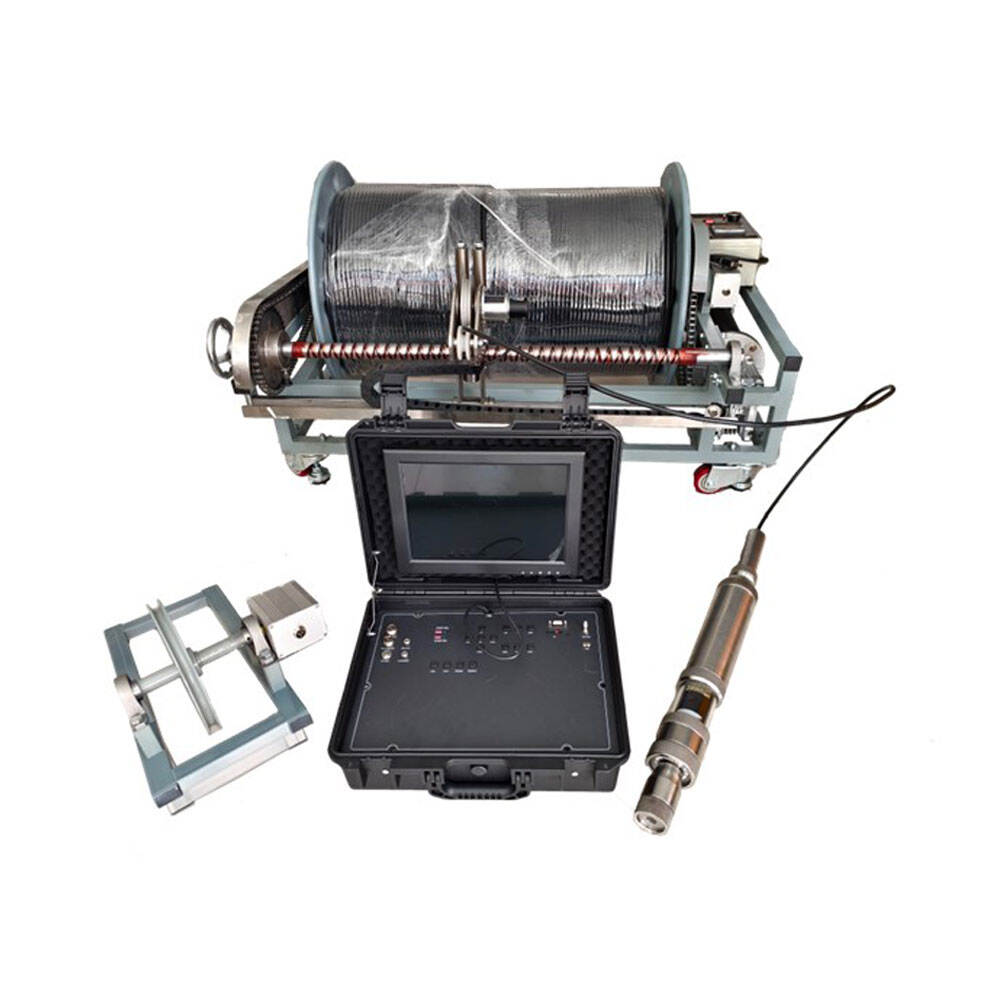

12" Monitor Deep Well Camera 73mm Dual Lens Auto Cable for Well Inspection

Product General Information

Quick Detail:

● Description:
SPRIDRAIN 73mm Dual Cameras with Cable Routing Electric Standard Model - Professional Deep Well Camera for deep well and deep Well inspection，underwater operations, diving exploration.

● Applications:
Deep Well inspection，Oil well, underwater operations, diving exploration, water well

● Specifications:

Competitive Advantage:

1.Manufacturer Supply directly
2.Supply OEM/ODM Service
3.Cable Length Customized. Up to 2000M

Product Description：

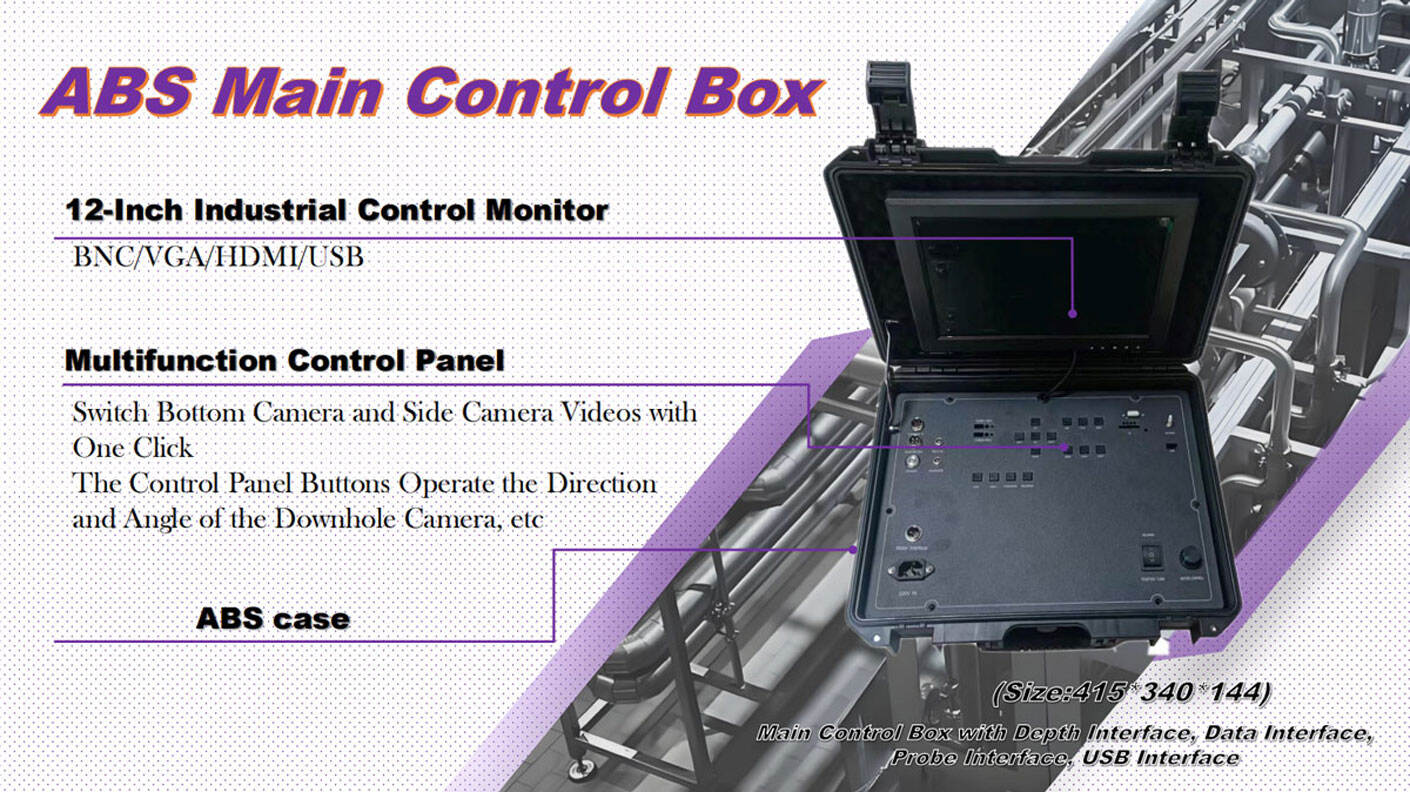

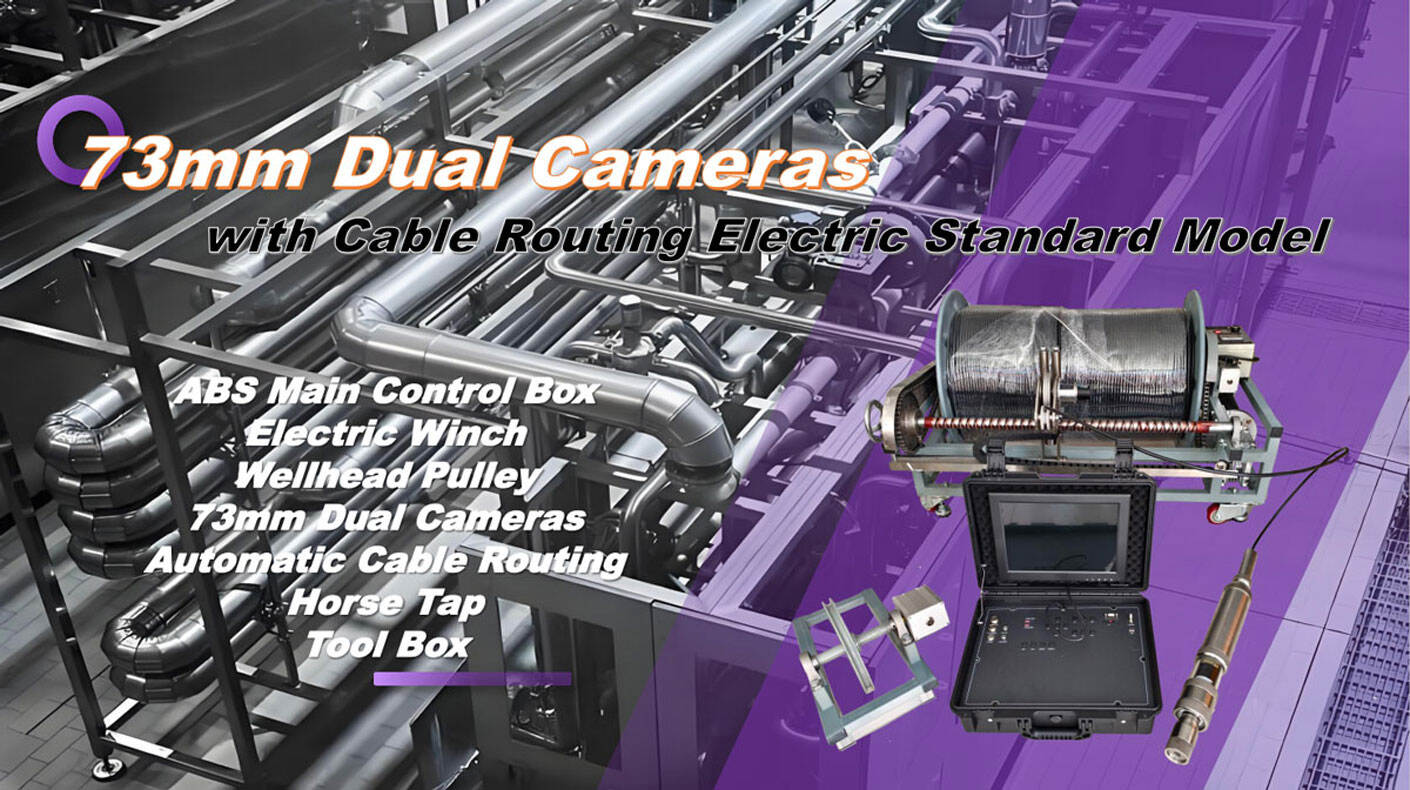

SPRIDRAIN 73mm Dual Cameras with Cable Routing Electric Standard Model - Professional Deep Well Camera. 12-Inch Industrial Control MONITOR support BNC/VGA/HDMI/USB interface. Multifunction Control Panel Switch Bottom Camera And Side Camera Videos With One Click. The Control Panel Buttons Operate the Direction And Angle Of the Downhole camera, etc. Stamping Reinforced Wire Retaining Plate Cable Routing Function. Manual Control of Cable Lift and Speed as below:
1). Forward and Reverse Rotation. Adjustable Turbine Deceleration Function.
2). DC Speed Regulation Motor, Self-locking When Power Off.

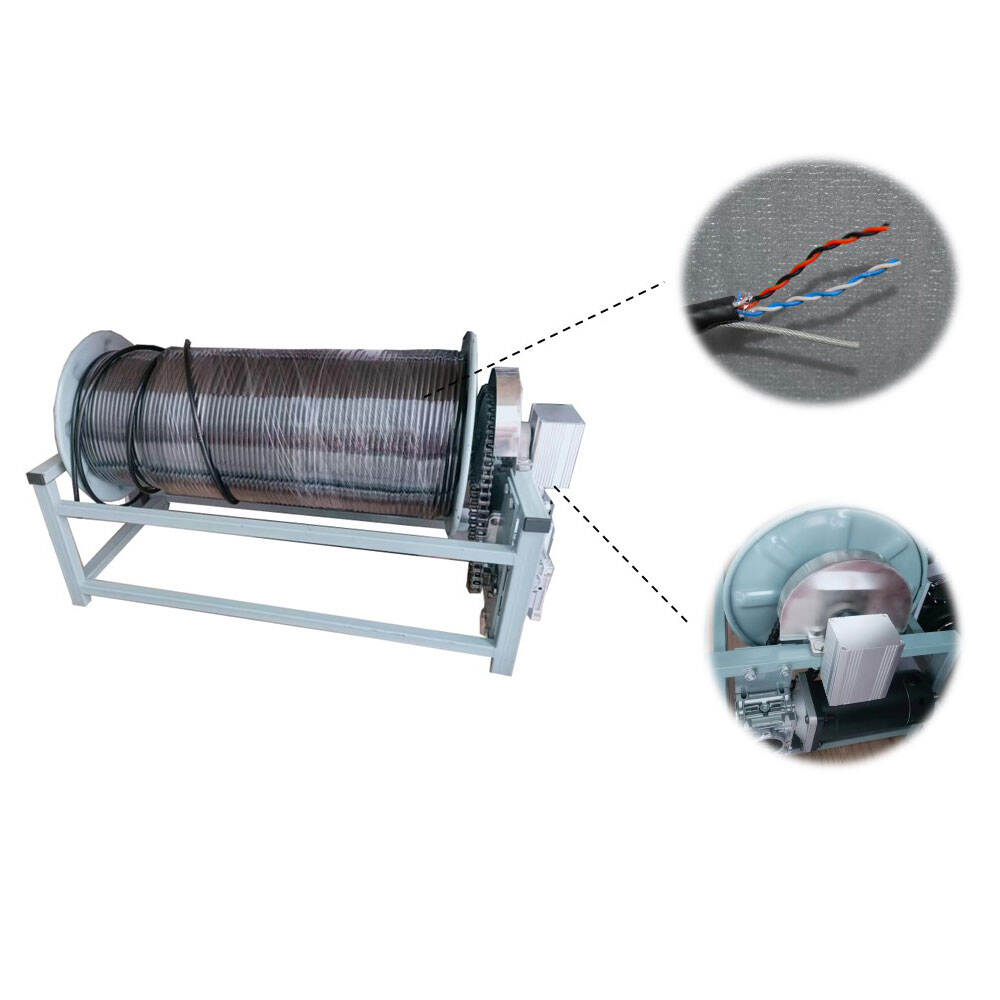

3). Cable: Light and Heat Resistant Material 8mm With Steel Wire. 70 Degrees Temperature Resistance.

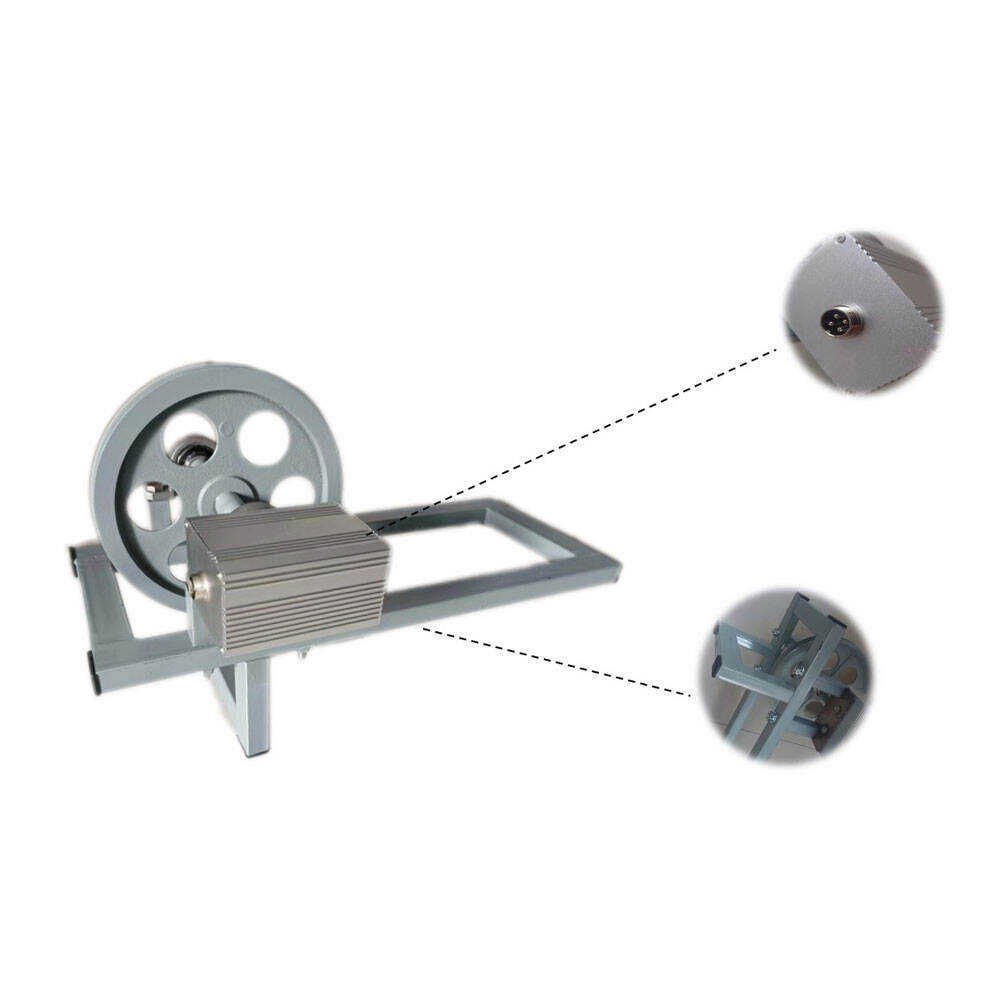

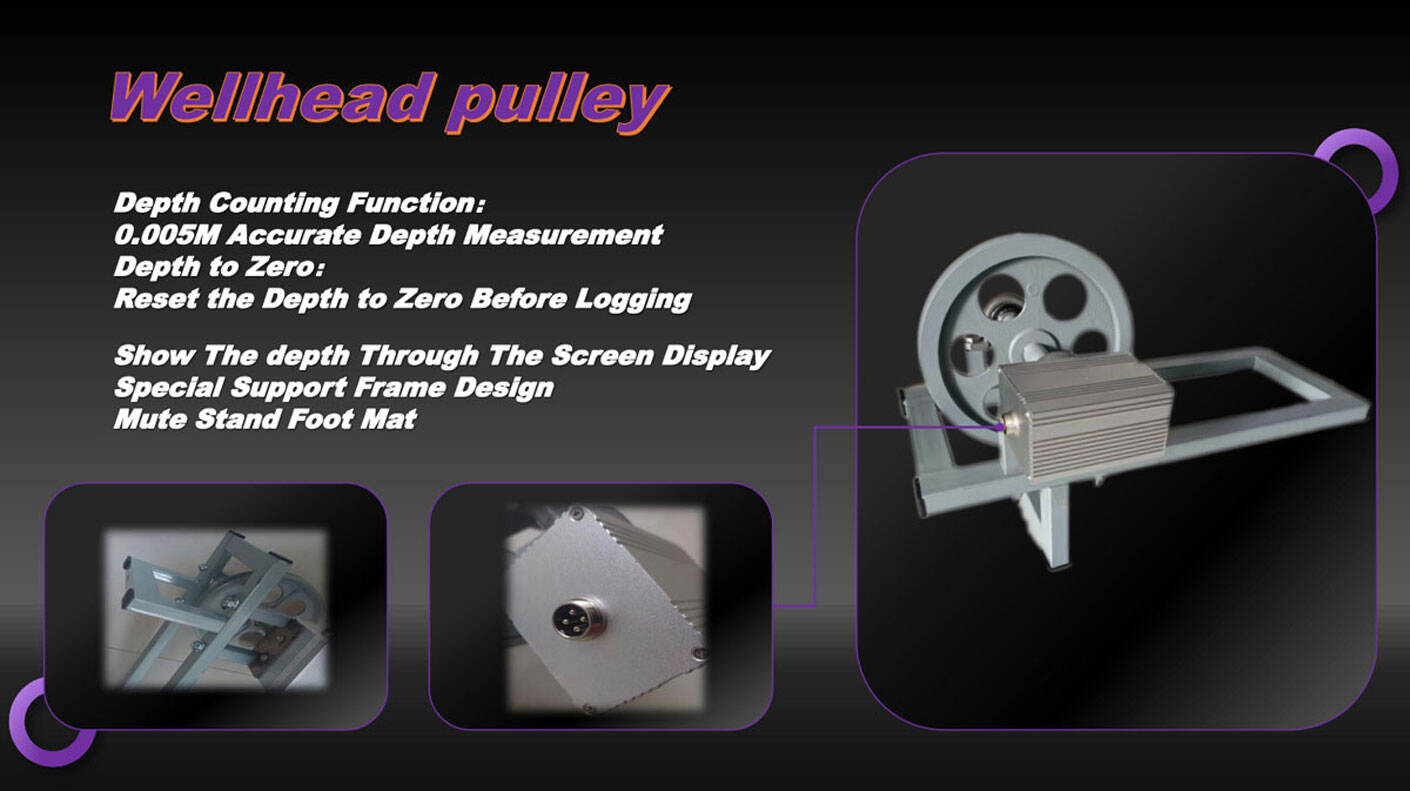

Wellhead Pulley:
● Depth Counting Function: 0.005M Accurate Depth Measurement;
● Depth to Zero: Reset the Depth to Zero Before Logging
Show The Depth Through The Screen Display Mute Stand Foot Mat.

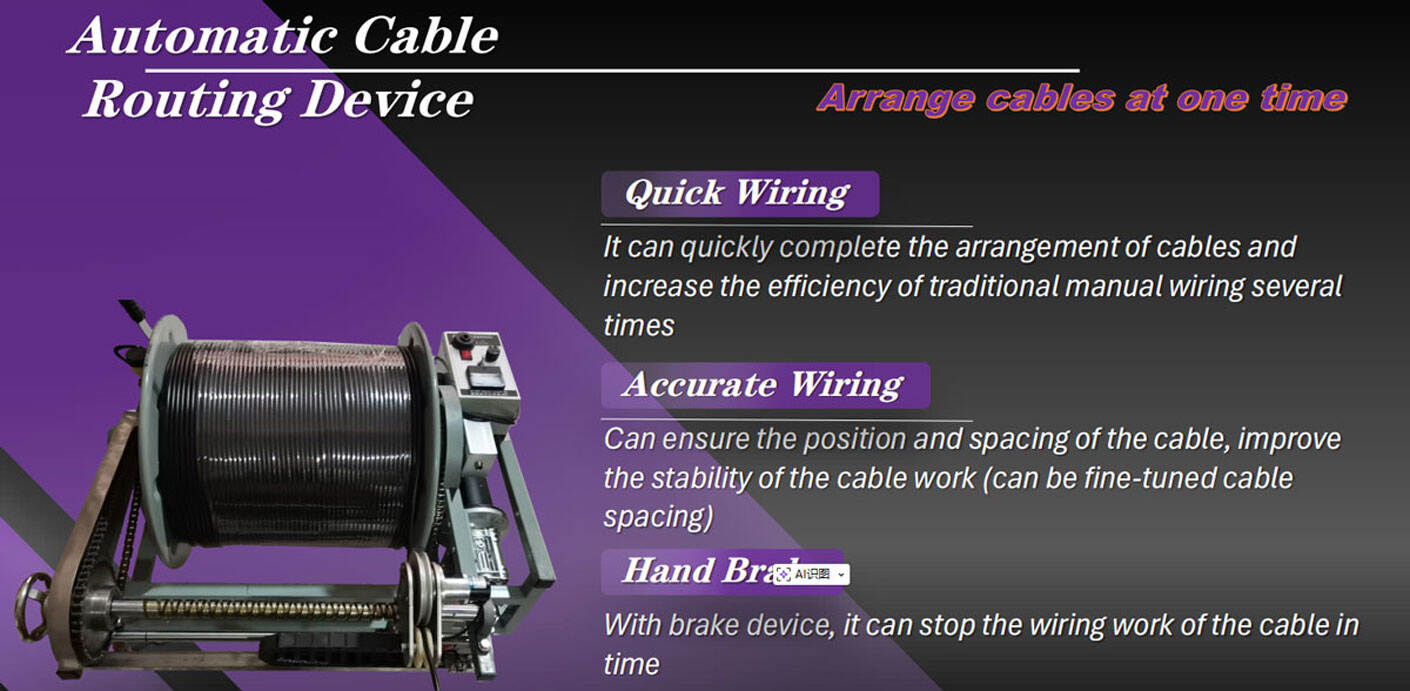

Automatic Cable With Routing Device:
● Quick Wiring - It can quickly complete the arrangement of cables and increase the efficiency of traditional manual wiring several times.
● Accurate Wiring - Can ensure the position and spacing of the cable, improve the stability of the cable work (can be fine-tuned cable spacing)
● Hand Brake - With brake device, it can stop the wiring work of the cable in time

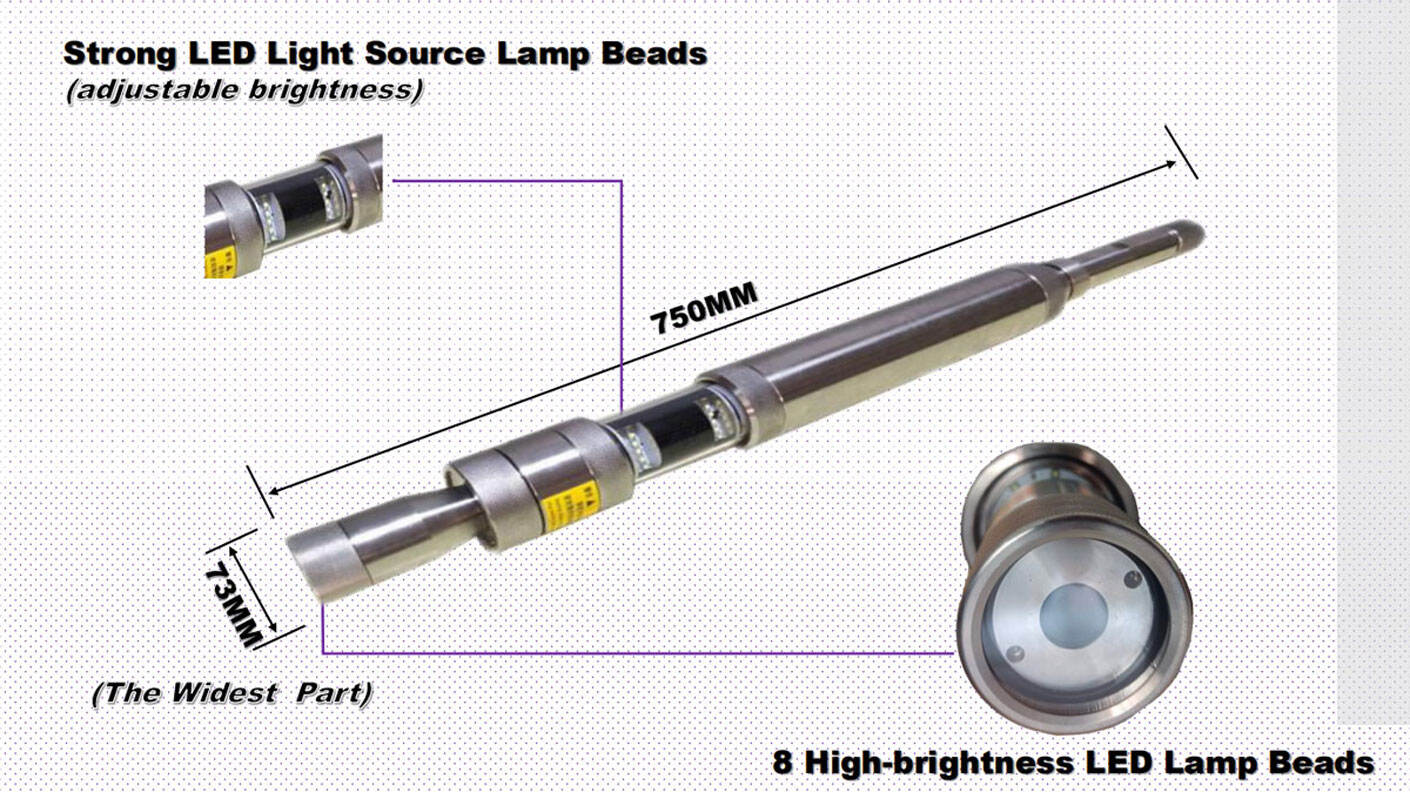

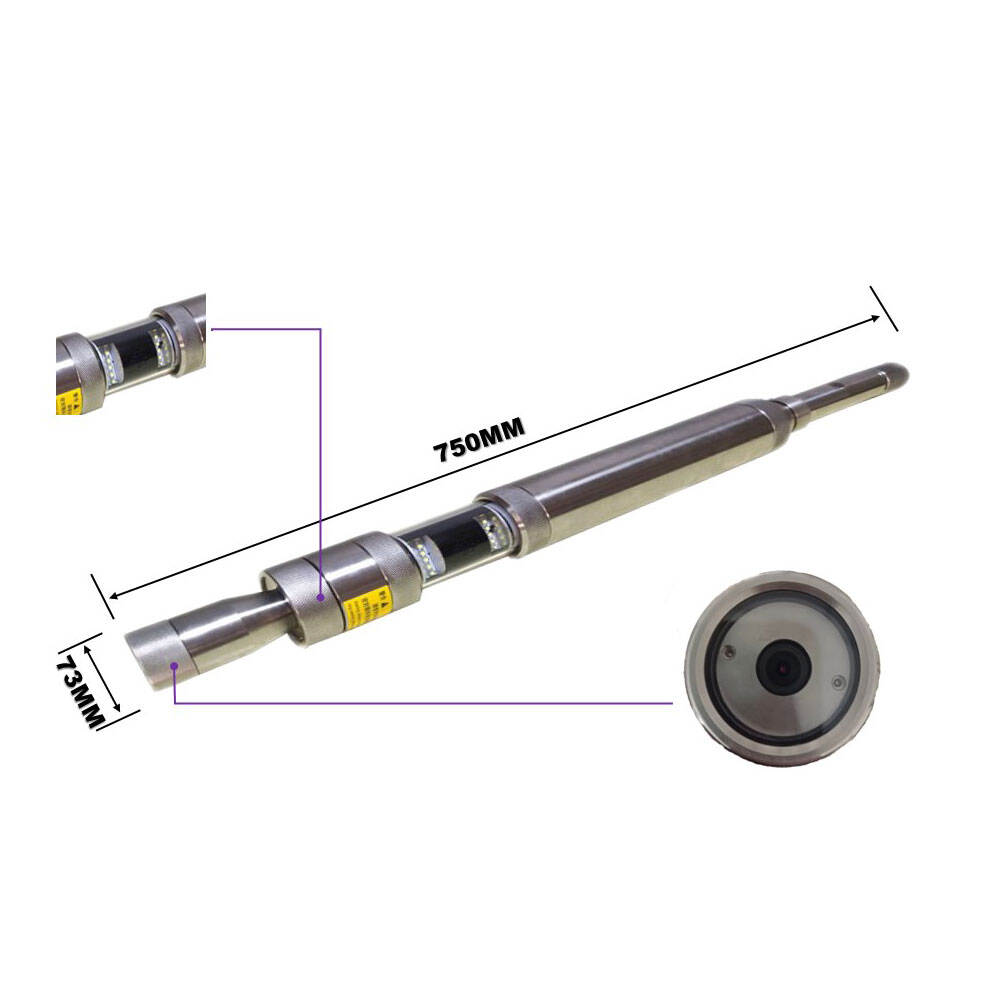

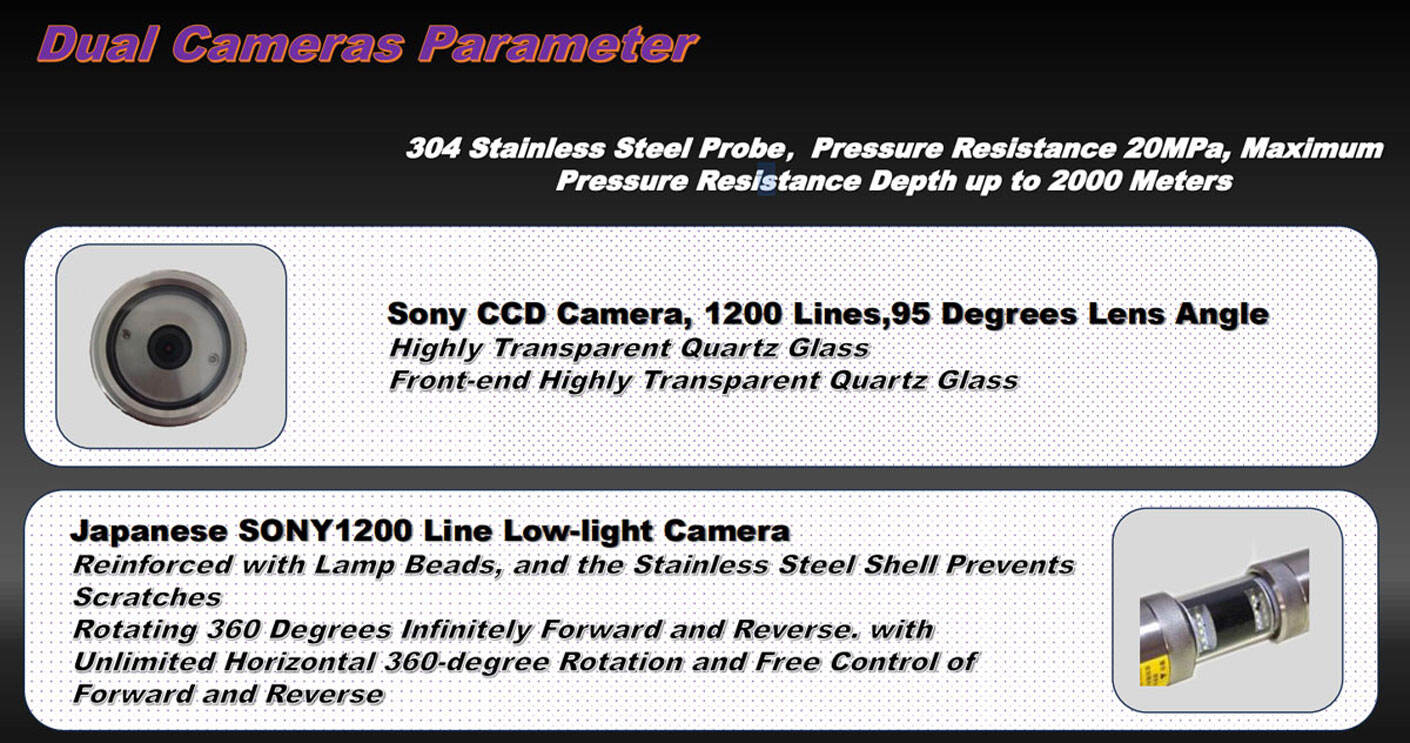

Dual Cameras Parameter - Sony CCD camera, 1200 lines, 95 degrees Lens Angle(Highly Transparent Quartz Glass). Front-end Highly Transparent Quartz Glass

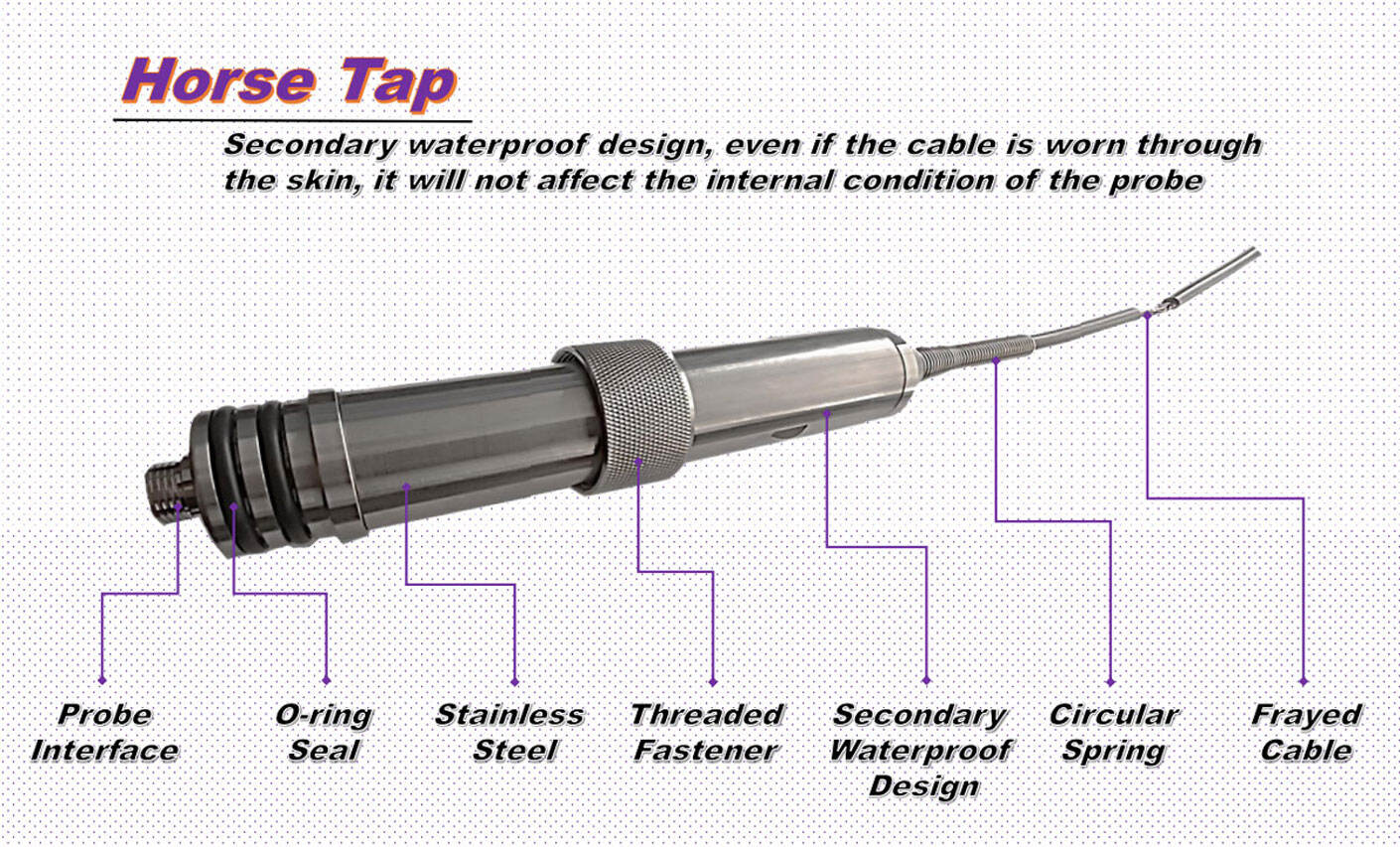

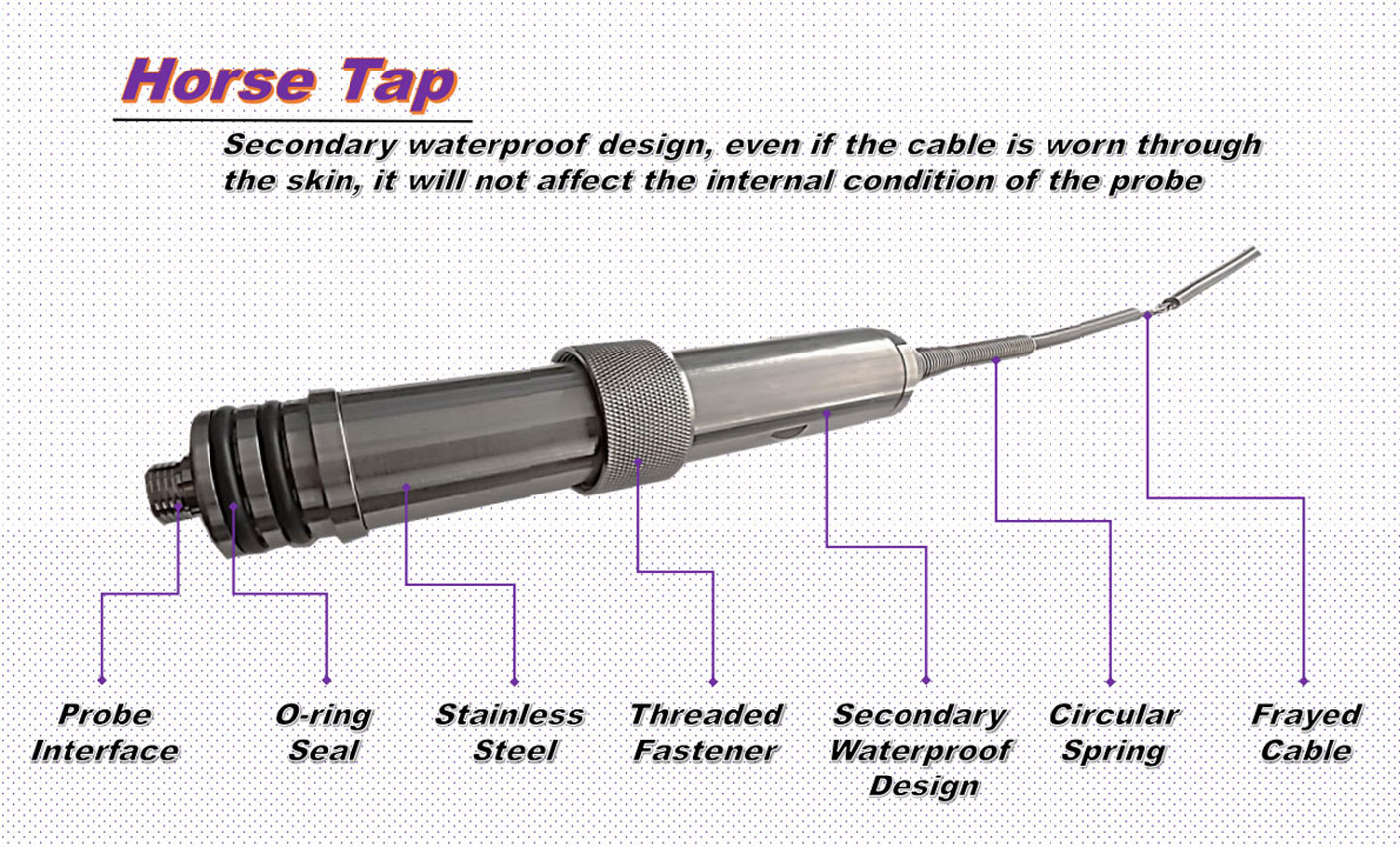

● Horse Tap - Secondary waterproof design, even if the cable is worn through the skin, it will not affect the internal condition of the probe
● Durablility: Internal steel wire fastening the cable to ensure the stability of the cable work, circular spring to prevent the cable from deformation of loosensing during long-term use.
Waterproofness: The front end has an O-ring seal, and the tail end has a secondary waterproof design to ensure to ensure that the cable will not affect the work of the probe even if the skin is worn.

Specifications：
