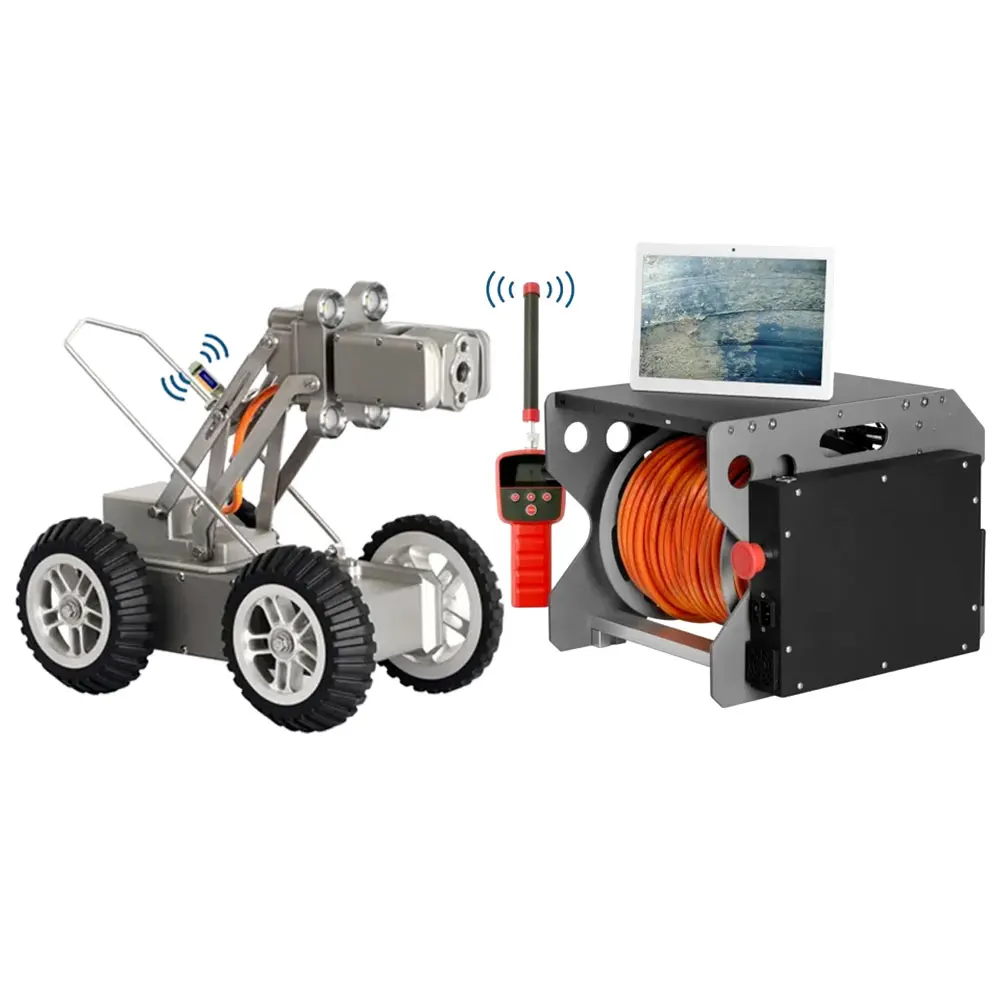

WR030 Industrial HD1080P Pipe Inspection Robot

512Hz Precision Positioning | 360° Cameras | IP68 Protection | Automatic Cable Reel

1. Executive Summary

The WR030 pipe inspection robot is a professional-grade solution engineered for pipeline condition assessment in municipal infrastructure, industrial facilities, oil & gas, and construction maintenance.
It combines real-time visual inspection, precision fault location, and rugged mobility in one integrated system.

For distributors and agencies, WR030 is a high-margin, in-demand product with strong adoption in multiple industries. It provides recurring revenue opportunities through accessories, spare parts, and service contracts.

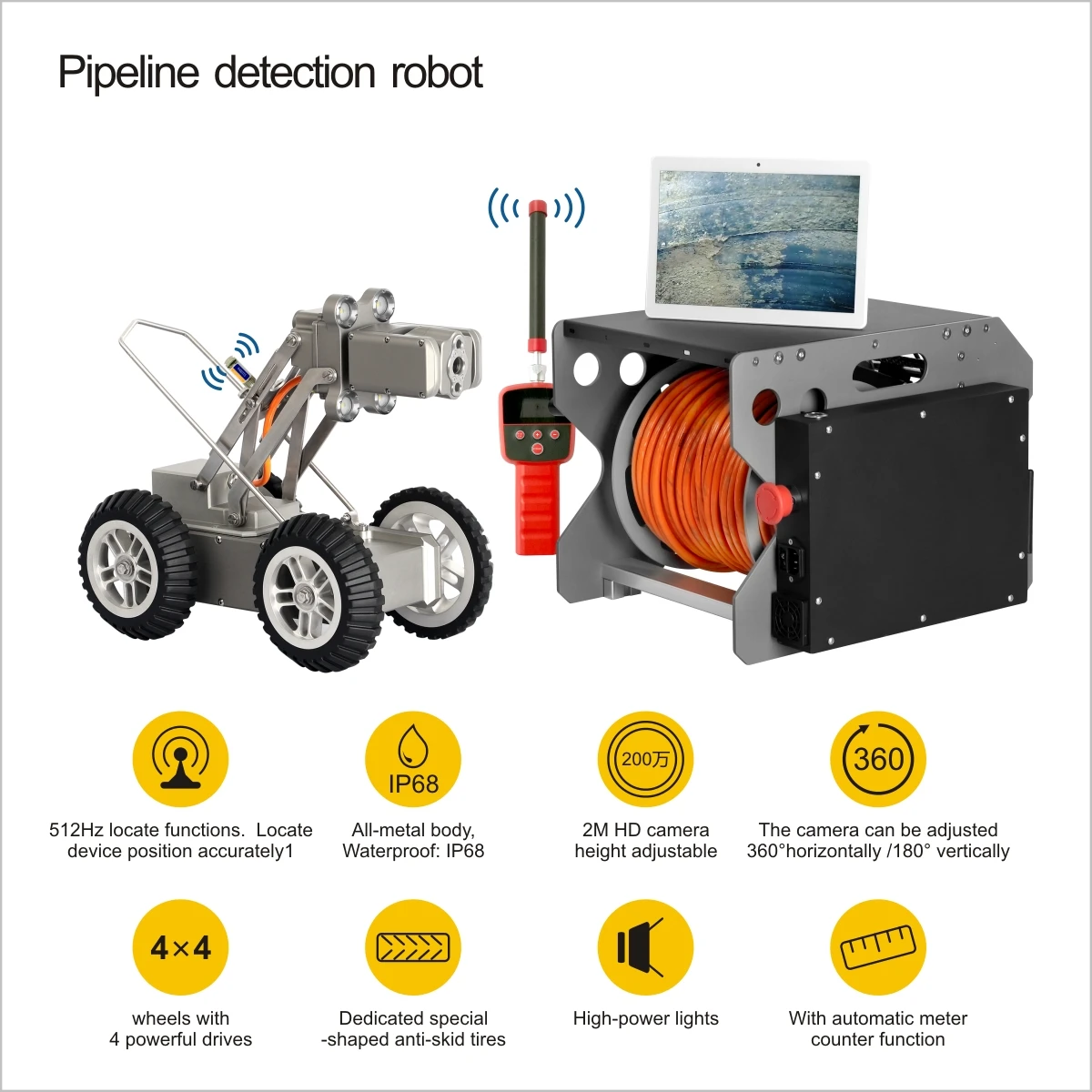

2. Key Features & Advantages

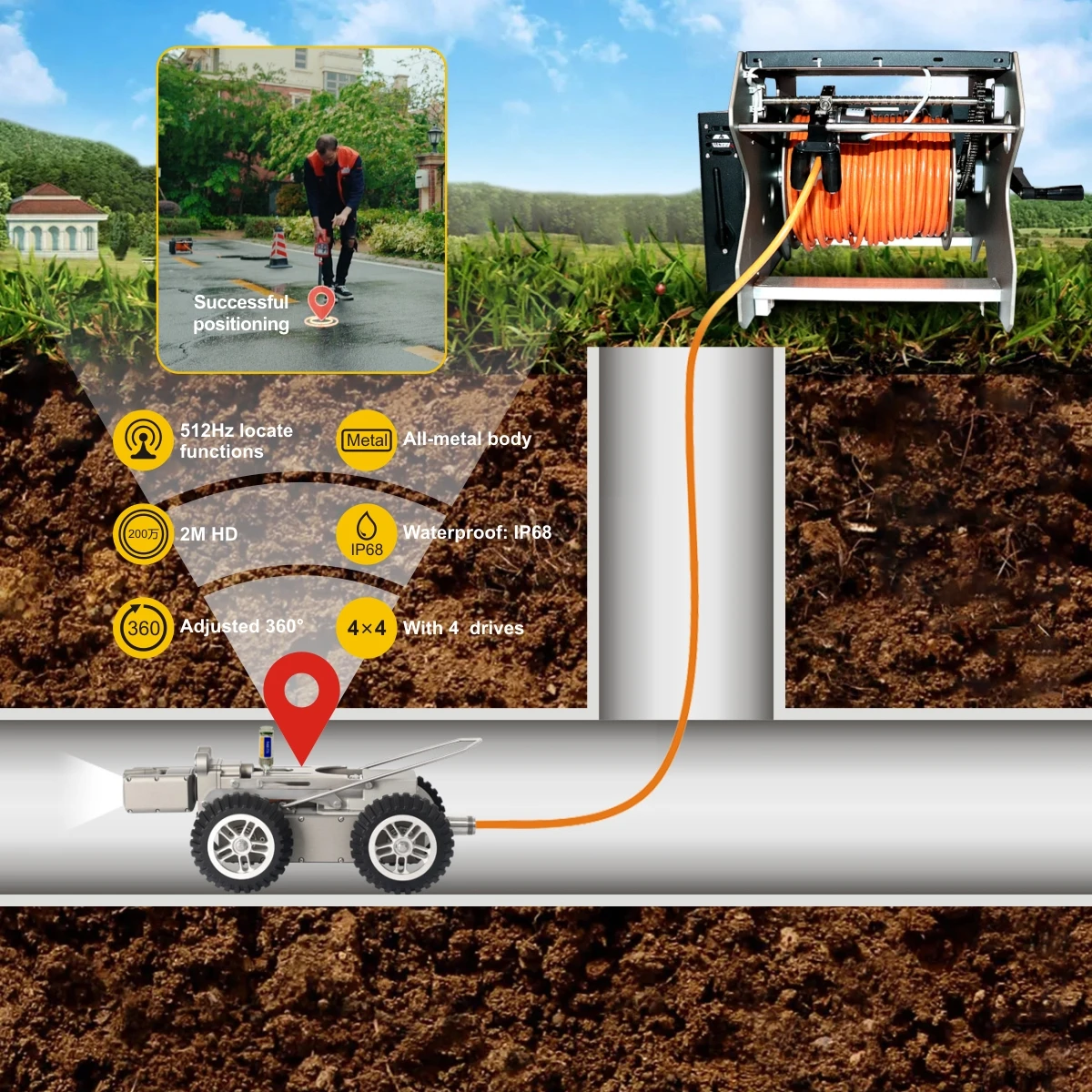

A. Precision Location – 512Hz Transmitter & Receiver

• Integrated 512Hz transmitter sends a signal through the pipeline structure.

• Ground receiver pinpoints the exact position of the robot.

• Reduces unnecessary excavation, minimizing labor and cost for end clients.

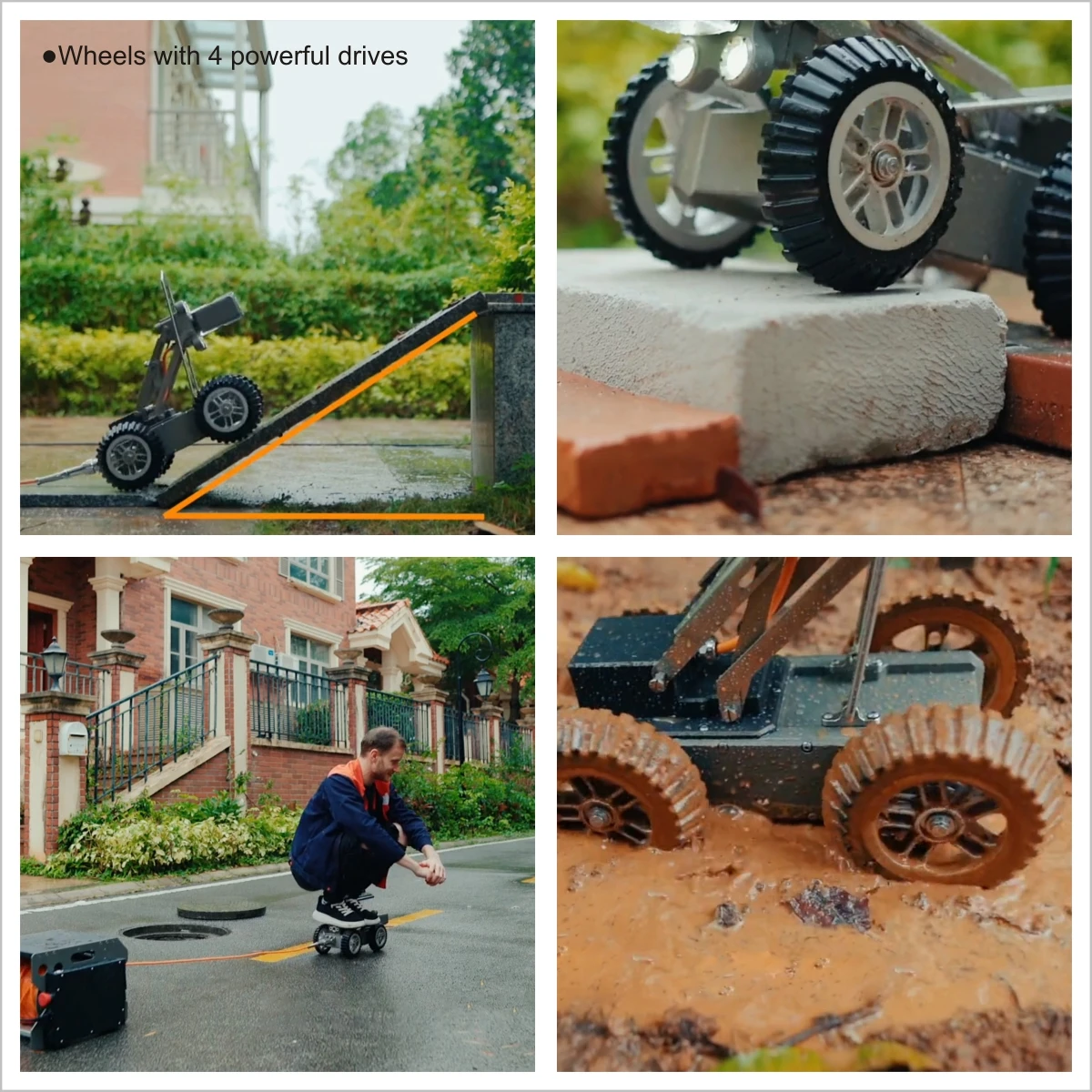

B. All-Terrain Four-Wheel Drive (4WD)

• Four independent brushless motors for maximum torque.

• Three speed levels: High / Medium / Low (2–25 m/min).

• Special anti-slip tires for wet, muddy, or oily surfaces.

• Climbing ability up to 30°, ensuring access in inclined pipelines.

C. Dual HD Cameras – Full Situational Awareness

• Front and rear 2MP (1920×1080) cameras with low-light optimization.

• Industrial-grade gimbal: 360° horizontal rotation and 190° vertical tilt.

• Adjustable height: 200–370 mm to adapt to different pipe diameters.

• Lighting: Front – 4 high-power LEDs + 2 auxiliary LEDs, Rear – 2 LEDs; stepless brightness control.

D. Intelligent Control System

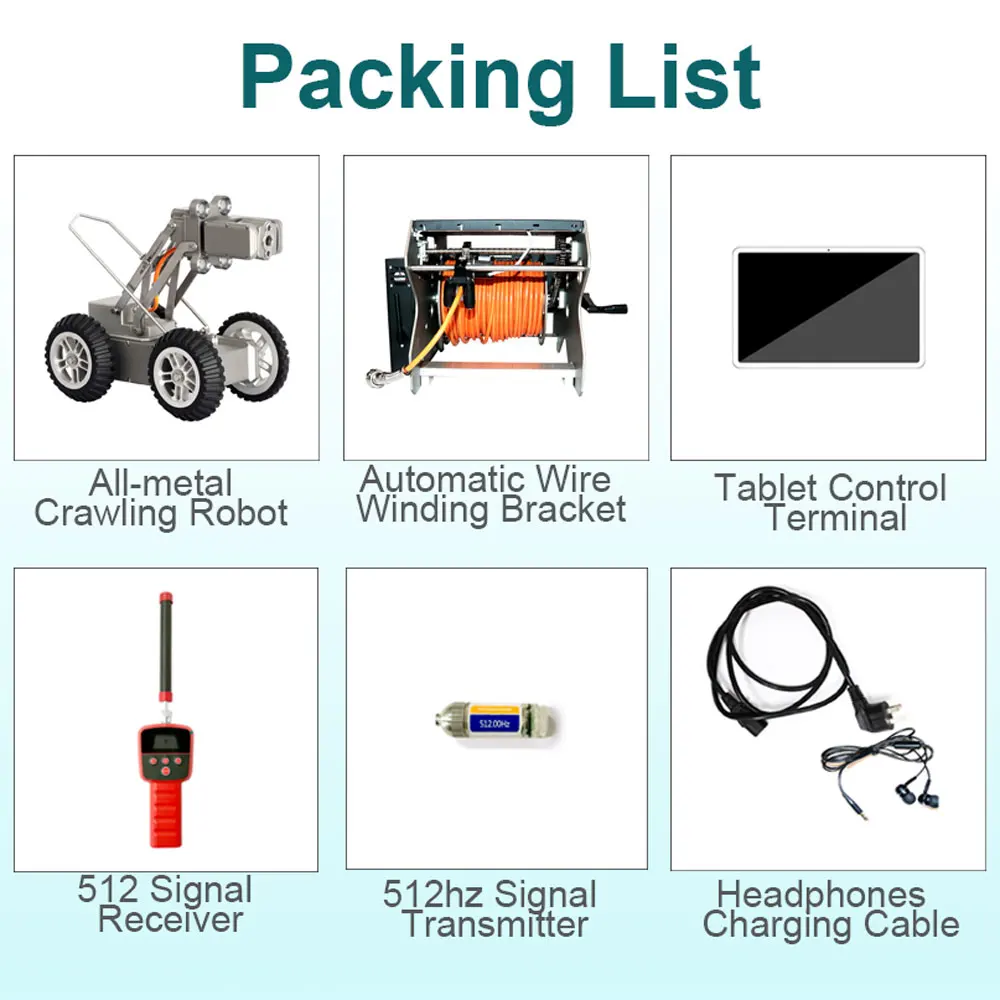

• Delivered with a rugged tablet pre-installed with our inspection control software.

• Live video feed with snapshot, recording, meter counting, and on-screen data overlay (date, time, cable length, project info).

• Real-time crawler posture animation for precise maneuvering.

• Automatic cable winding with all-metal winch for smooth, tangle-free operation.

E. Built for Harsh Environments

• IP68 waterproof & dustproof – fully submersible and resistant to ingress.

• High-strength alloy body with anti-corrosion coating.

• Cable: 50 kg tensile strength, abrasion-resistant, and chemical-resistant.

• Operating temperature: -10°C to 50°C – suitable for all climates.

3. Technical Specifications

Crawler Body

• Material: High-strength alloy

• Drive: 4WD, independent motor drive

• Speed: 2–25 m/min (3-speed adjustable)

• Motor Power: 100W total (2×50W brushless motors)

• Camera Resolution: 2MP (1920×1080) HD

• Camera Rotation: 360° continuous horizontal / 190° vertical tilt

• Lighting: 4 front main LEDs (7W each), 2 auxiliary LEDs (3W each), 2 rear LEDs; stepless dimming

• Waterproof: IP68

• Dimensions:680 × 340 × 310mm;11.6KG

• Weight: 11.5 kg

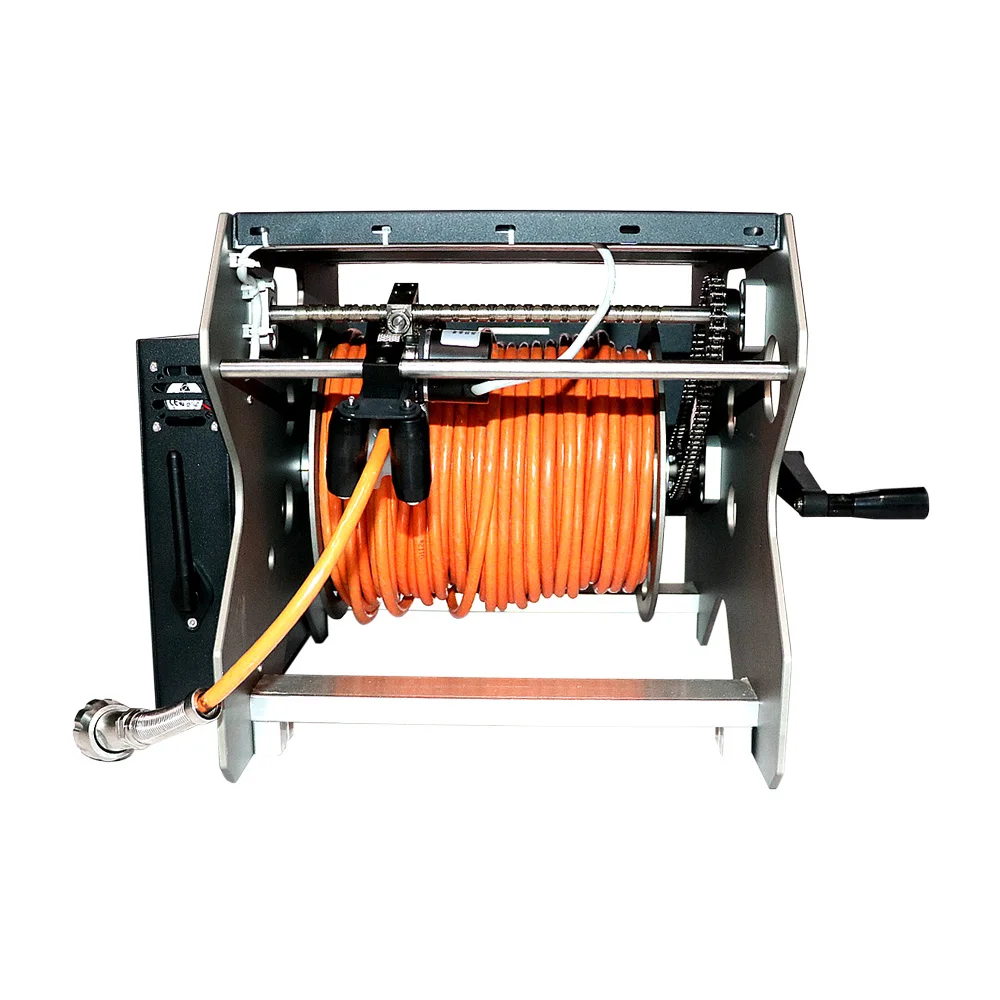

Cable Reel

• Material: All-metal construction

• Cable Length: 60 m/120M standard (customizable)

• Cable Type: Anti-pull, scratch-resistant, corrosion-resistant

• Cable Management: Automatic winding system

• Meter Counting: Electronic counter

• Power Supply: 110–220V AC input

• Dimensions: 640 × 580 × 500mm

• Weight: 27.6 kg

4. Industry Applications

• Municipal Infrastructure: Sewer, stormwater, and potable water pipelines

• Industrial Facilities: Chemical plant pipelines, factory drains

• Construction: New-build pipe installation inspection

• Utilities & HVAC: Ductwork and confined space maintenance

5. Why Distributors & Agencies Choose WR030

• Proven Demand – Pipeline inspection is a critical and recurring service.

• High ROI – Durable design means fewer warranty claims, stable resale margins.

• Accessory Upselling – Additional cables, lighting kits, spare parts create ongoing sales.

• Technical Support – Comprehensive training, manuals, and remote assistance.

• Brand Neutral – Your company can rebrand for private label resale.

6. FAQ – Frequently Asked Questions

Q1: Can cable length be extended?
Yes. While 60 m&120m is standard, we can provide longer cables to meet specific inspection requirements.

Q2: Is the software customizable?
Yes. We can provide OEM customization, including branding and multi-language interfaces.

Q3: What pipe diameters can the WR030 operate in?
Suitable for pipe diameters from 300 mm to 1500 mm.

Q4: How is the 512Hz positioning used?
During inspection, the crawler transmits a 512Hz signal. The ground receiver detects the signal to locate the robot’s exact position in the pipeline.

Q5: What after-sales services do you provide?
1-year warranty (extendable), free remote training for distributors, and priority spare parts availability.

7. Ordering & Wholesale Information

We offer tiered distributor pricing based on order quantity:

• MOQ: 1 unit for evaluation orders

• Bulk Discounts: Applied for 5, 10, 20+ units

• Lead Time: 15–30 days depending on quantity and customization

• Shipping: Sea, air, or express – FOB, CIF, or DDP terms available

📩 Contact us today to receive your wholesale price list and dealership application form.
