Product General Information
| Place of Origin: | |
| Brand Name: | SPRIDRAIN |
| Model Number: | DWPP73 |
| Certification: | |
| Minimum Order Quantity: | 1PCS |
| Price: | |
| Packaging Details: | Wooden Package |
| Delivery Time: | |
| Payment Terms: | |
| Supply Ability: |
Quick Detail:
● Description:
SPRIDRAIN 73mm Panoramic Electric - Professional for deep well and deep Well inspection，underwater operations, diving exploration.
● Applications:
Deep Well inspection，Oil well, underwater operations, diving exploration, water well
● Specifications:
| Control Box Size | 415*340*144MM |
| LED | 8 |

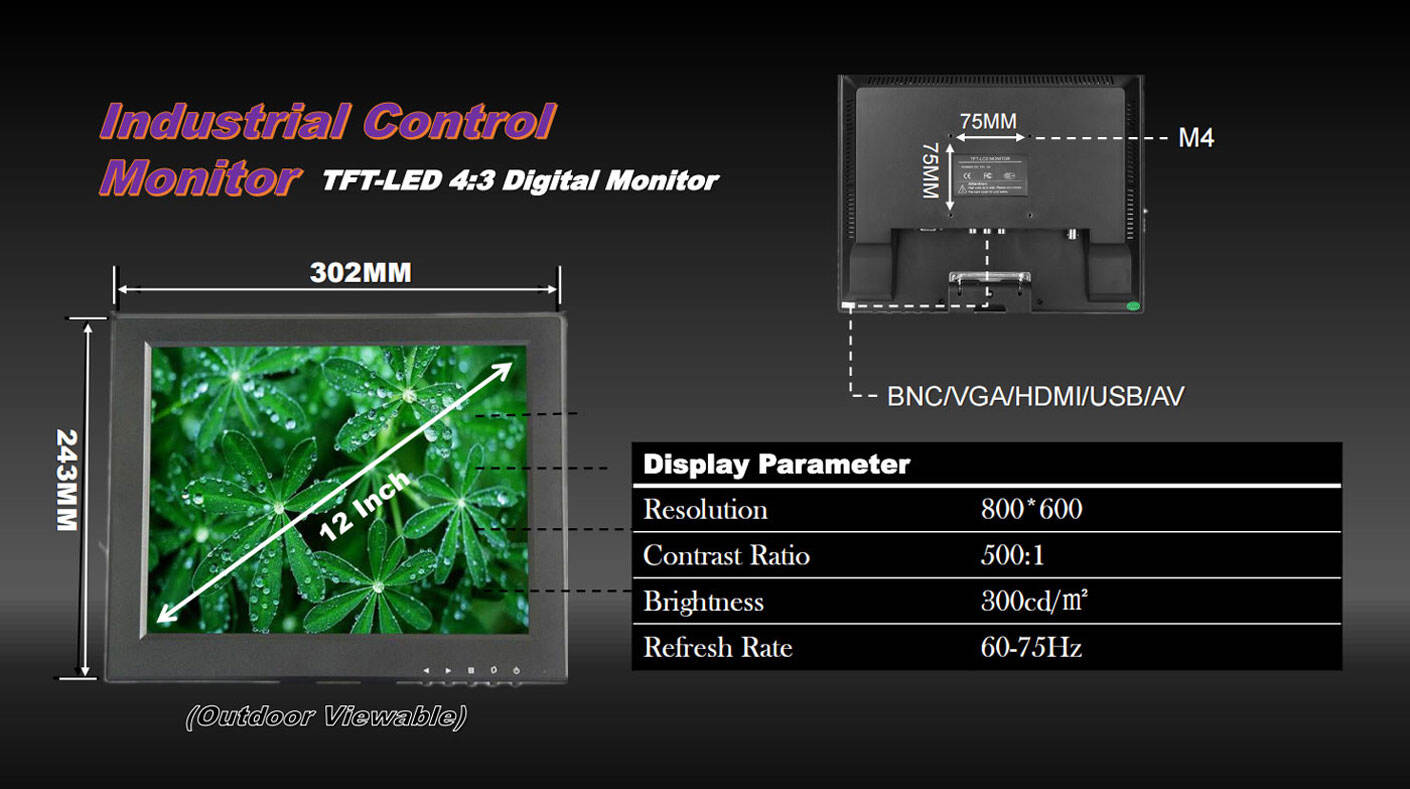

| Monitor | TFT-LED 4:3 Digitial Monitor |
| Resolution | 800*600 |
| Contrast Ratio | 500:01:00 |
| Refresh Rate | 60-75Hz |
Competitive Advantage:
1.Manufacturer Supply directly
2.Supply OEM/ODM Service
3.Cable Length Customized. Up to 2000M
Product Description：

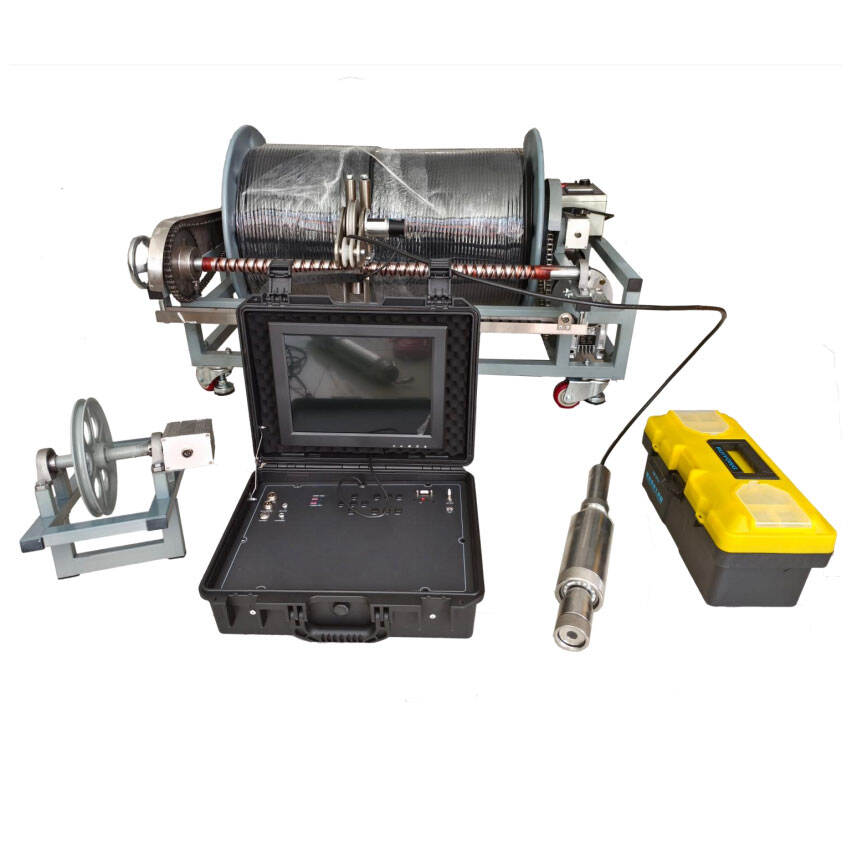

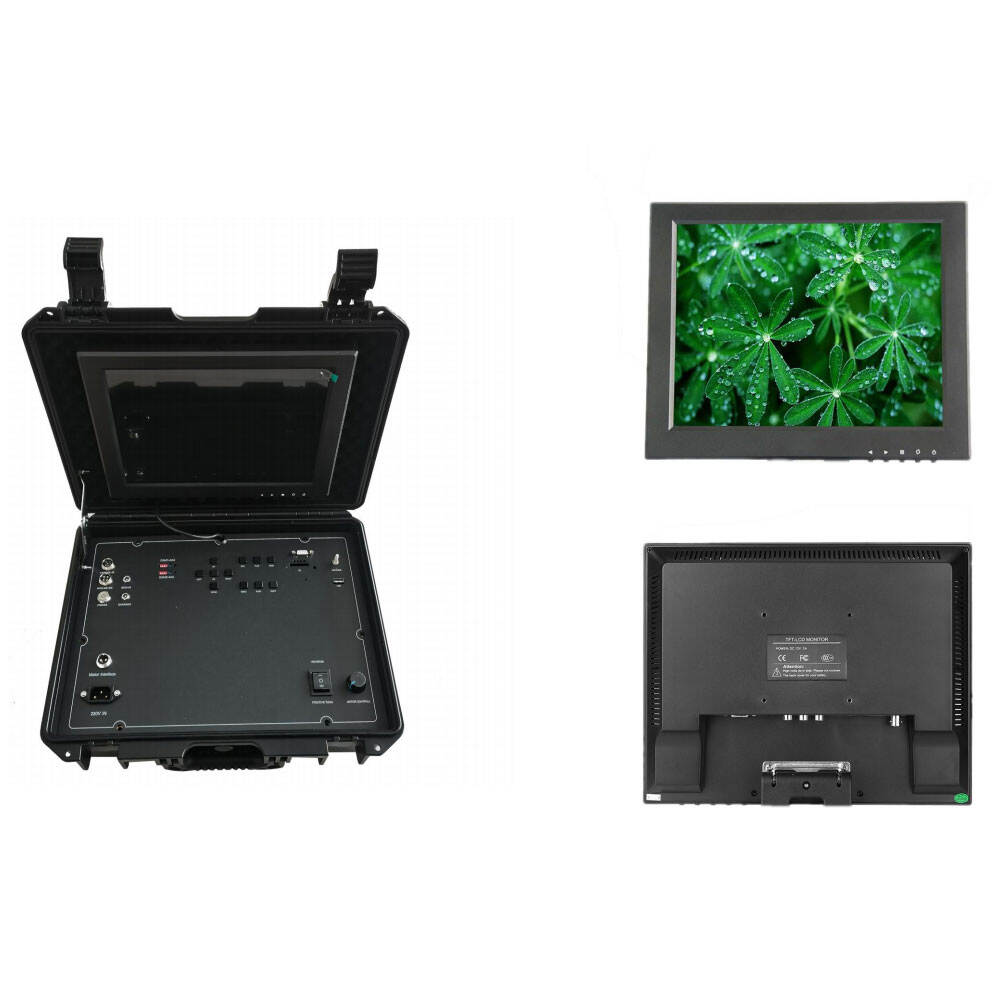

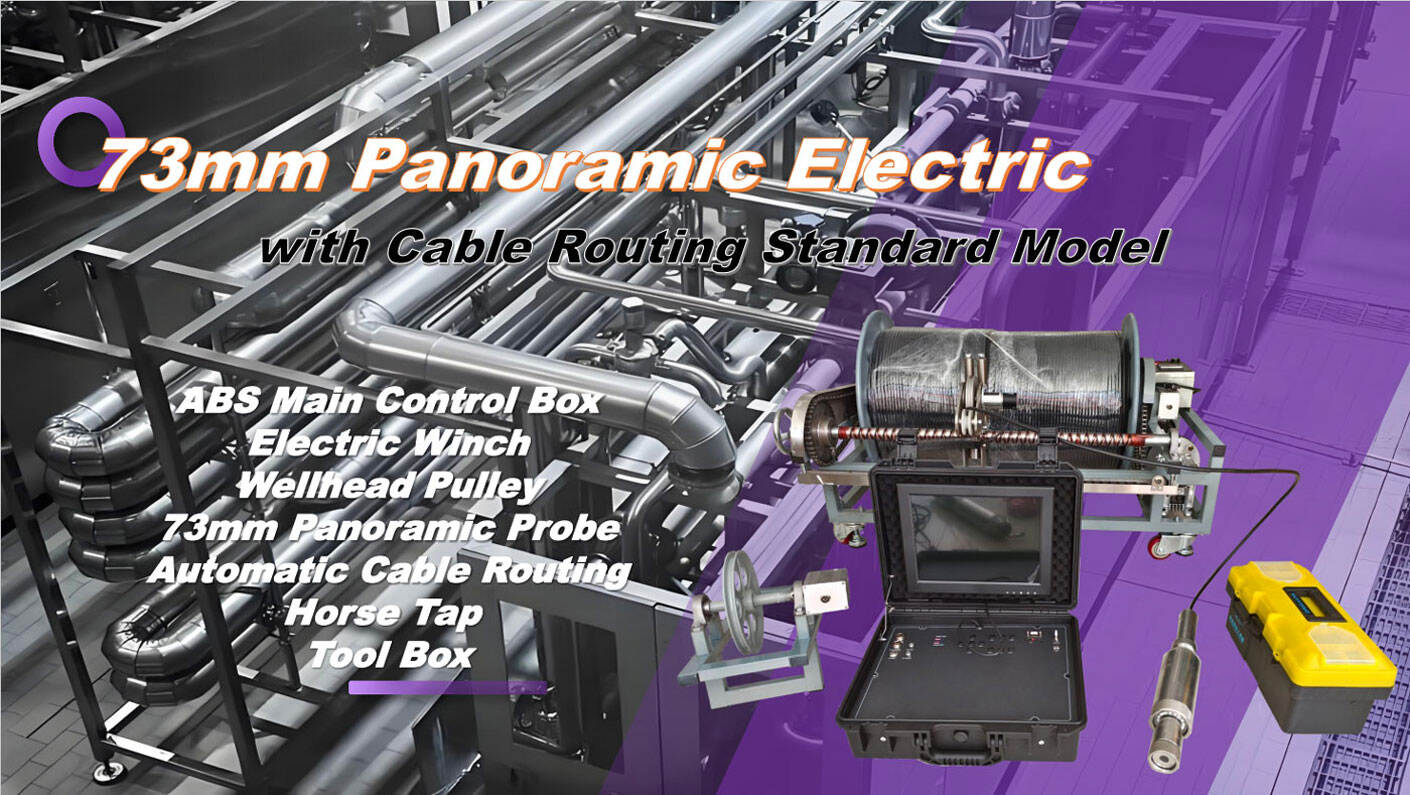

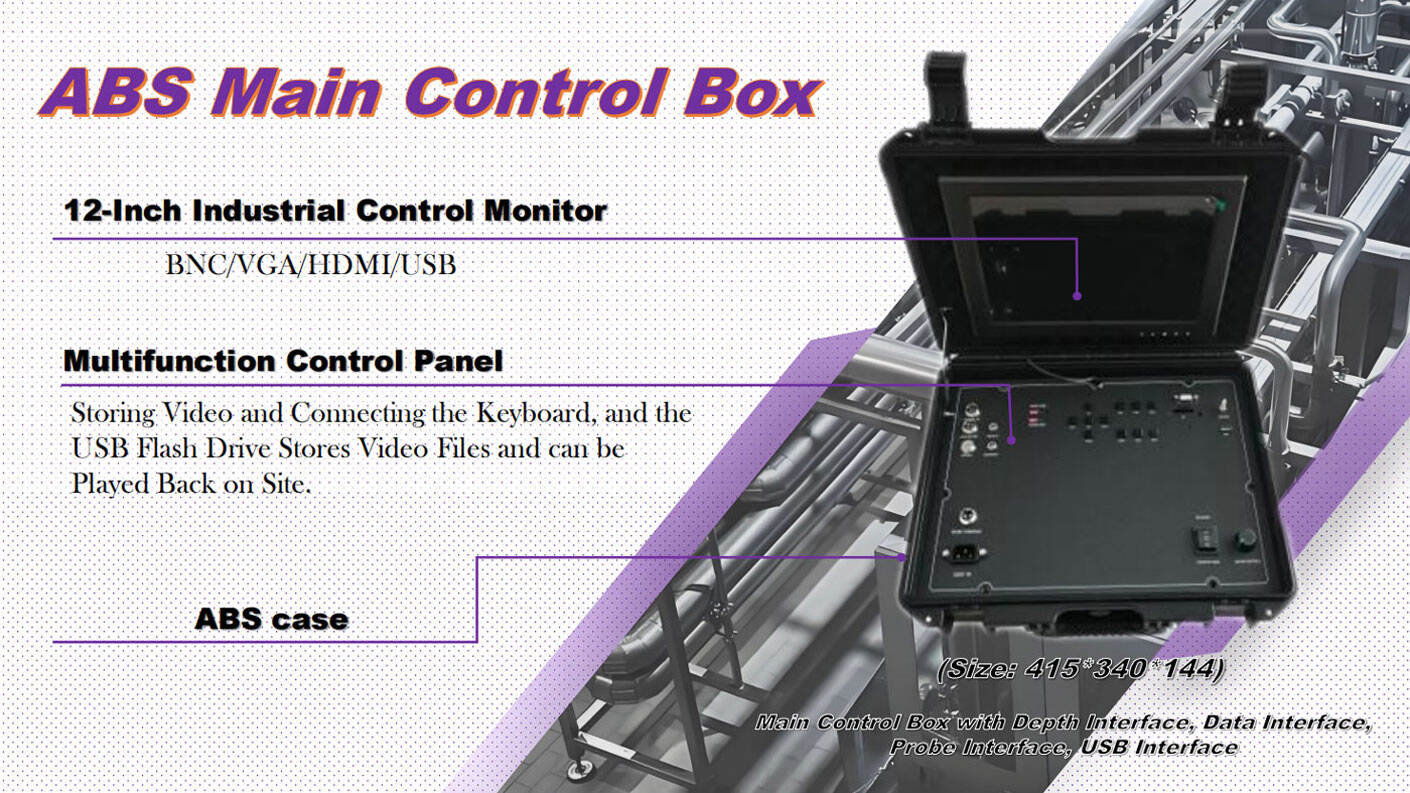

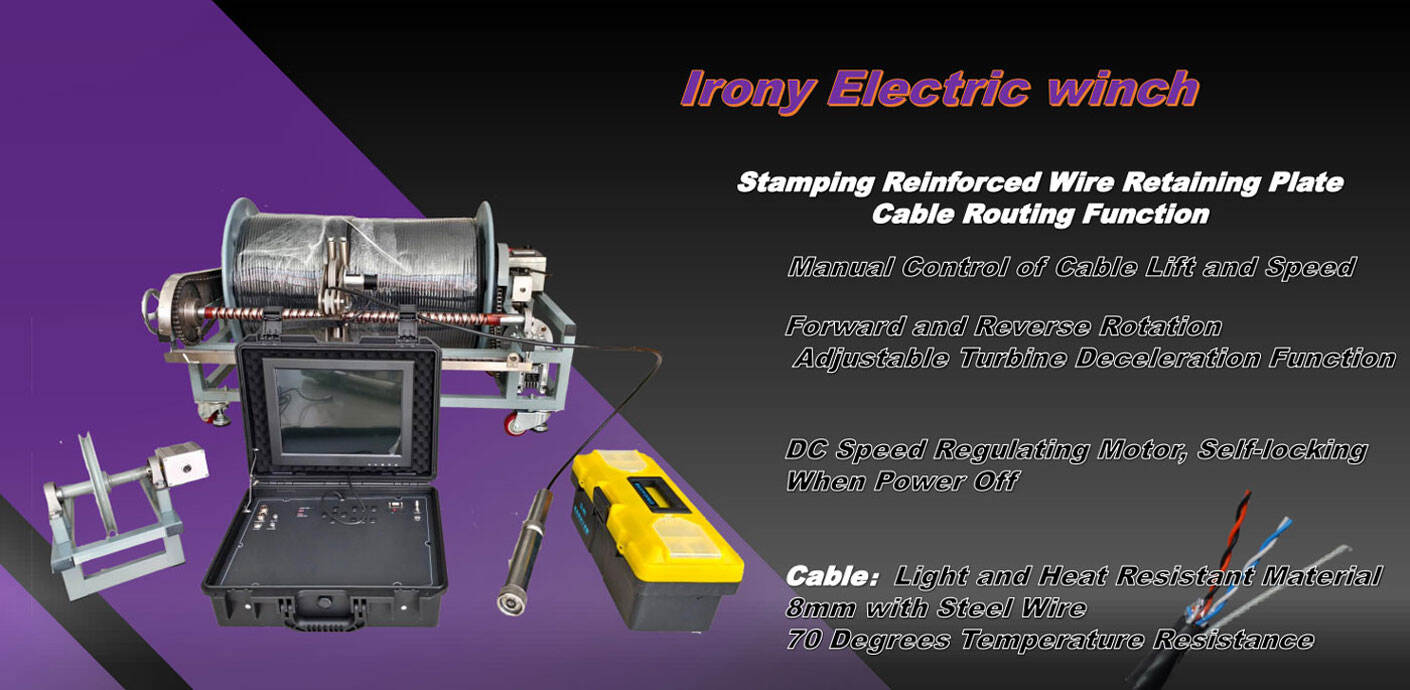

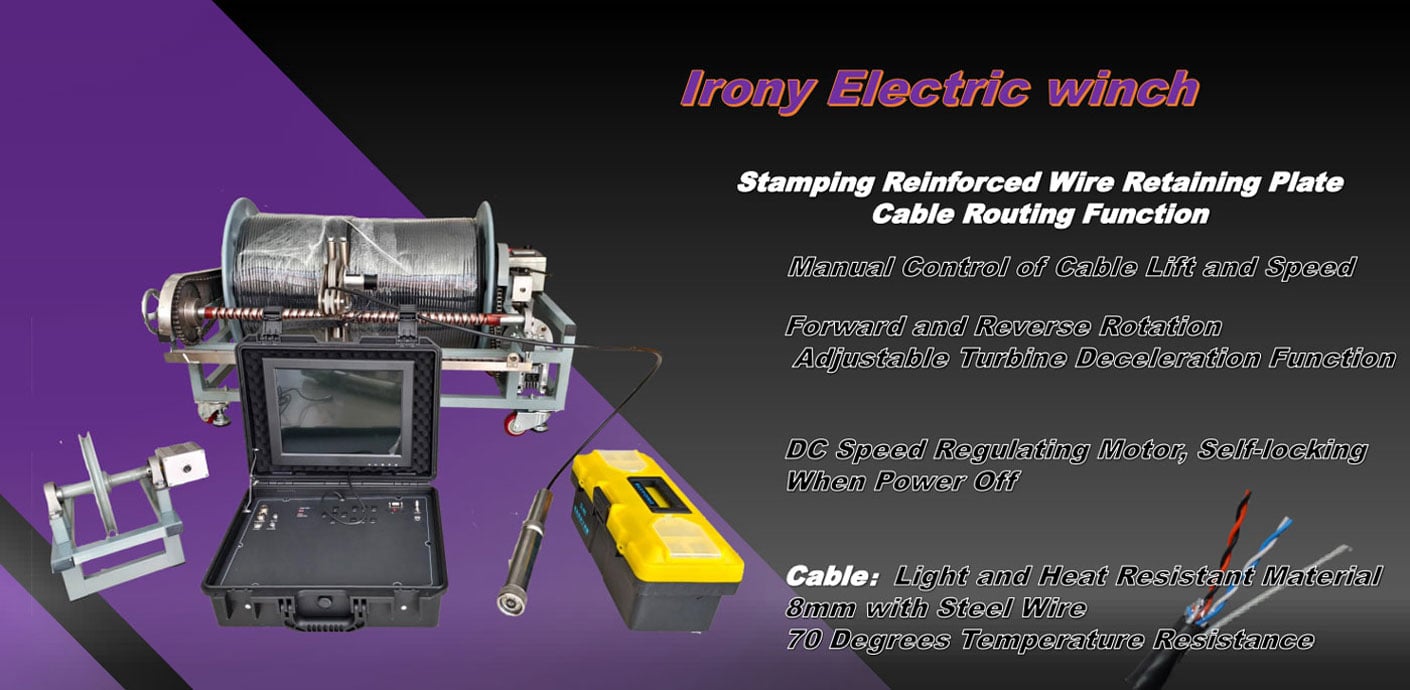

SPRIDRAIN 73mm Panoramic Electric with Cable Routing Standard Model - Professional Panoramic Camera for Well inspection, underwater operations, diving exploration. 12-Inch Industrial Control MONITOR support BNC/VGA/HDMI/USB interface. Multifunction Control Panel Support Storing Video and Connecting the Keyboard, and the USB Flash Drive Stores Video Files and can be played back on site. Stamping Reinforced Wire Retaining Plate Cable Routing Function. Manual Control of Cable Lift and Speed as below:
1). Forward and Reverse Rotation. Adjustable Turbine Deceleration Function.
2). DC Speed Regulation Motor, Self-locking When Power Off.
3). Cable: Light and Heat Resistant Material 8mm With Steel Wire. 70Degrees Temperature Resistance.

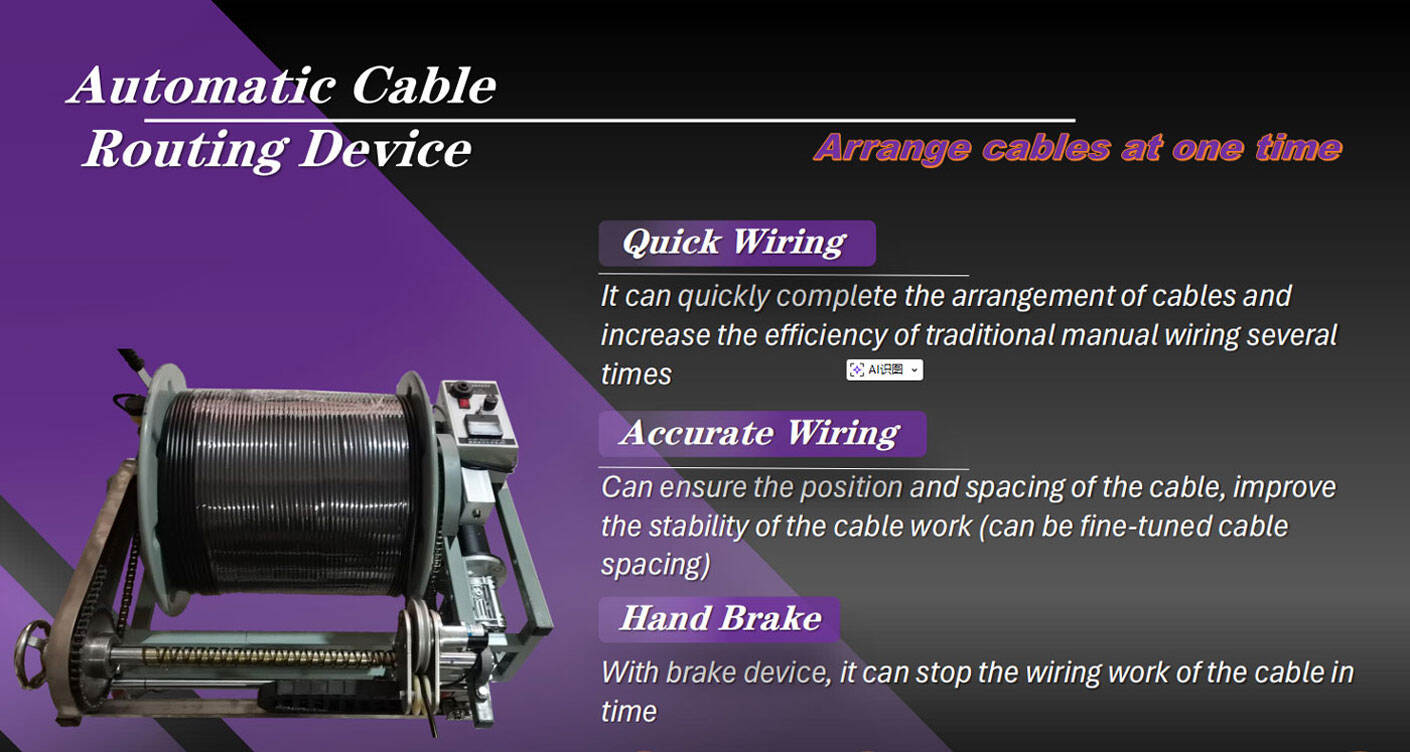

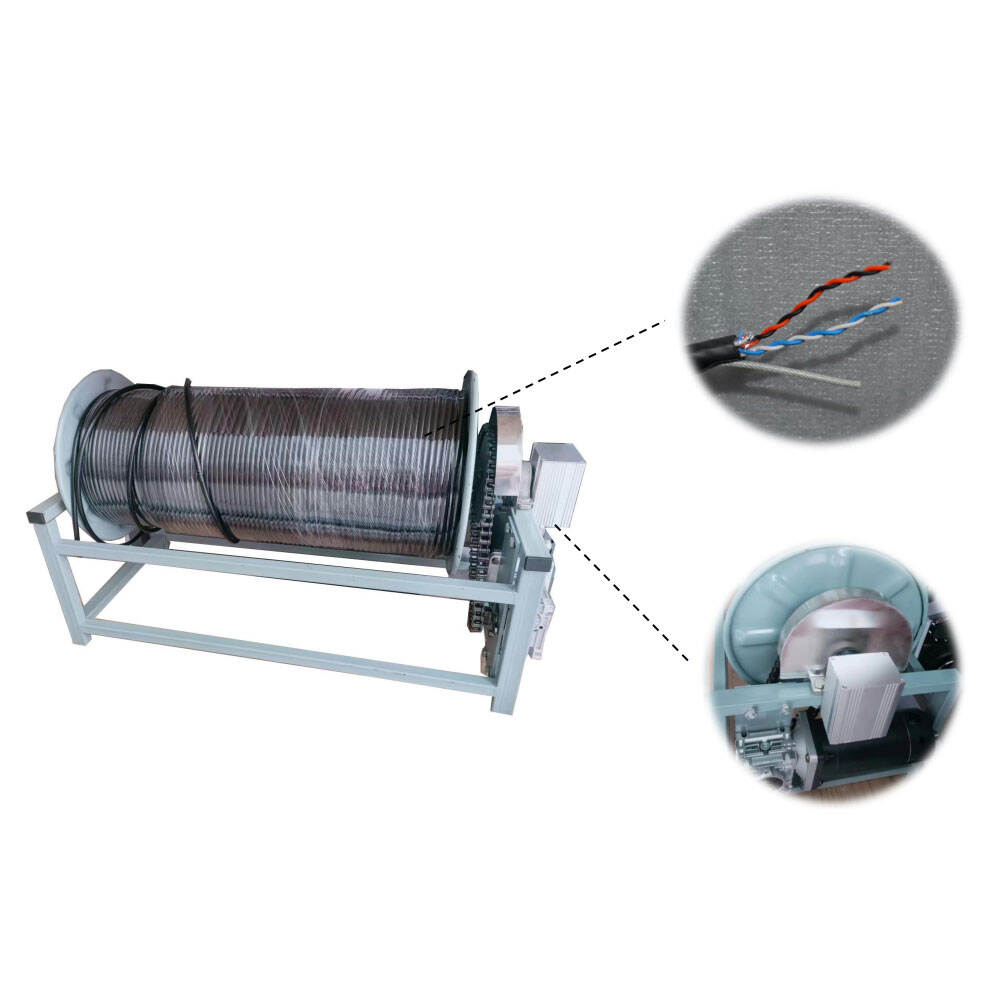

Automatic Cable With Routing Device:
● Quick Wiring - It can quickly complete the arrangement of cables and increase the efficiency of traditional manual wiring several times.
● Accurate Wiring - Can ensure the position and spacing of the cable, improve the stability of the cable work (can be fine-tuned cable spacing)
● Hand Brake - With brake device, it can stop the wiring work of the cable in time

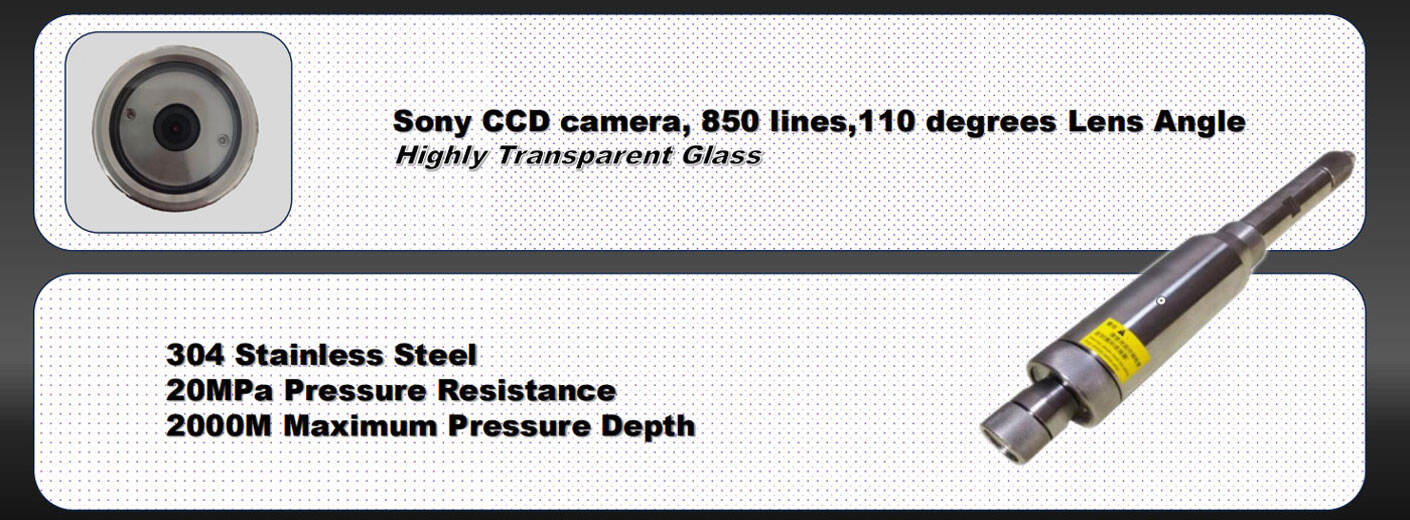

● Cameras Parameter - Sony CCD camera, 850 lines, 110 degrees Lens Angle(Highly Transparent Glass)

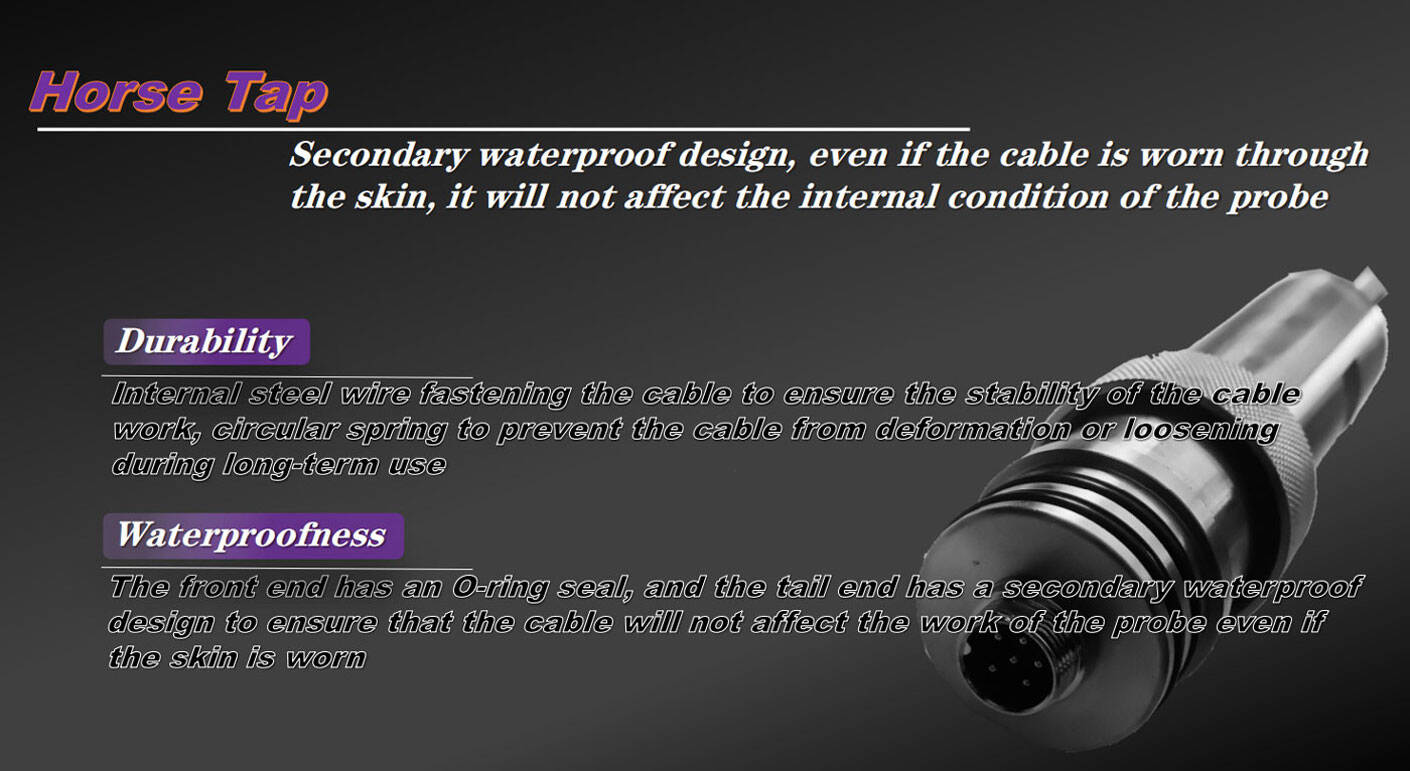

Horse Tap - Secondary waterproof design, even if the cable is worn through the skin, it will not affect the internal condition of the probe
Specifications：
| Product Model | DWPP73 |

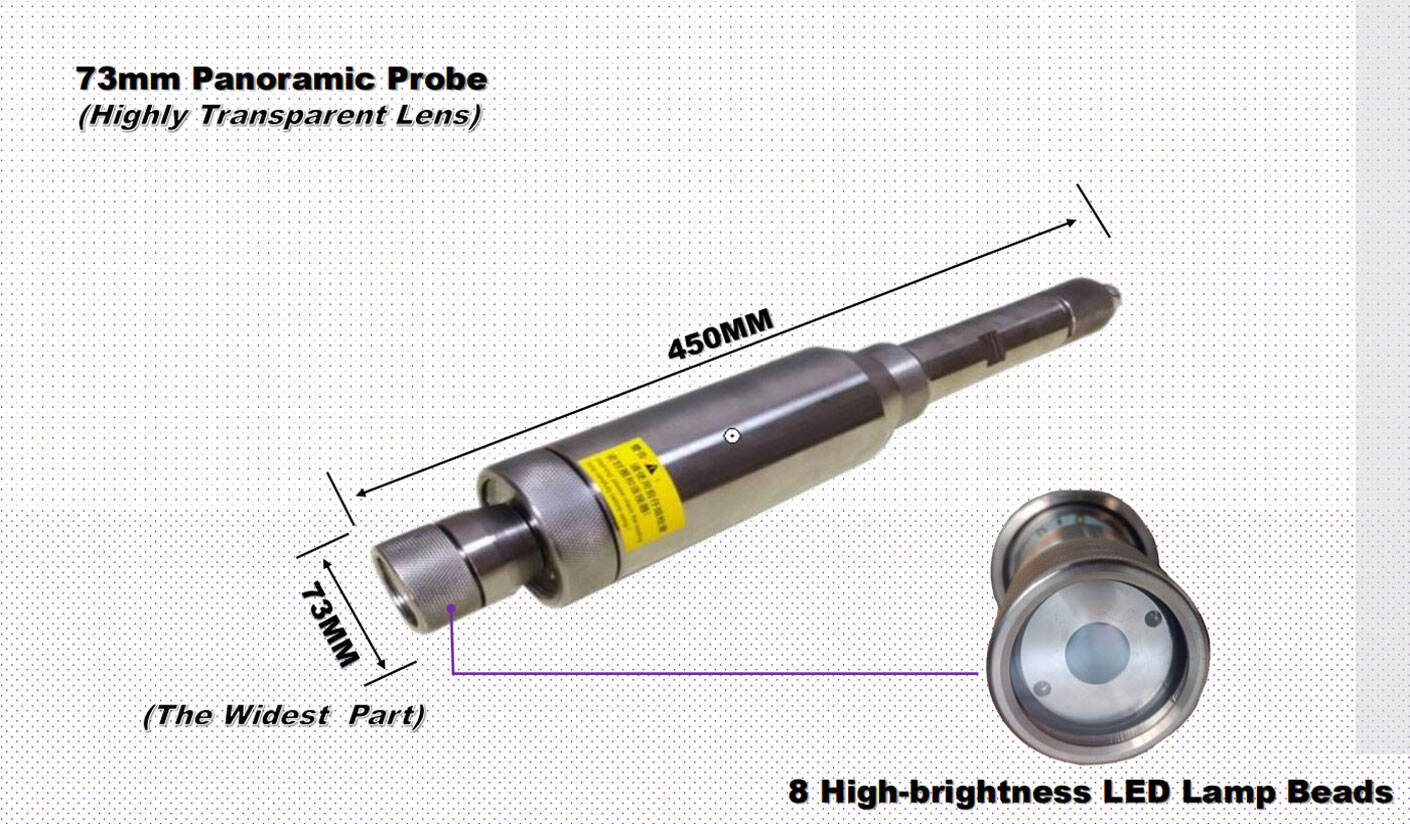

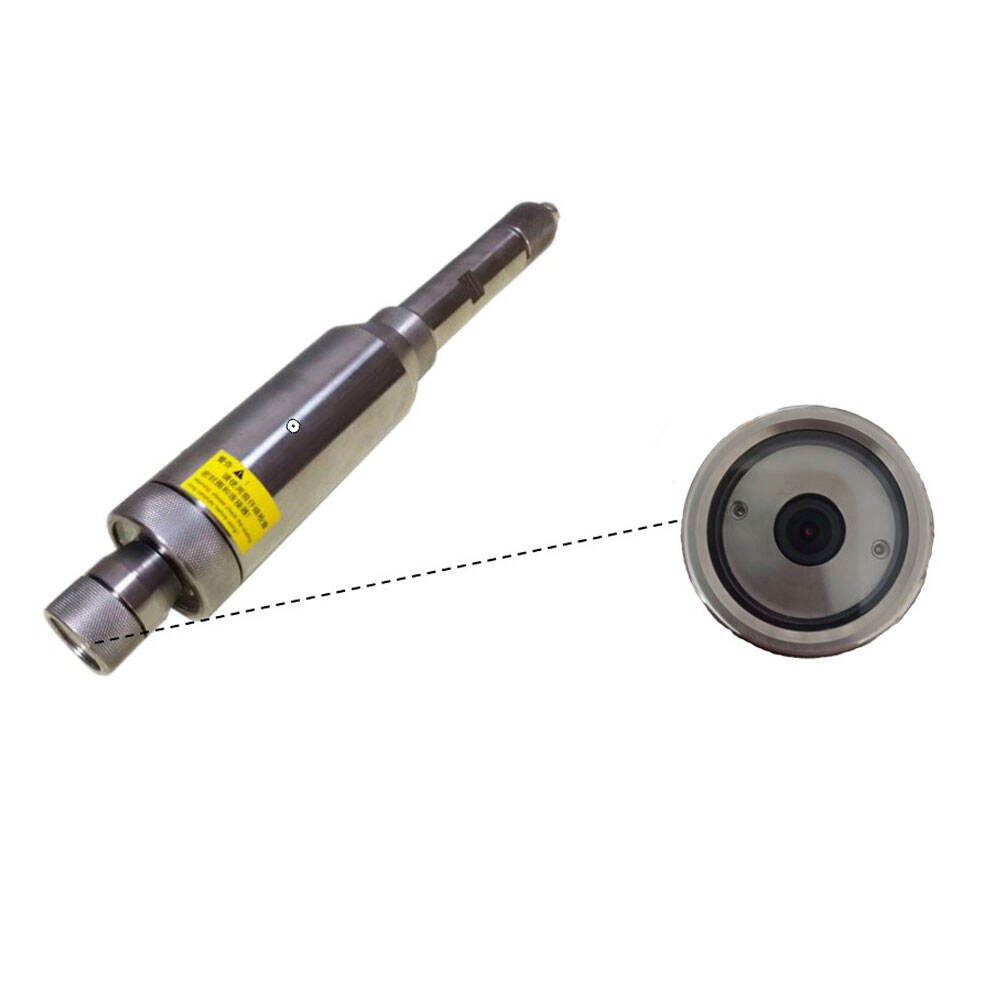

| Camera Type | 73mm panoramic probe |
| Main Control Box Material | ABS |
| Monitor | 12-Inch Industrial Control Monitor |
| Monitor Interface | BNC/VGA/HDMI/USB |
| Winch Type | Electric |
| Cable | Light and Heat Resistant Material, 8mm with Steel Wire |
| Camera Head | Sony CCD |
| LED | 8 High-brightness LED Lamp Beads |
