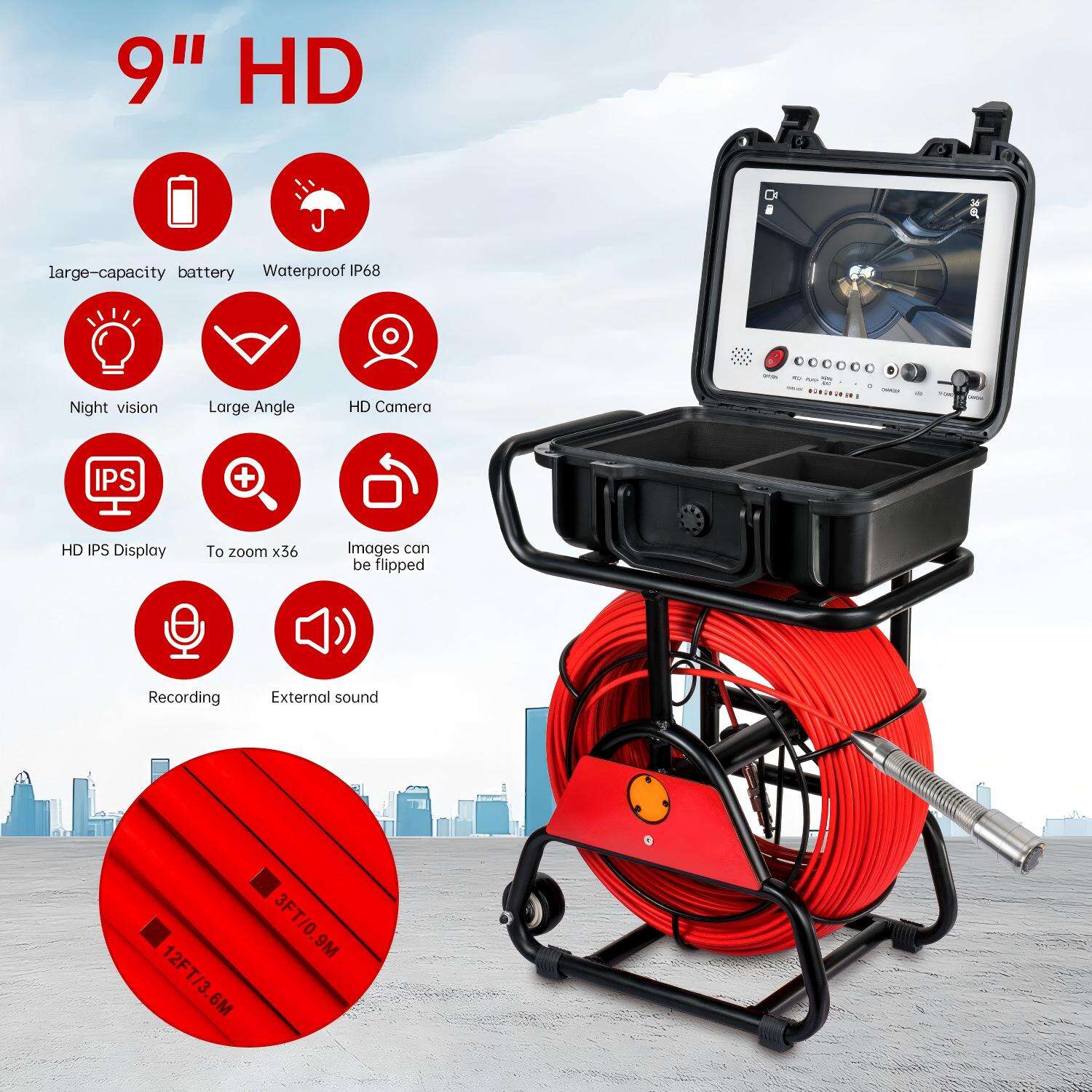

9inch HD IPS Screen Sewer Camera with 16GB SD Video&Audio Recording from Drain Camera Factory 36X Image Enlarger
9-Inch Professional Sewer Camera & Pipe Inspection CameraFactory Direct Since 2012 – Full OEM & ODM SupportedWe are an original inspection camera manufacturer established in 2012 with over 13 years of specialized experience in drainage and pipeline cameras.
This flagship sewer camera and pipe camera is our best-selling model worldwide, trusted by more than 800 plumbing companies and distributors in 60+ countries. Featuring a large 9-inch HD IPS screen, built-in 16GB video & audio recording, industry-leading 36X digital zoom, ultra-slim 5mm push cable, and a true IP68 23mm stainless-steel camera head, it delivers unmatched clarity, flexibility, and reliability for daily professional use.Why Thousands of Plumbers Choose This Exact Model Every Year1. Huge 9-Inch HD IPS Sun-Visible Screen
- True 1280×800 high-resolution IPS panel (not cheap TFT)
- 178° wide viewing angle + foldable sunshade hood
- Anti-glare coating ensures perfect visibility even under direct sunlight
- Capacitive touch + physical buttons for operation with wet or gloved hands
- Pre-installed 16GB high-speed SD card (expandable to 64GB)
- Records 1080P full-HD video with synchronized audio via built-in microphone
- One-touch recording, snapshot, and playback directly on the screen
- Date/time stamp and optional on-screen meter counter overlay
- AVI format – instantly compatible with Windows, Mac, and mobile phones

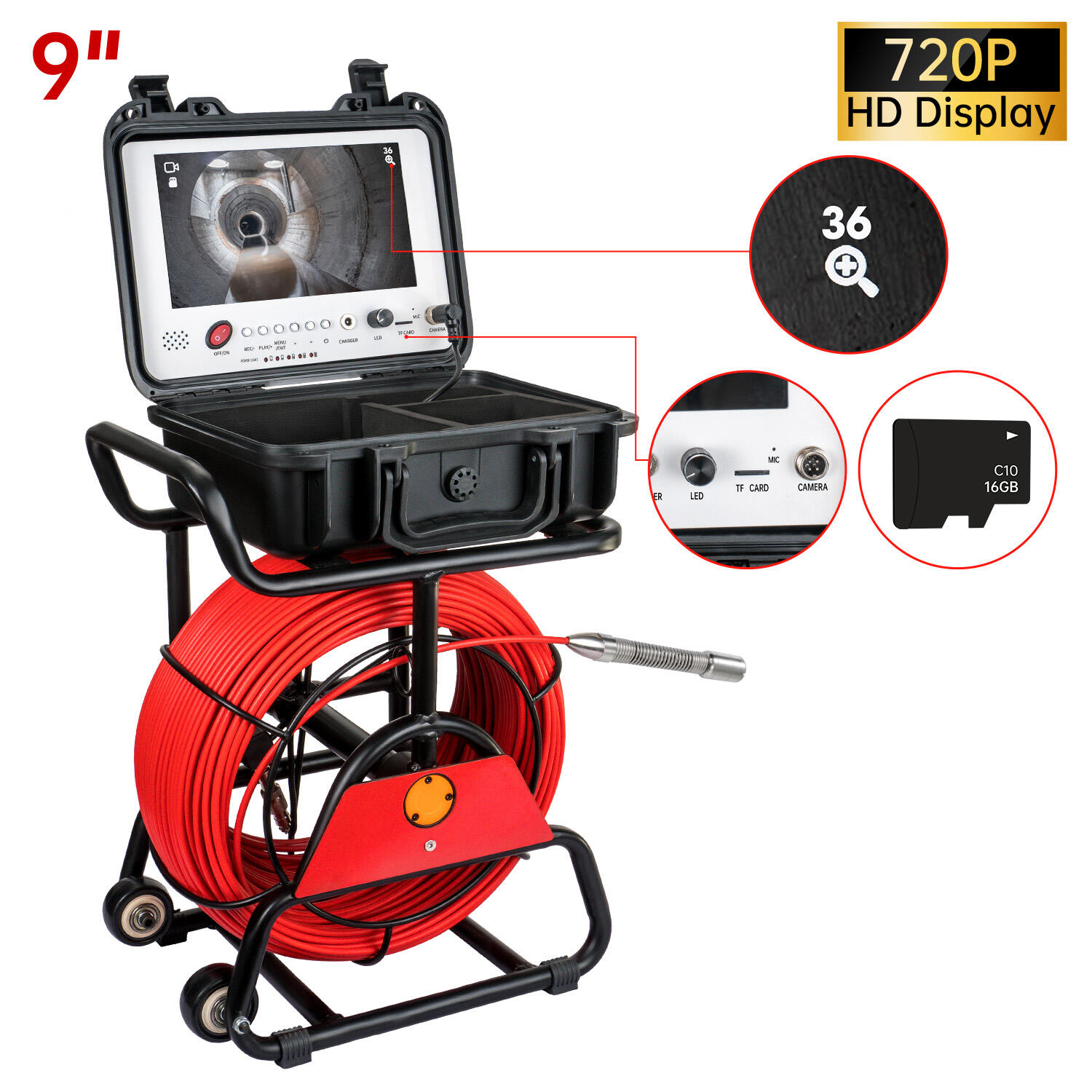

- Magnify tiny details up to 36 times while maintaining usable clarity
- Essential for reading pipe markings, identifying hairline cracks, or spotting jewelry lost in drains
- Far superior to the common 4X–8X zoom found on most competitors

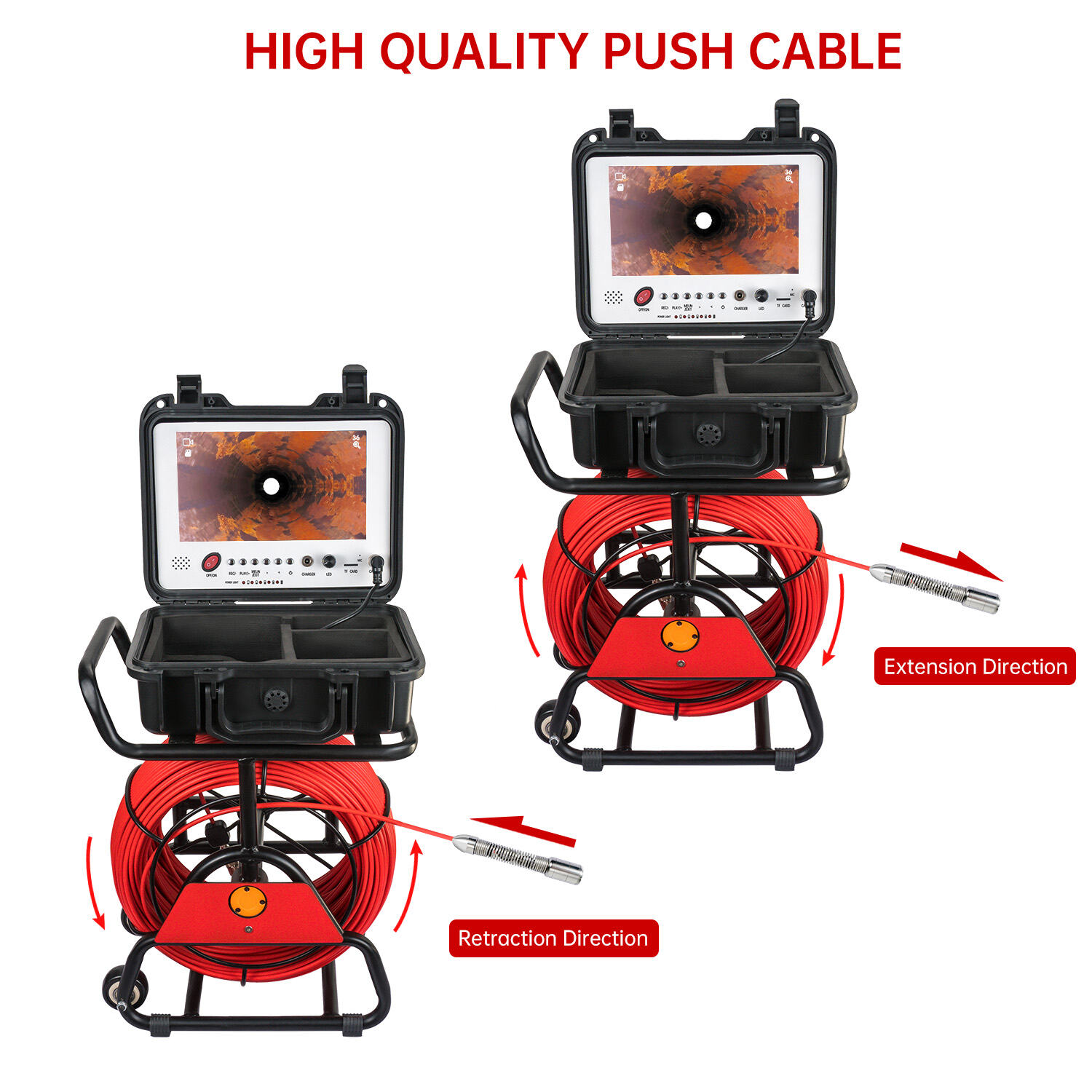

- Only 5mm outer diameter – the perfect balance between flexibility and pushability
- High-strength fiberglass core wrapped in woven polypropylene for zero memory and maximum abrasion resistance
- Smoothly navigates multiple 90° bends in 1½″–8″ pipes
- Standard lengths: 20m / 30m / 40m / 50m (custom lengths available from factory)

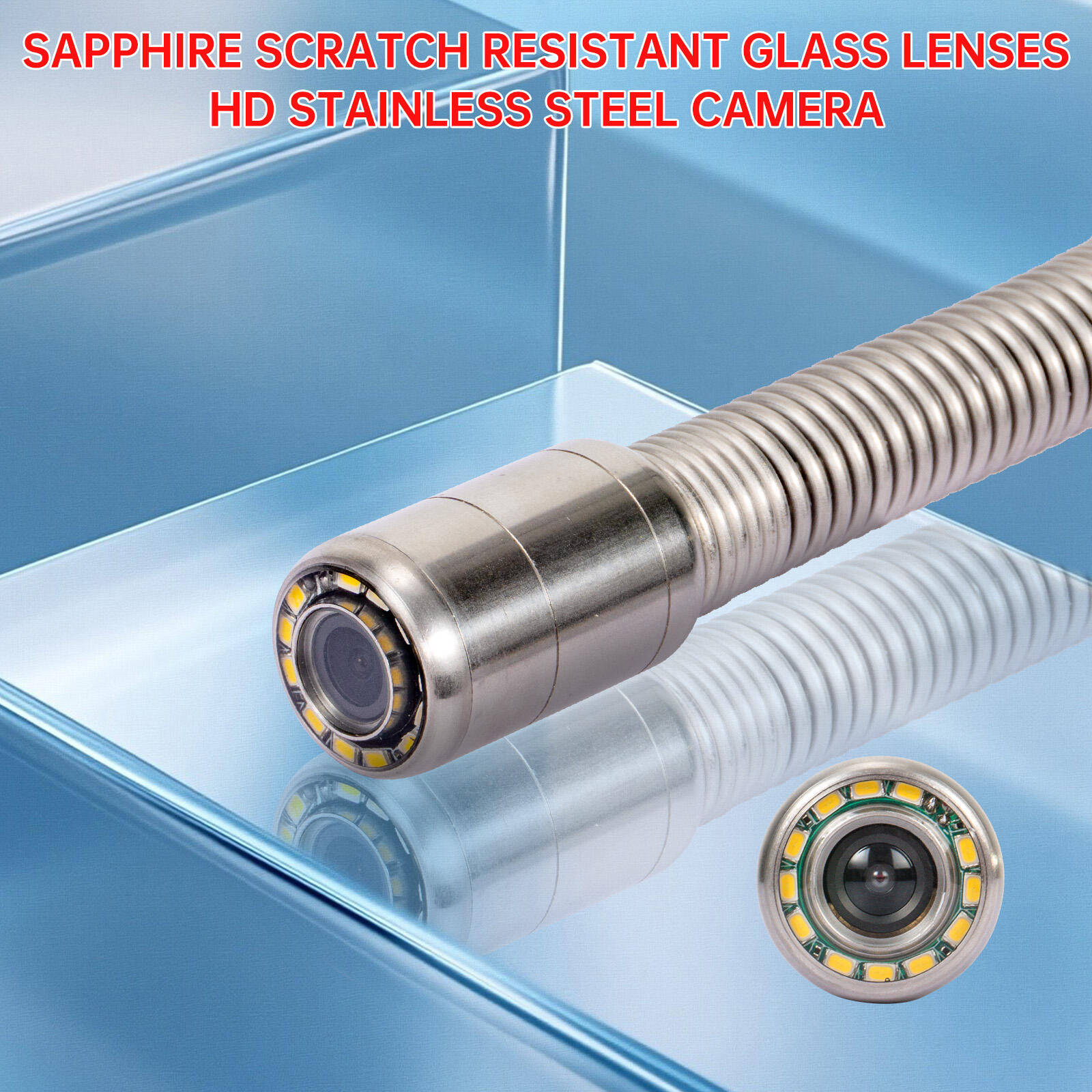

- 23mm (0.9″) 304 stainless steel body with sapphire glass lens cover (scratch-proof)
- Latest-generation 1080P HD CMOS sensor
- 8 high-intensity white LEDs with 10-level adjustable brightness
- 140° ultra-wide viewing angle
- Fully sealed IP68 – tested to 20 meters water depth for 24 hours
- Reinforced aluminum alloy monitor housing
- Shock-proof, drop-tested design
- Complete unit weighs only ~4.5kg (30m version)
- Comes with heavy-duty waterproof carrying case with custom foam
- Main monitor: 4500mAh built-in lithium battery (4–5 hours)
- External 8500mAh–12000mAh power bank connection included (8–12 hours continuous use)
- Smart low-battery warning + auto-shutdown protection
- Custom boot-up logo & language
- Colored cables (black, orange, yellow, blue)
- Private-label carrying case and gift box
- Add meter counter, 512Hz sonde, or self-leveling head
- MOQ only 50–100 units for full customization
|
Feature
|
Specification
|
|---|---|
|
Screen
|
9″ HD IPS 1280×800, capacitive touch + physical buttons
|
|
Video Resolution
|
1920×1080 (1080P) @ 30fps
|
|
Storage
|
Built-in 16GB SD card (supports up to 64GB)
|
|
Zoom
|
36X digital image enlarger
|
|
Camera Head
|
23mm stainless steel, sapphire lens, 1080P HD sensor, 140° FOV
|
|
Lighting
|
8 × ultra-bright LEDs, 10-level adjustable
|
|
Cable
|
5mm fiberglass push rod – 20/30/40/50m options
|
|
Waterproof
|
IP68 (camera head & entire cable) – 20m water tested
|
|
Battery
|
4500mAh (monitor) + external power bank port
|
|
Runtime
|
4–5h internal / 8–12h with external 8500–12000mAh pack
|
|
Recording Format
|
AVI video + WAV audio / JPEG photos
|
|
Functions
|
Audio recording, date/time stamp, image rotation, meter counter (optional)
|
|
Certifications
|
CE, RoHS, FCC, IP68
|
|
Weight
|
≈4.5kg (30m version)
|
|

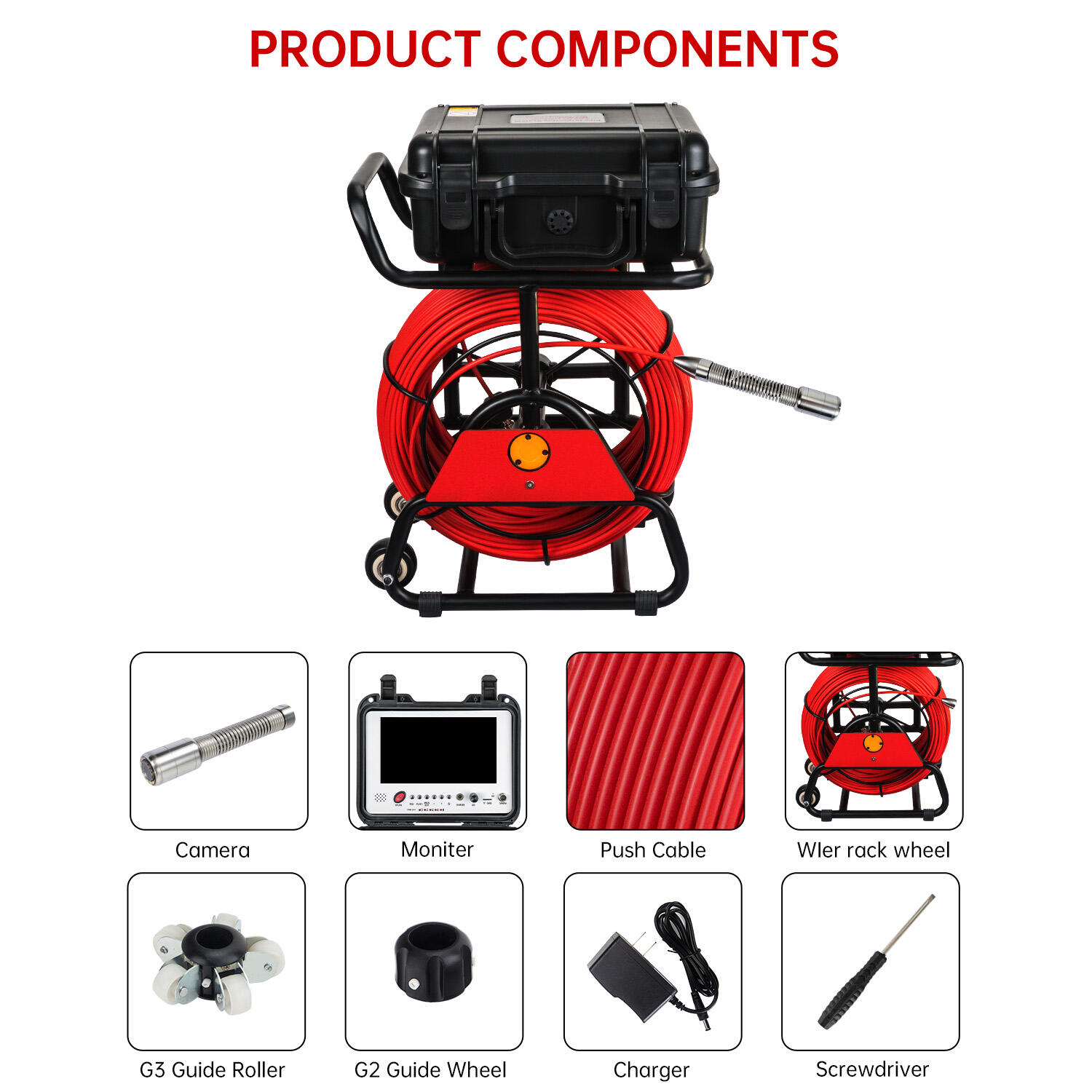

Included Accessories
|
16GB SD card, 45mm & 55mm skid balls, USB charger, aluminum case
|
Frequently Asked Questions (Q&A)
Contact us today for wholesale pricing, free branding mockups, or sample units. Your trusted sewer camera and pipe camera partner since 2012!
- Is the 16GB storage really built-in or do customers still need to buy a card?
Every unit ships with a genuine 16GB high-speed SD card already installed and formatted. You can start recording professional 1080P video with audio the moment you turn it on – no extra purchases required. - How effective is the 36X zoom in real-world pipe inspections?
Extremely effective. Most competitors offer only 4X–8X. Our 36X zoom allows you to read stamped manufacturing dates on PVC pipes, identify the exact type of root intrusion, or locate a lost wedding ring 40 meters away – features our long-term customers say save them hours every week. - Will the 5mm cable get stuck or lose pushability at longer distances?
No. After 10+ years of field testing and continuous improvement, our 5mm fiberglass cable is specifically engineered for distances up to 50 meters while still passing four 90° bends in a 2-inch line. It is the same specification used by many well-known European and American brands. - Are you the actual factory, and what customization options do you offer?
Yes – we are the original manufacturer founded in 2012 with our own 12,000㎡ facility and 200+ employees. We offer complete OEM & ODM services: custom startup logos, cable colors, private-label packaging, meter counter integration, 512Hz sonde, self-leveling camera head, and more. MOQ for full customization starts at just 50–100 units with very competitive factory-direct pricing. - How long will the battery last on a full day of jobs?
The built-in 4500mAh battery gives 4–5 hours of continuous use. For all-day operation, simply connect the included cable to any common 8500mAh–12000mAh power bank (same as your phone) and achieve 8–12 hours without interruption. Many plumbers keep a spare power bank in the van and never run out of power.
Contact us today for wholesale pricing, free branding mockups, or sample units. Your trusted sewer camera and pipe camera partner since 2012!
