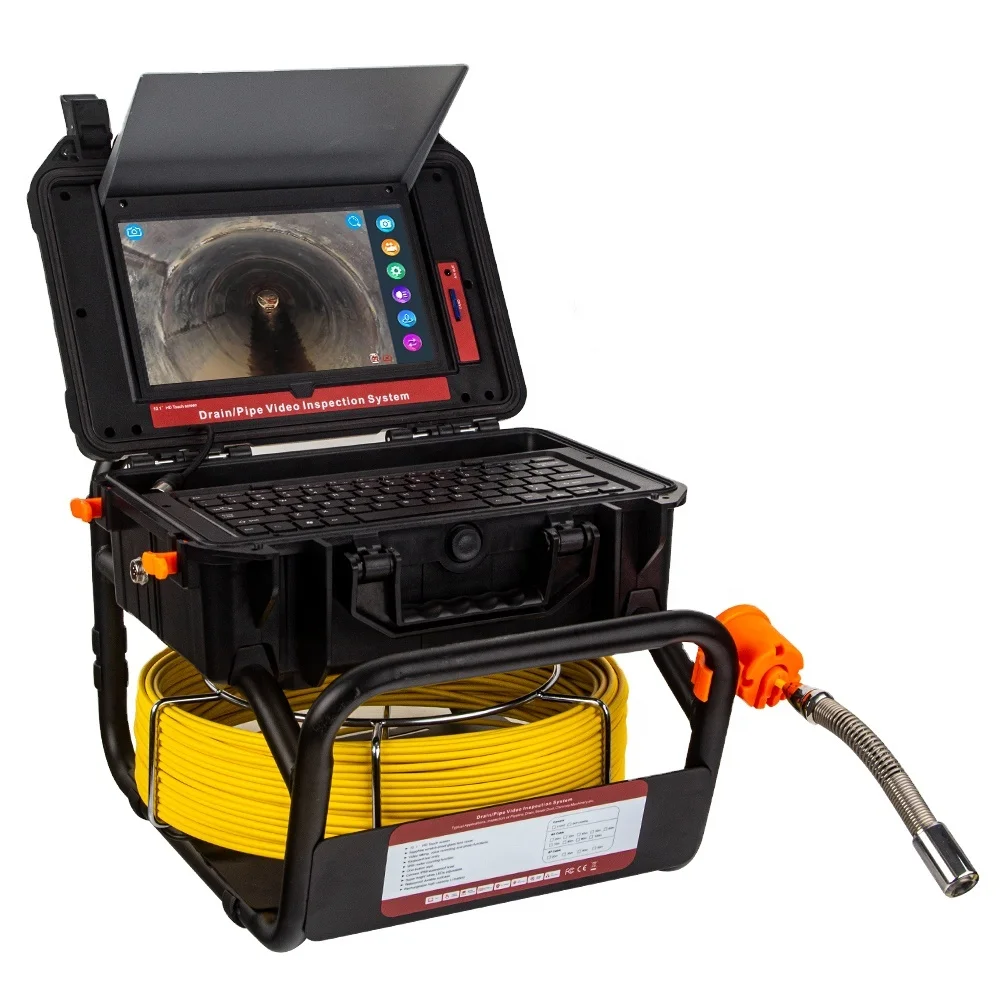

Sewer Pipe Inspection Camera 512Hz Sonde&Self-Leveling, Drian Endoscope 10.1-inch 1080P HD Touch Screen Meter Counter and DVR Video Recording
- Overview
- Recommended Products
- Precise Diagnostics: The 512Hz sonde transmitter and on-screen distance counter enable accurate issue location, saving time and effort.
- Superior Visuals: The 1080P HD self-leveling camera, 140° viewing angle, and 10.1-inch HD screen deliver clear, detailed visuals for efficient inspections.
- Versatile Applications: Suitable for pipes from 25–250mm (1–10 inches), ideal for medium to large pipeline repair projects in residential, commercial, or industrial settings.
- Durable and Reliable: The IP68 waterproof sapphire lens, robust 5mm cable, and stainless steel frame ensure long-term performance in harsh conditions.
- User-Friendly and Portable: The non-touch screen, optional DVR, and engineering box make the system easy to use and transport.
- Camera Diameter: 23mm (0.9 inches)
- Resolution: 1080P HD
- Viewing Angle: 140°
- Waterproof Rating: IP68 (sapphire lens)
- Cable Length: 10–100m (32.8–328ft, optional)

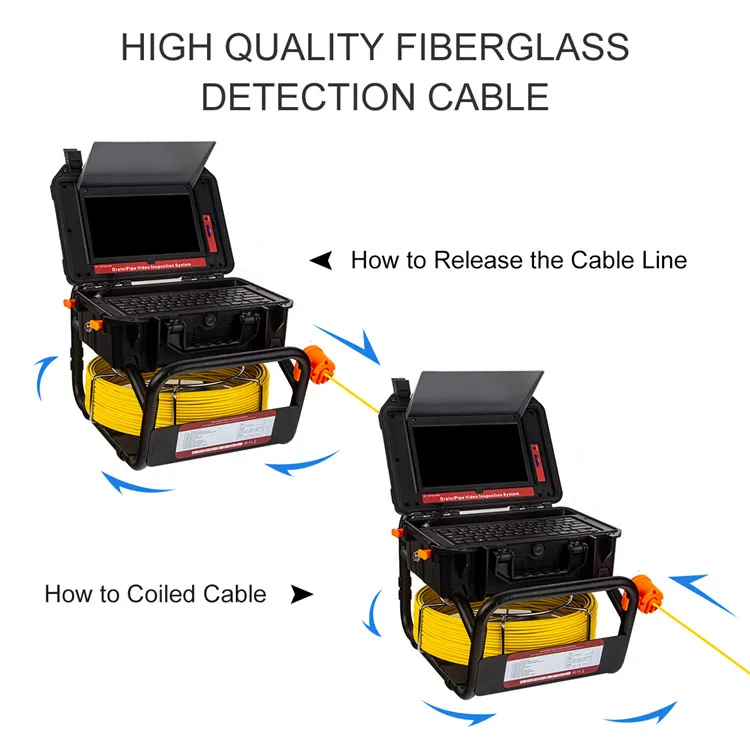

- Cable Diameter: 5mm (semi-rigid, fiberglass, anti-corrosion, cold-resistant)
- Battery: 4500mAh rechargeable lithium battery (6–9 hours of operation)
- Screen: 10.1-inch HD1080P non-touch color screen with sun visor
- Storage: 16GB TF card (with optional DVR function)
- Lighting: 12 adjustable LED lights with 3 brightness levels
-
Suitable Pipe Size:
- Straight Pipes: 25–150mm (0.99–5.90 inches)
- Right-Angle Pipes: 50–150mm (1.97–5.90 inches)
- Additional Features: 512Hz sonde transmitter, on-screen distance counter, 3x digital zoom
- Operating Temperature: -20°C to 60°C
- Storage Temperature: -20°C to 60°C
- Storage: Durable engineering box

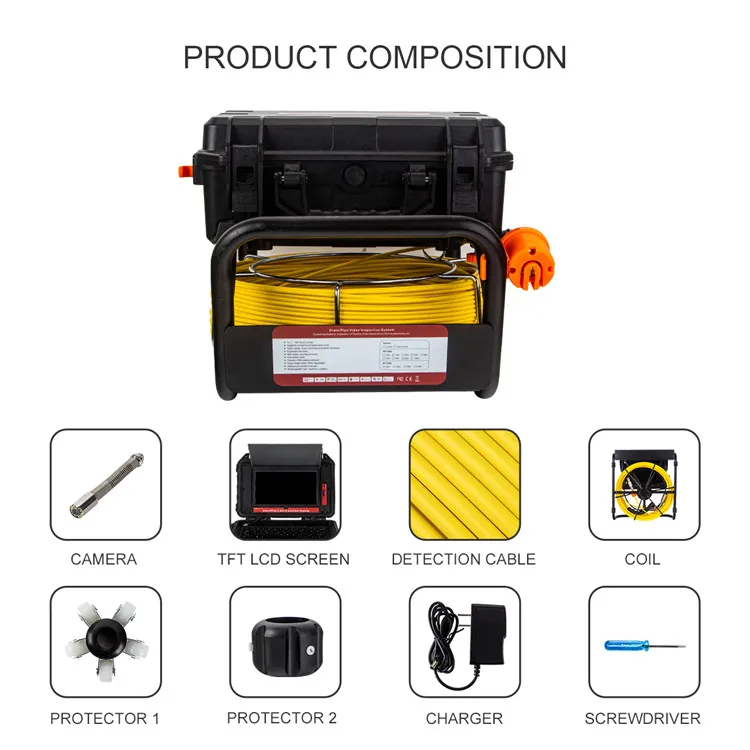

- 1 x 23mm HD Pipe Inspection Camera (self-leveling)
- 1 x 10.1-Inch HD1080P Non-Touch Color Screen
- 1 x Semi-Rigid Cable (10–100m, optional)
- 1 x 16GB TF Card (with optional DVR function)
- 1 x Rechargeable 4500mAh Battery
- 1 x Protective Engineering Box
- 1 x User Manual
- Sewer and Drain Inspections: Identify clogs, leaks, or breakages in residential or commercial sewer lines and drains.
- Pipeline Diagnostics: Inspect industrial pipelines for corrosion, blockages, or structural issues.
- Duct and Wall Inspections: Examine HVAC ducts, electrical conduits, or other confined spaces.
- Underground Systems: Investigate stormwater systems or underground pipelines for debris or damage.
- Professional and Home Use: Perfect for plumbers, contractors, inspectors, engineers, or homeowners troubleshooting plumbing issues.
Product Description
Specification
Place of Origin |
China |
Monitor Size |
10.1-inch 1080P HD Touch Screen Monitor |
Charger |
AC 100-240V,DC 12.6V 100MA |
Battery |
12V 4500mAh;6-9H; Rechargable Lithium Battery |
Cable length |
5mm Dia.; 20-100M Optional; Fiberglass rod |
Camera diameter/ material |
23MM/Stainless steel |
Waterproof |
IP68 |
Camera light Source |
12 LED With High White Lights |
Warrenty |
1 Year |
Keyword |
Pipe Inspection Camera |
Product OverviewThe 1080P Sewer Inspection Camera is engineered to streamline pipeline inspections with advanced features and user-friendly design. Its 23mm (0.9-inch) self-leveling camera with a 1080P HD lens and 140° wide viewing angle captures sharp, upright images and videos, even in dark or wet environments, thanks to its IP68 waterproof sapphire lens and 12 adjustable LED lights. The 9-inch HD1080P non-touch screen with a sun visor ensures clear visibility in all lighting conditions. A built-in 512Hz sonde transmitter and on-screen distance counter enable precise issue location when paired with a locator (not included). With a 4500mAh battery offering 6–9 hours of operation and optional cable lengths from 10m to 100m, this endoscope camera kit is versatile and robust for both residential and industrial applications.
Key Features1. Precise Locating with 512Hz Sonde and Distance CounterThe sewer inspection camera features a built-in 512Hz sonde transmitter for accurate location tracking when used with a compatible locator (not included). An on-screen distance counter displays the cable’s length within the pipeline, enabling quick and precise identification of clogs, leaks, or breakages. The camera is suitable for straight pipes (25–150mm / 0.99–5.90 inches) and right-angle pipes (50–150mm / 1.97–5.90 inches), ensuring versatility across various pipeline configurations.2. Crystal-Clear 10.1-Inch HD1080P ScreenThe pipe camera includes a 10.1-inch HD1080P non-touch color screen with a sun visor, providing vivid and clear visuals even in bright sunlight. The screen supports easy operations like video recording, photo capture, and audio playback (via computer or headphone output). With optional DVR functionality and a 16GB TF card, users can store ample inspection footage for analysis or sharing. An input keyboard allows for recording inspection data, enhancing documentation efficiency.3. Self-Leveling Camera with Advanced FeaturesThe 23mm drain inspection camera features a self-leveling mechanism, ensuring images remain upright for accurate orientation during inspections. The IP68 waterproof sapphire lens withstands harsh, wet conditions, while 12 adjustable LED lights with three brightness levels provide optimal illumination in dark environments. A 3x digital zoom and 140° wide-angle view capture every detail, ensuring no issue goes unnoticed.4. Robust 5mm Semi-Rigid CableThe sewer snake camera is equipped with a 5MM-diameter semi-rigid cable made from durable fiberglass, available in lengths from 10m (32.8ft) to 100m (328ft). This thickened cable excels in passability and durability, navigating bends and long pipes effortlessly while maintaining resilience in dark, damp conditions. Optional meter markings provide precise positional tracking, making it easy to locate blockages or damage without breakage or tearing.5. Long-Lasting Battery and Portable DesignPowered by a 4500mAh rechargeable lithium battery, the endoscope camera supports 6–9 hours of continuous operation, ideal for extended inspections. Battery status indicators ensure timely recharging. The system is housed in a sturdy stainless steel frame and packaged in a durable engineering box, offering stable support and portability for fieldwork or home use.
Why Choose This Sewer Inspection Camera?
Specifications
Package Includes
ApplicationsThis10.1inch HD 1080P sewer inspection camera is designed for a wide range of inspection tasks, covering 99.9% of medium to large pipeline repair projects:
Frequently Asked Questions (Q&A)Q1: Is the sewer inspection camera waterproof?
Yes, the sewer camera features an IP68 waterproof sapphire lens, making it fully submersible and ideal for wet or submerged environments like sewers and drains.
Key Features1. Precise Locating with 512Hz Sonde and Distance CounterThe sewer inspection camera features a built-in 512Hz sonde transmitter for accurate location tracking when used with a compatible locator (not included). An on-screen distance counter displays the cable’s length within the pipeline, enabling quick and precise identification of clogs, leaks, or breakages. The camera is suitable for straight pipes (25–150mm / 0.99–5.90 inches) and right-angle pipes (50–150mm / 1.97–5.90 inches), ensuring versatility across various pipeline configurations.2. Crystal-Clear 10.1-Inch HD1080P ScreenThe pipe camera includes a 10.1-inch HD1080P non-touch color screen with a sun visor, providing vivid and clear visuals even in bright sunlight. The screen supports easy operations like video recording, photo capture, and audio playback (via computer or headphone output). With optional DVR functionality and a 16GB TF card, users can store ample inspection footage for analysis or sharing. An input keyboard allows for recording inspection data, enhancing documentation efficiency.3. Self-Leveling Camera with Advanced FeaturesThe 23mm drain inspection camera features a self-leveling mechanism, ensuring images remain upright for accurate orientation during inspections. The IP68 waterproof sapphire lens withstands harsh, wet conditions, while 12 adjustable LED lights with three brightness levels provide optimal illumination in dark environments. A 3x digital zoom and 140° wide-angle view capture every detail, ensuring no issue goes unnoticed.4. Robust 5mm Semi-Rigid CableThe sewer snake camera is equipped with a 5MM-diameter semi-rigid cable made from durable fiberglass, available in lengths from 10m (32.8ft) to 100m (328ft). This thickened cable excels in passability and durability, navigating bends and long pipes effortlessly while maintaining resilience in dark, damp conditions. Optional meter markings provide precise positional tracking, making it easy to locate blockages or damage without breakage or tearing.5. Long-Lasting Battery and Portable DesignPowered by a 4500mAh rechargeable lithium battery, the endoscope camera supports 6–9 hours of continuous operation, ideal for extended inspections. Battery status indicators ensure timely recharging. The system is housed in a sturdy stainless steel frame and packaged in a durable engineering box, offering stable support and portability for fieldwork or home use.
Why Choose This Sewer Inspection Camera?
Specifications
Package Includes
ApplicationsThis10.1inch HD 1080P sewer inspection camera is designed for a wide range of inspection tasks, covering 99.9% of medium to large pipeline repair projects:
Frequently Asked Questions (Q&A)Q1: Is the sewer inspection camera waterproof?
Yes, the sewer camera features an IP68 waterproof sapphire lens, making it fully submersible and ideal for wet or submerged environments like sewers and drains.
Q2: Can the camera record videos?
Yes, with the optional DVR function, the pipe inspection camera supports a 16GB TF card for recording high-quality audio and video, perfect for documentation and analysis.
Yes, with the optional DVR function, the pipe inspection camera supports a 16GB TF card for recording high-quality audio and video, perfect for documentation and analysis.
Q3: How long does the battery last?
The 4500mAh rechargeable lithium battery provides 6–9 hours of continuous operation, depending on usage conditions such as LED brightness or DVR recording.
The 4500mAh rechargeable lithium battery provides 6–9 hours of continuous operation, depending on usage conditions such as LED brightness or DVR recording.
Q4: What types of pipes can this camera inspect?
The drain camera is suitable for straight pipes (25–150mm / 0.99–5.90 inches) and right-angle pipes (50–150mm / 1.97–5.90 inches), covering a wide range of residential, commercial, and industrial pipelines.
The drain camera is suitable for straight pipes (25–150mm / 0.99–5.90 inches) and right-angle pipes (50–150mm / 1.97–5.90 inches), covering a wide range of residential, commercial, and industrial pipelines.
Q5: Does the camera work in bright sunlight?
Yes, the 10.1-inch HD1080P non-touch screen includes a sun visor, ensuring clear visibility even in direct sunlight.
Yes, the 10.1-inch HD1080P non-touch screen includes a sun visor, ensuring clear visibility even in direct sunlight.
Q6: How does the self-leveling feature work?
The sewer snake camera has a self-leveling mechanism that keeps images upright, providing accurate orientation of obstacles for efficient inspections.
The sewer snake camera has a self-leveling mechanism that keeps images upright, providing accurate orientation of obstacles for efficient inspections.
Q7: Can the camera locate issues in the pipeline?
Yes, the built-in 512Hz sonde transmitter and on-screen distance counter allow precise location tracking when used with a compatible locator (not included).
Yes, the built-in 512Hz sonde transmitter and on-screen distance counter allow precise location tracking when used with a compatible locator (not included).
Q8: What cable length options are available?
The endoscope camera kit offers cable lengths from 10m to 100m (32.8ft to 328ft), allowing users to choose the appropriate length for their inspection needs.
The endoscope camera kit offers cable lengths from 10m to 100m (32.8ft to 328ft), allowing users to choose the appropriate length for their inspection needs.
