Sewer Inspection Camera 512HZ Sonde/Transmitter+Locator/Receiver, Drain Camera with 10.1 Inch 1080P Touch Screen Meter Counter 16GB Audio+Video for Pipes Inspections
WOSHIJIE Factory Direct Supply Professional Pipe Inspection System, 512Hz Sonde Transmitter & Locator for Precise Positioning, Self-Leveling 1080P HD Camera, 10.1" Touch Screen with Meter Counter & 16GB Audio/Video Recording. Bulk Wholesale & OEM/ODM Customization Available
Brand:
WOSHIJIE
- Overview
- Recommended Products
WOSHIJIE Supply Pipe Inspection Camera 10.1 1080P Screen, Self-Leveling 512HZ Transmitter and 512Hz Receiver Video/Audio Recording 3X image enlarge/Meter Counter
Specification
512Hz Built-in Sonde Transmitter
This endoscope camera has a built-in 512Hz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’s position underground.（Locator Receiver is included）
This endoscope camera has a built-in 512Hz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’s position underground.（Locator Receiver is included）
Image Self-balancing Camera
The camera with Auto self-balancing Camera Video + Audio + 3X Image Enlarge
The Pipeline Wall Sewer Inspection Snake Camera built in SD Card slot, 16GB TF card included, it is available to view live video，audio，photographand save audio video clips and photos.You can record the inspections and playback on PC with card reader.
The camera with Auto self-balancing Camera Video + Audio + 3X Image Enlarge
The Pipeline Wall Sewer Inspection Snake Camera built in SD Card slot, 16GB TF card included, it is available to view live video，audio，photographand save audio video clips and photos.You can record the inspections and playback on PC with card reader.

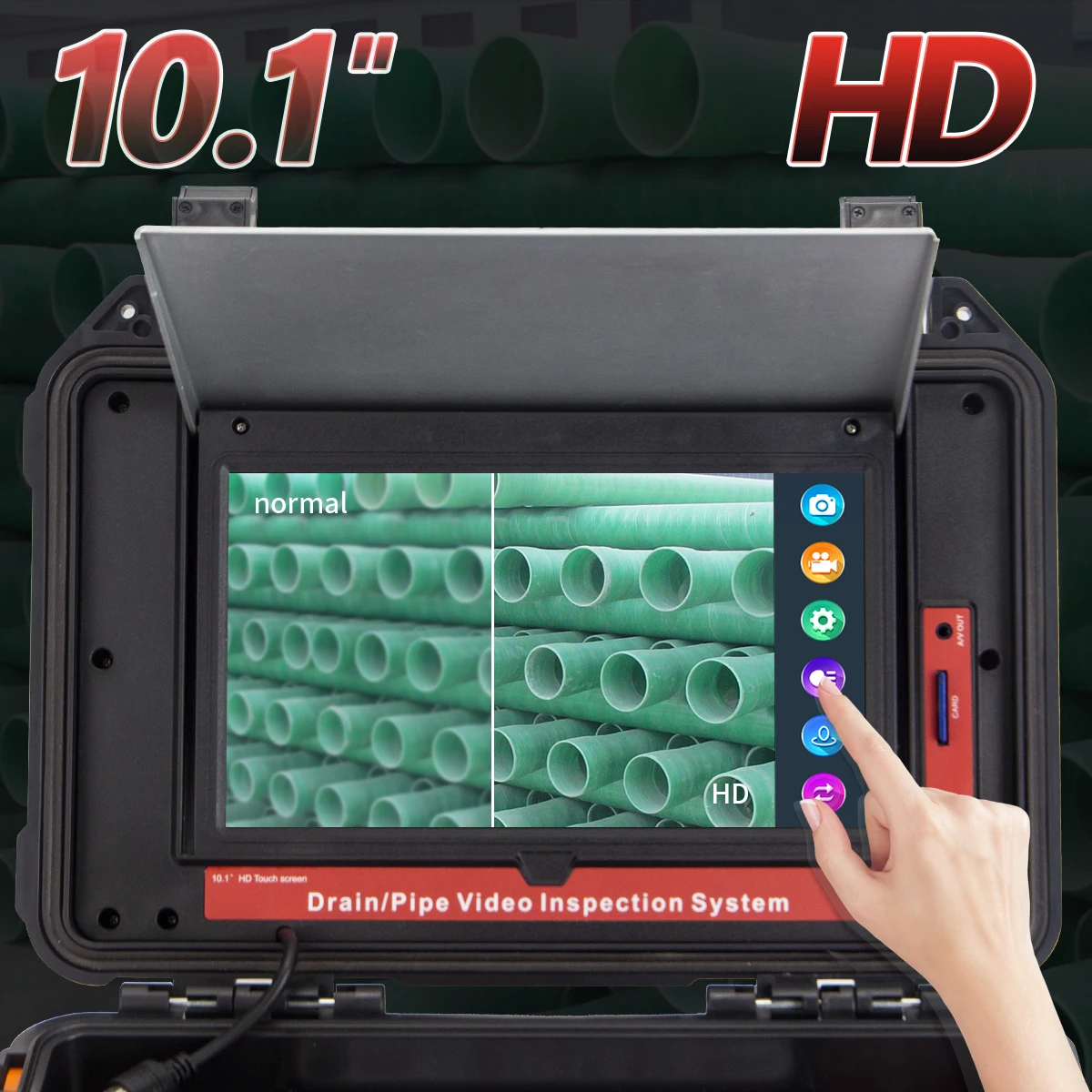

MONITOR&KEYBOARD&CABLE
This Plumbing Camera is designed with a 10.1 inches color PSP monitor with a sun-visor for
outdoor inspections.On-screen time / date/Meter Counter.Text writing will show on the screen and can be keep in the video when recording.The material of wire is fiberglass rod(diameter: 4.8MM), anti-corrosion/cold/tensile.

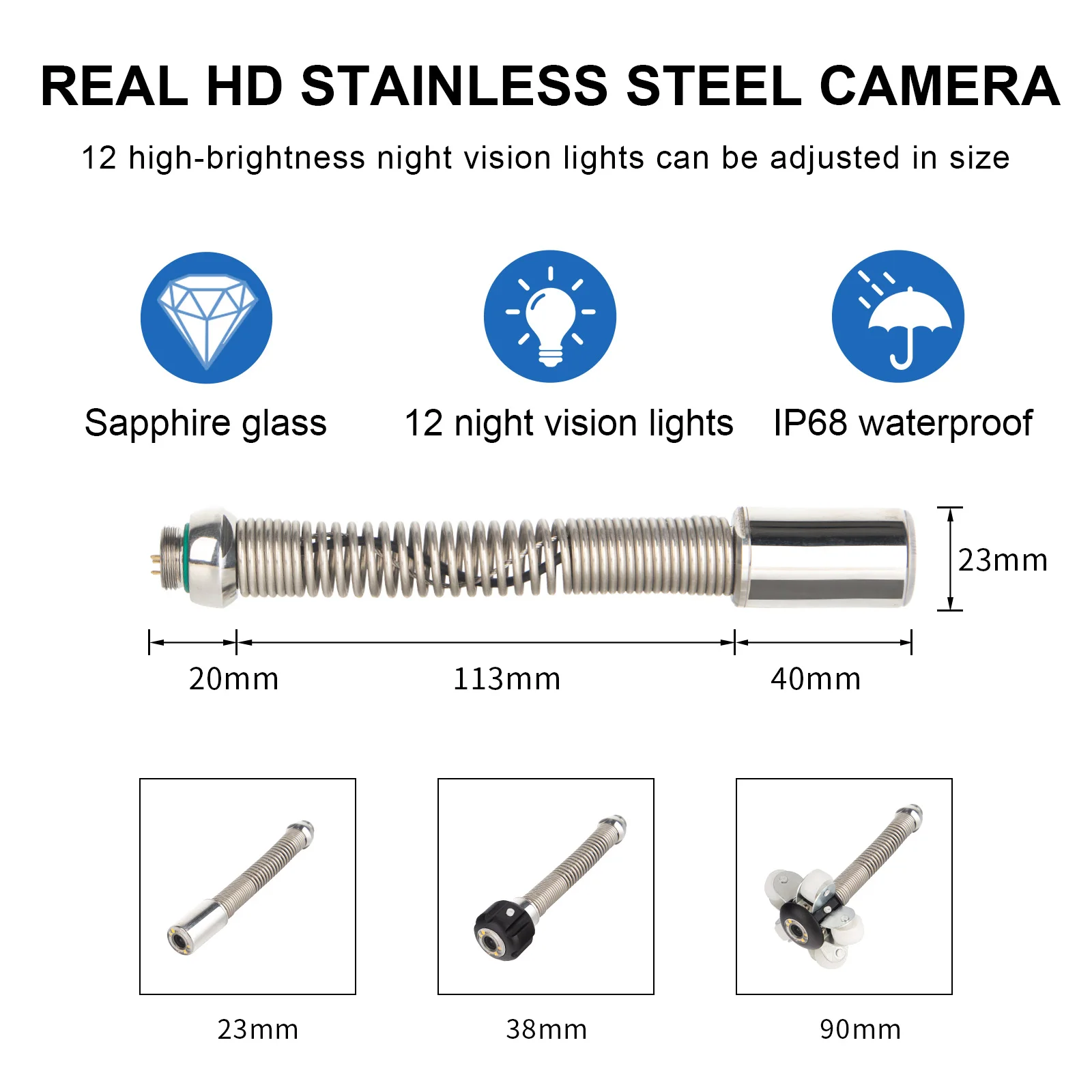

Camera
Drain Pipe Sewer Pipeline Inspection Camera measures 0.9-inch/23mm with #304 stainless steel housing and the glass of the camera is make from sapphire glass. It with 12 leds and adjustable;
Waterproof IP68. It is suitable for pipes at 25 -200mm (1 - 8 inch), camera with super flexible spring at length of 173mm, easily go through 90° bend pipes at 45mm (2-inches).
WATERPROOF&NIGHT VISION
The Drain Sewer Pipeline Industrial Endoscope System with HD 1080P high-definition waterproof IP68 #304 stainless steel camera+tipped probe+140°wide viewing angle what make it clear when you inspect some places hard to watch.12 pcs adjustable LEDs to illuminate the hard-to-reach inspection area.Inspections will be seen more clearly in the dark environment.
Monitor:9inch; Cable:7mm
Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 9 inches color HD monitor with a sun-visor for outdoor inspections.The material of wire is fiberglass rod(diameter: 7MM),anti-corrosion/cold/tensile.
PORTABLE CARRY CASE&LONG BATTERY(12V 4500mAh)
Pipe Wall Sewer Inspection Snake Camera Kit with heavy duty padded aluminum case stores all contents, convenient to carry around.
12V 4500mAh Li-battery included supports approximate 6 hours of continuous use.
VERSATILE
Drain Pipe/Sewer Pipeline Inspection Snake Camera can be used under floors, inside walls, attics, gutters and roof even and can even be used to view mold and water damage.Pipe Sewer Industrial Endoscope Pipe. Video Inspection System also applicable to air-conditioner pipe, vacuum pipeline, Sunken pipe etc.It is convenient to use and avoid danger at the utmost.
WARRANTY & FAST CUSTOMER SERVICE
12 MONTHS SERVICE. In this 12 months, our factory support the partys for free for replacement.
Out of warranty, if you need assistance, including pre-order/after-sales service, please do not hesitate to contact us. All pipeline inspection camera spare parts/accessories for repair or replacement, factory offer very cheap price,you do not need to worry about the cost and availability of the replacements.
Details Images

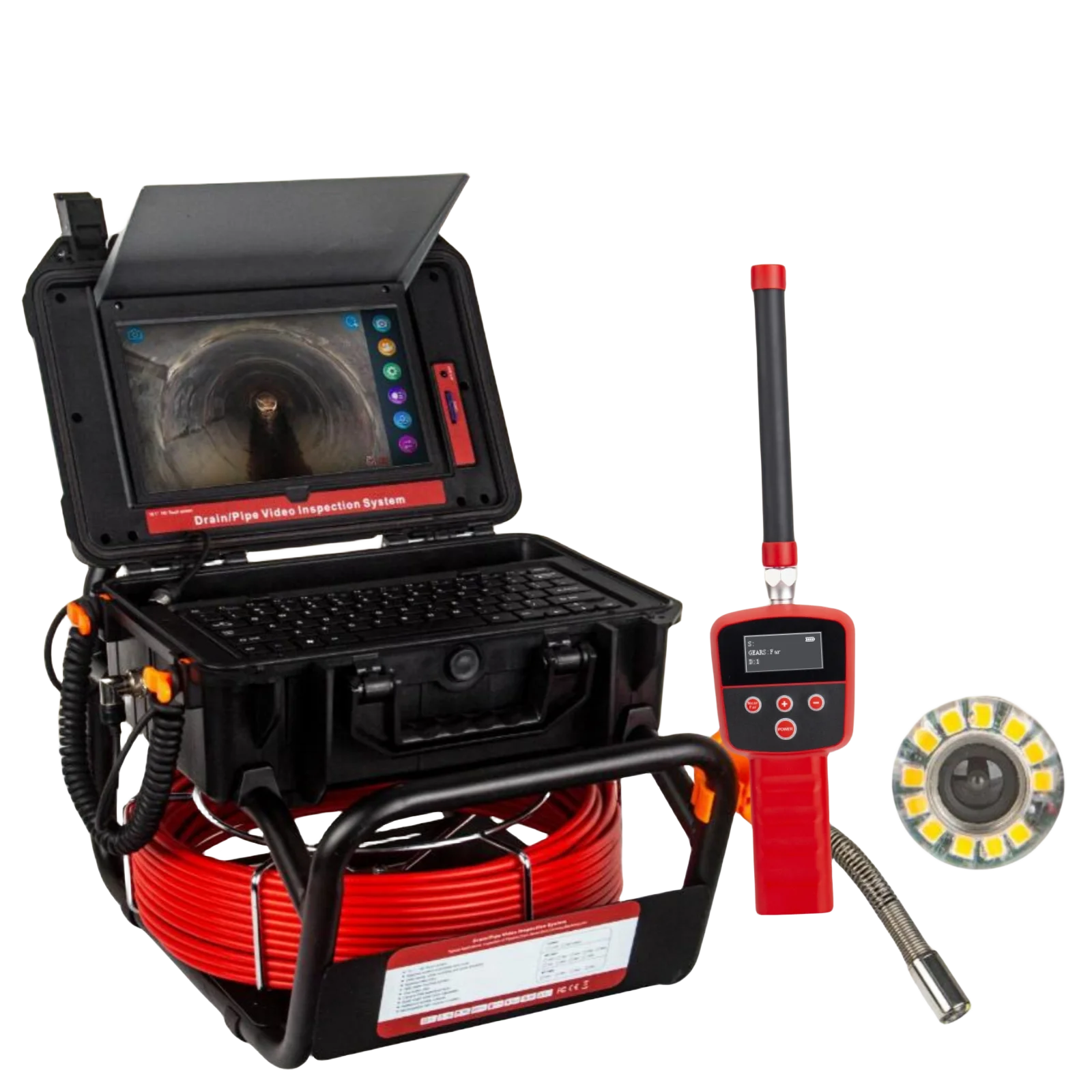

Pipe Inspection Camera System
This professional-grade pipe inspection camera is designed for plumbing, construction, and industrial inspection businesses.
It combines 512Hz precision location, a self-leveling HD camera, and video/audio recording in a portable, rugged system — making it ideal for distributors and agencies looking for a high-demand, high-margin product.
Key Features for Professional Use
1. 512Hz Built-in Sonde Transmitter + Receiver
Integrated 512Hz transmitter for pinpoint location of blockages or defects without unnecessary digging.
Included 512Hz receiver detects the sonde signal to quickly locate the camera head underground.
Integrated 512Hz transmitter for pinpoint location of blockages or defects without unnecessary digging.
Included 512Hz receiver detects the sonde signal to quickly locate the camera head underground.
2. Self-Leveling HD Camera
23mm stainless steel camera head with auto self-leveling keeps the video upright at all times.
HD 1080P resolution, 140° wide viewing angle, and sapphire glass lens for durability.
12 adjustable LED lights for clear viewing in low-light or dark pipes.
IP68 waterproof rating for use in wet environments.
3. Video + Audio Recording with 3X Zoom
Built-in DVR function with 16GB SD card included.
Capture video, audio, and still images; playback available on PC.
3X digital zoom to focus on details during inspections.

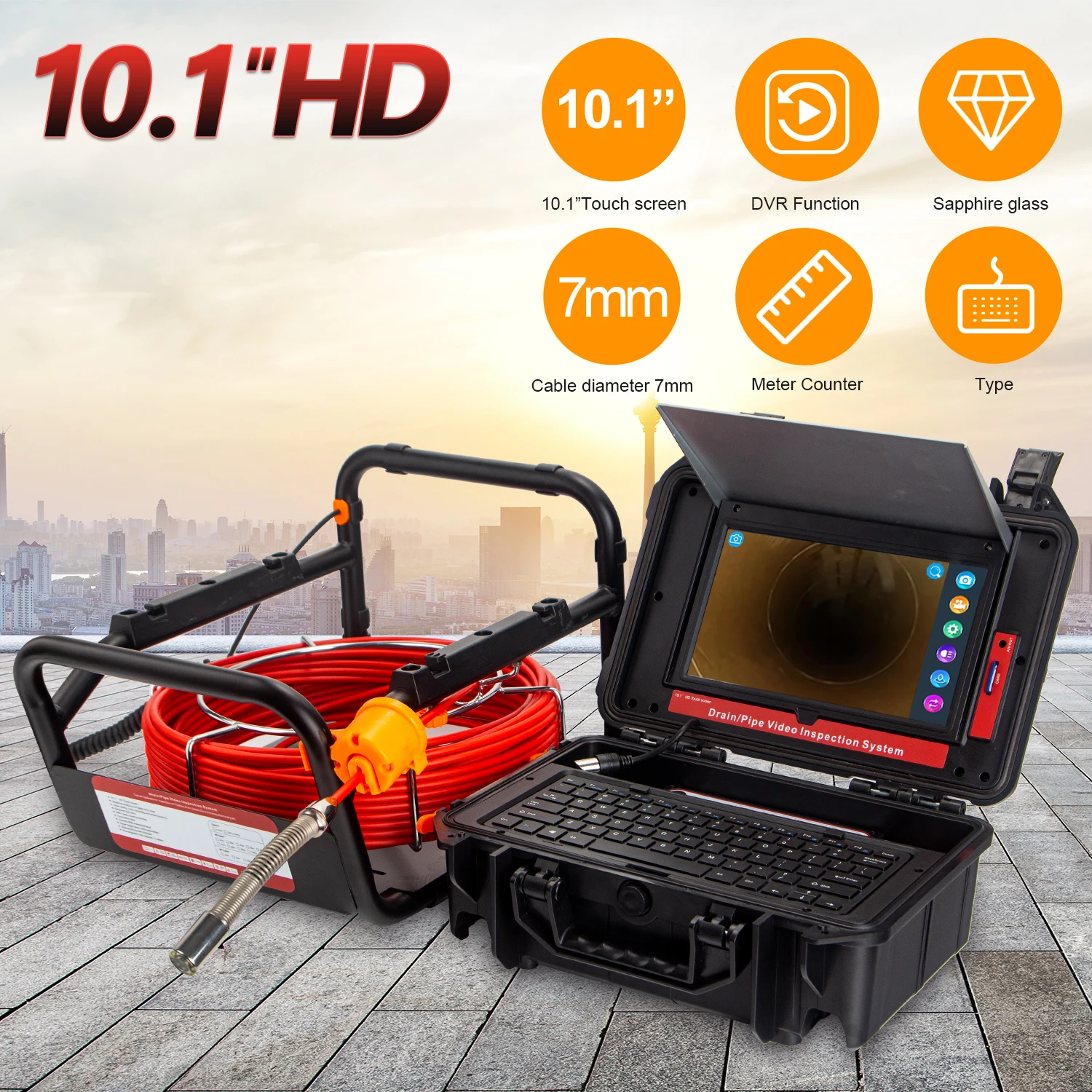

4. Large Monitor with Keyboard Input
10.1-inch color HD monitor (with optional 9-inch version) and sun visor for outdoor use.
On-screen display of date, time, and meter counter.
Built-in text input via keyboard — notes appear in real-time on video recordings.
5. Durable Cable and Reel System
Fiberglass push rod cable, anti-corrosion, cold-resistant, and tensile strength rated.
Cable diameter: 4.8mm or 7mm; lengths available: 20m, 30m, 50m Or Customization
Stainless steel reel for smooth operation and long service life.
6. Portable and Long-Lasting Power
Heavy-duty aluminum/ABS carry case for protection and easy transport.
12V 4500mAh rechargeable Li-battery supports 6–9 hours of continuous use.
7. Wide Application
Suitable for:
Sewer and drain inspection
Water supply pipelines
HVAC ductwork
Underfloor and wall cavity inspections
Roof gutters and downpipes
Mold and water damage investigations
Technical Specifications
Camera
● Material: Stainless steel (#304)
● Diameter: 23mm, Length: 45mm
● Viewing Angle: 140°
● Waterproof Rating: IP68
● Lighting: 12 adjustable LEDs
● Operating Temp: -20°C ~ 60°C
● Storage Temp: -50°C ~ 60°C
● Diameter: 23mm, Length: 45mm
● Viewing Angle: 140°
● Waterproof Rating: IP68
● Lighting: 12 adjustable LEDs
● Operating Temp: -20°C ~ 60°C
● Storage Temp: -50°C ~ 60°C

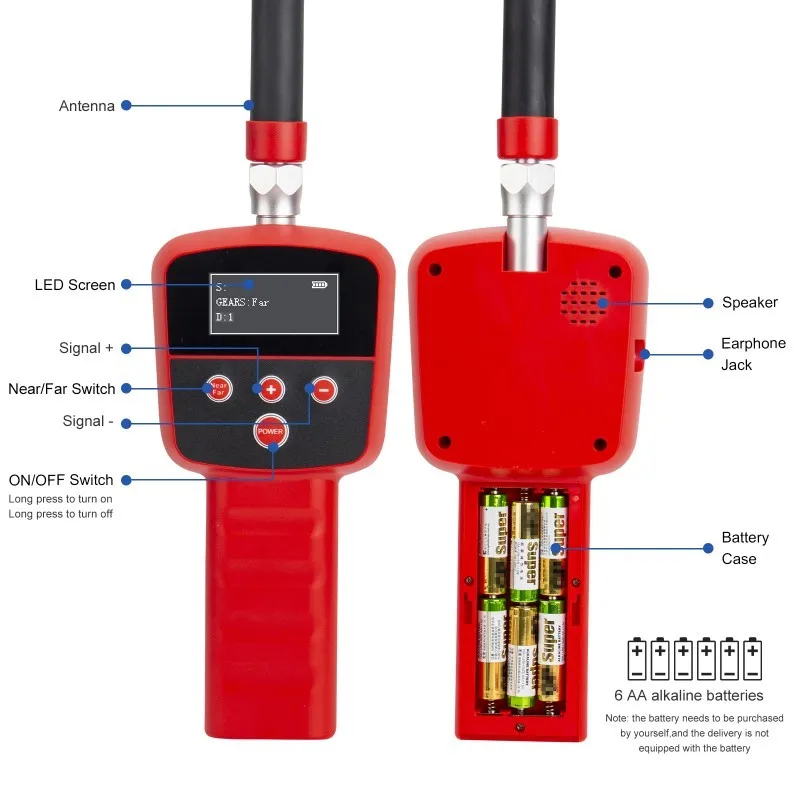

512Hz Receiver
● Battery Life: 6–9 hours
● Frequency: 512Hz
● Operating Temp: -20°C ~ 50°C
● Frequency: 512Hz
● Operating Temp: -20°C ~ 50°C
Cable
● Material: Fiberglass rod
● Diameter: 4.8mm or 7mm
● Lengths: 20m / 30m / 50m (custom options available)
● Diameter: 4.8mm or 7mm
● Lengths: 20m / 30m / 50m (custom options available)
Power
● Charger: AC100–240V / DC12.6V 1000mA
● Battery: 4500mAh Li-ion
● Usage Time: 6–9 hours
● Battery: 4500mAh Li-ion
● Usage Time: 6–9 hours
Dimensions & Weight
● Product Size: 540 × 480 × 360 mm
● Net Weight: 12 kg (20m)
● Package Weight: 18 kg (20m) — add 0.5kg for each additional 10m cable
● Net Weight: 12 kg (20m)
● Package Weight: 18 kg (20m) — add 0.5kg for each additional 10m cable

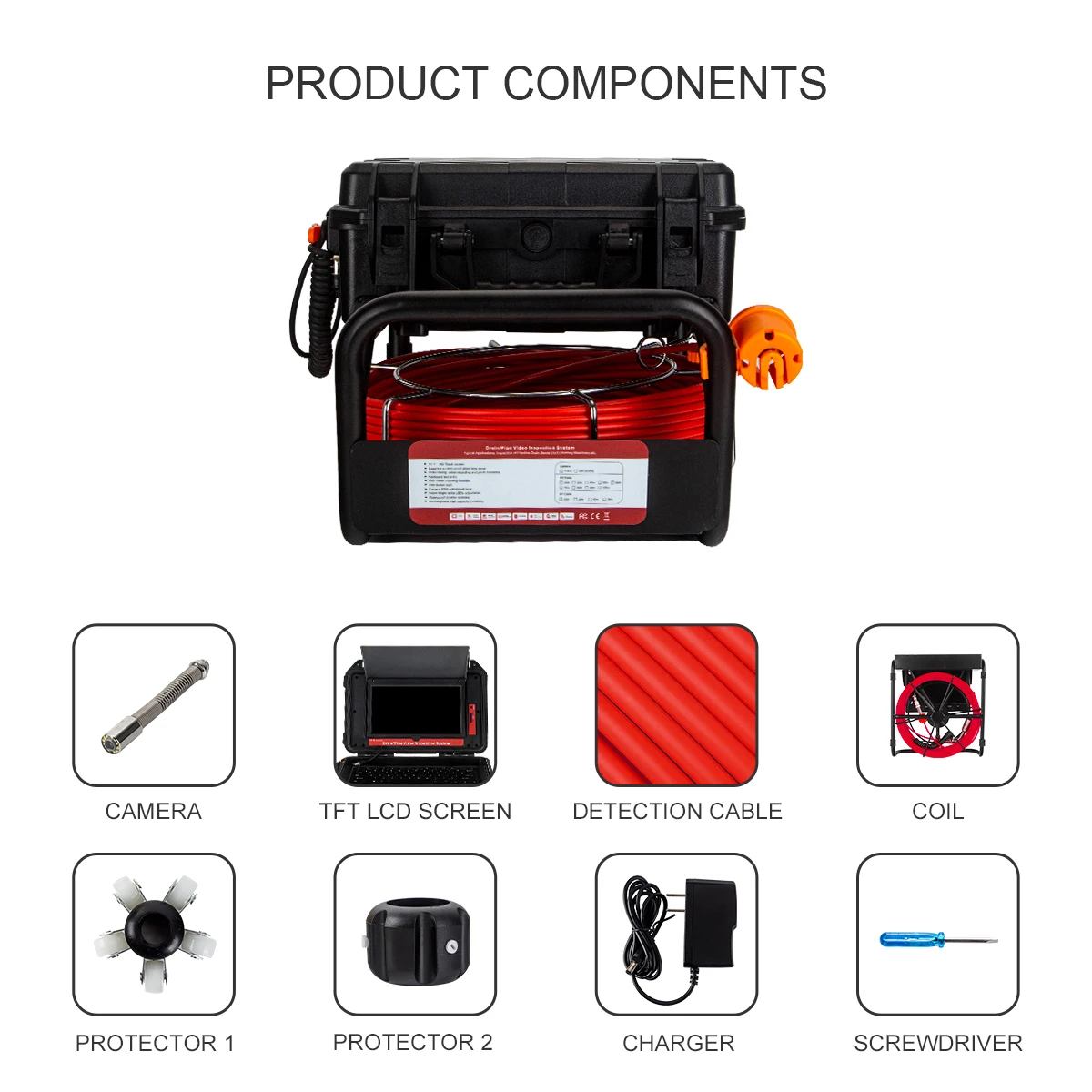

Package Contents
● 1 × HD Camera Head
● 1 × 512Hz Receiver
● 1 × Sun Visor
● 1 × HD Monitor
● 1 × Connecting Cable
● 1 × ABS Carry Case
● 1 × Charger
● 1 × Stainless Steel Cable Reel
● 1 × Screwdriver
● 1 × Keyboard
● 2 × Camera Protective Covers
● 1 × 512Hz Receiver
● 1 × Sun Visor
● 1 × HD Monitor
● 1 × Connecting Cable
● 1 × ABS Carry Case
● 1 × Charger
● 1 × Stainless Steel Cable Reel
● 1 × Screwdriver
● 1 × Keyboard
● 2 × Camera Protective Covers
Value for Distributors, Agencies & Shopshippers
● High Market Demand:Essential tool for plumbers, contractors, and maintenance companies.
● Attractive Margins:Competitive wholesale pricing with strong resale potential.
● Custom Branding:OEM/Private label options available.
● Parts & Support:Affordable spare parts and fast technical assistance from factory.
● Attractive Margins:Competitive wholesale pricing with strong resale potential.
● Custom Branding:OEM/Private label options available.
● Parts & Support:Affordable spare parts and fast technical assistance from factory.
FAQ
Q: Can I customize cable length or monitor size?
A: Yes, we offer 20m, 30m, and 50m cable options, and both 9-inch and 10.1-inch monitor options.
Q: Does it include the 512Hz receiver?
A: Yes, the package comes with both the 512Hz transmitter (in the camera head) and the receiver.
Q: What pipe sizes can it inspect?
A: Suitable for pipes from 25mm (1 inch) to 200mm (8 inches).
Q: Is the camera waterproof?
A: Yes, IP68-rated, fully submersible for wet pipeline environments.
Q: Do you offer bulk discounts?
A: Yes, tiered wholesale pricing is available — contact us for distributor rates.
Q: What after-sales support is available?
A: 12-month warranty with free parts replacement; lifetime paid parts supply at low factory cost.
