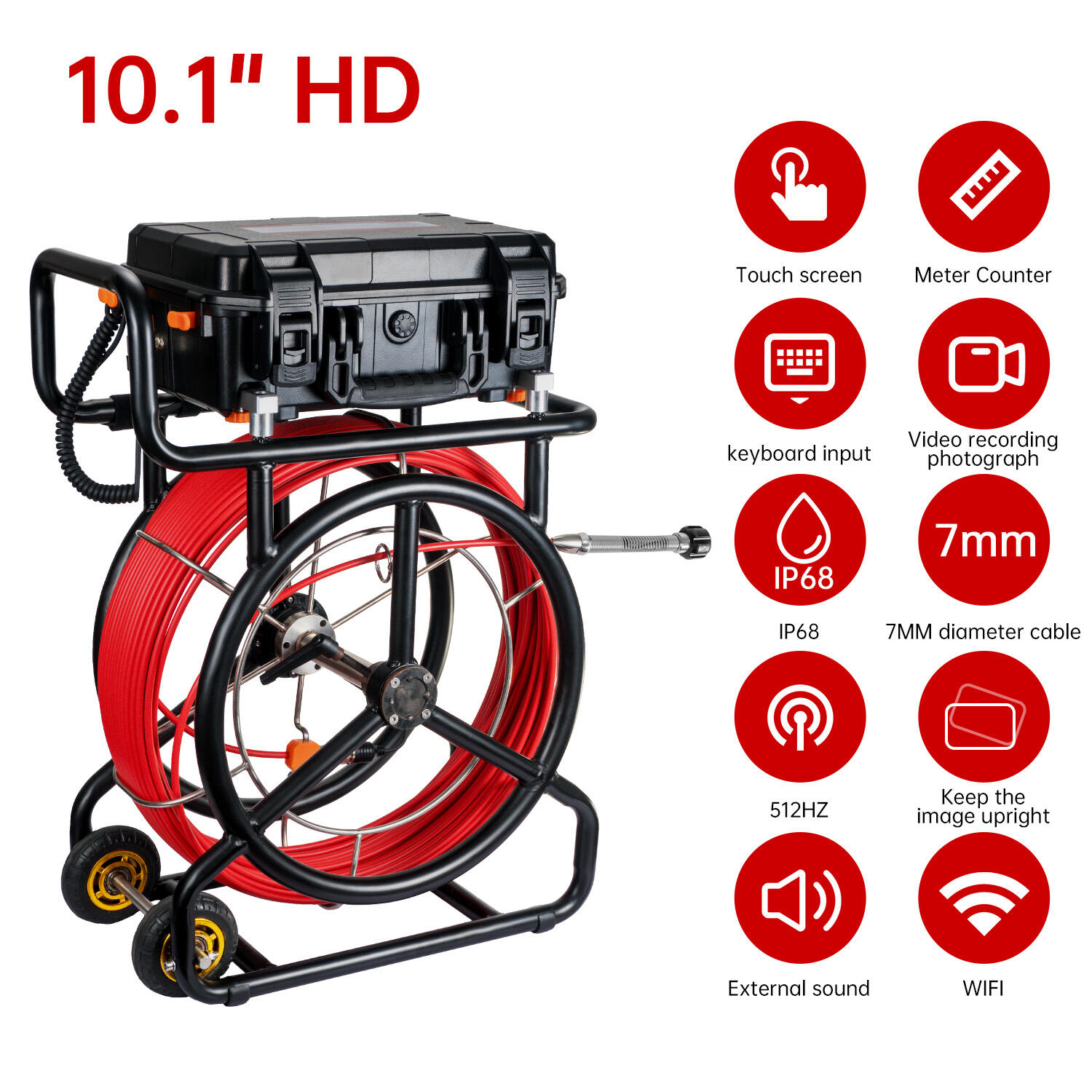

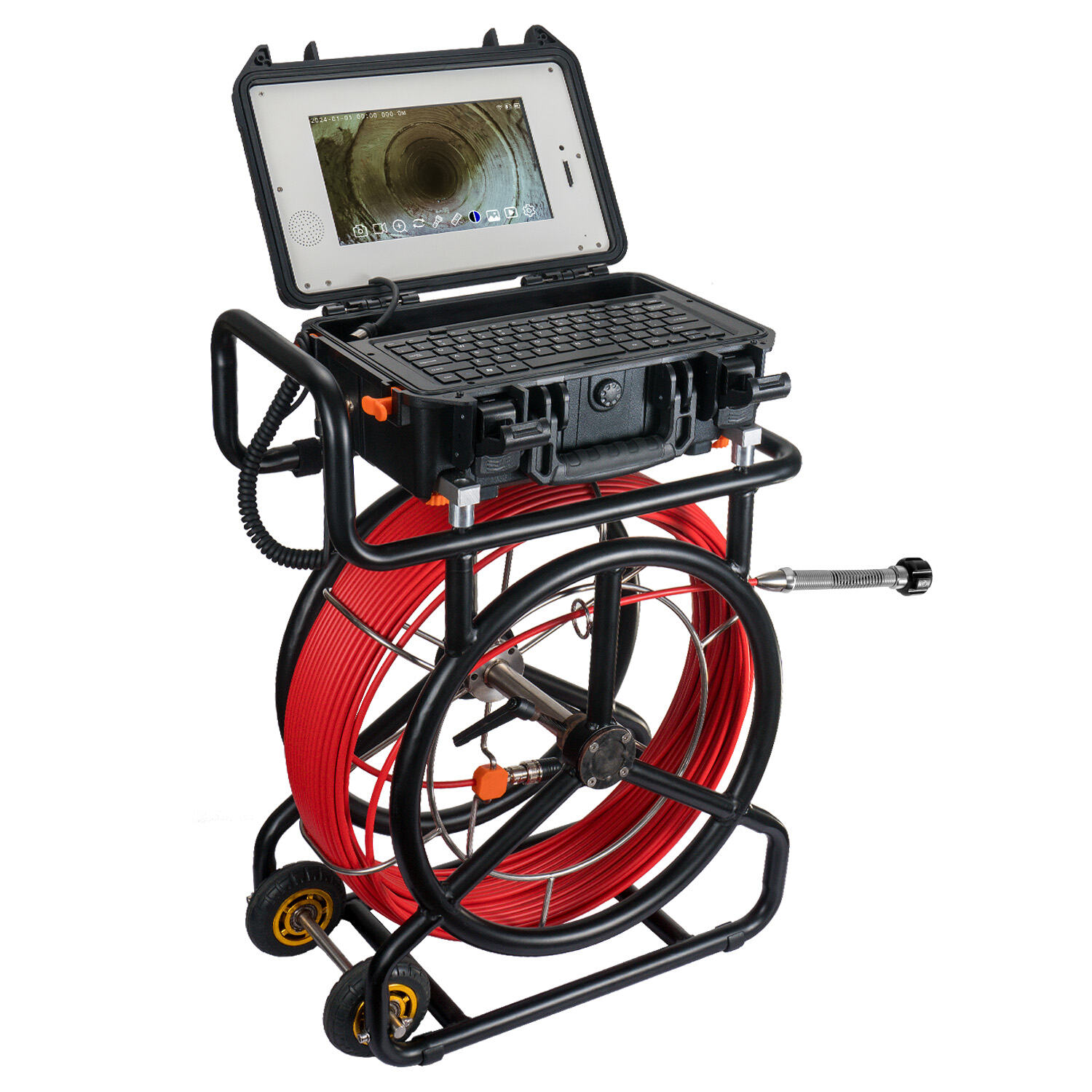

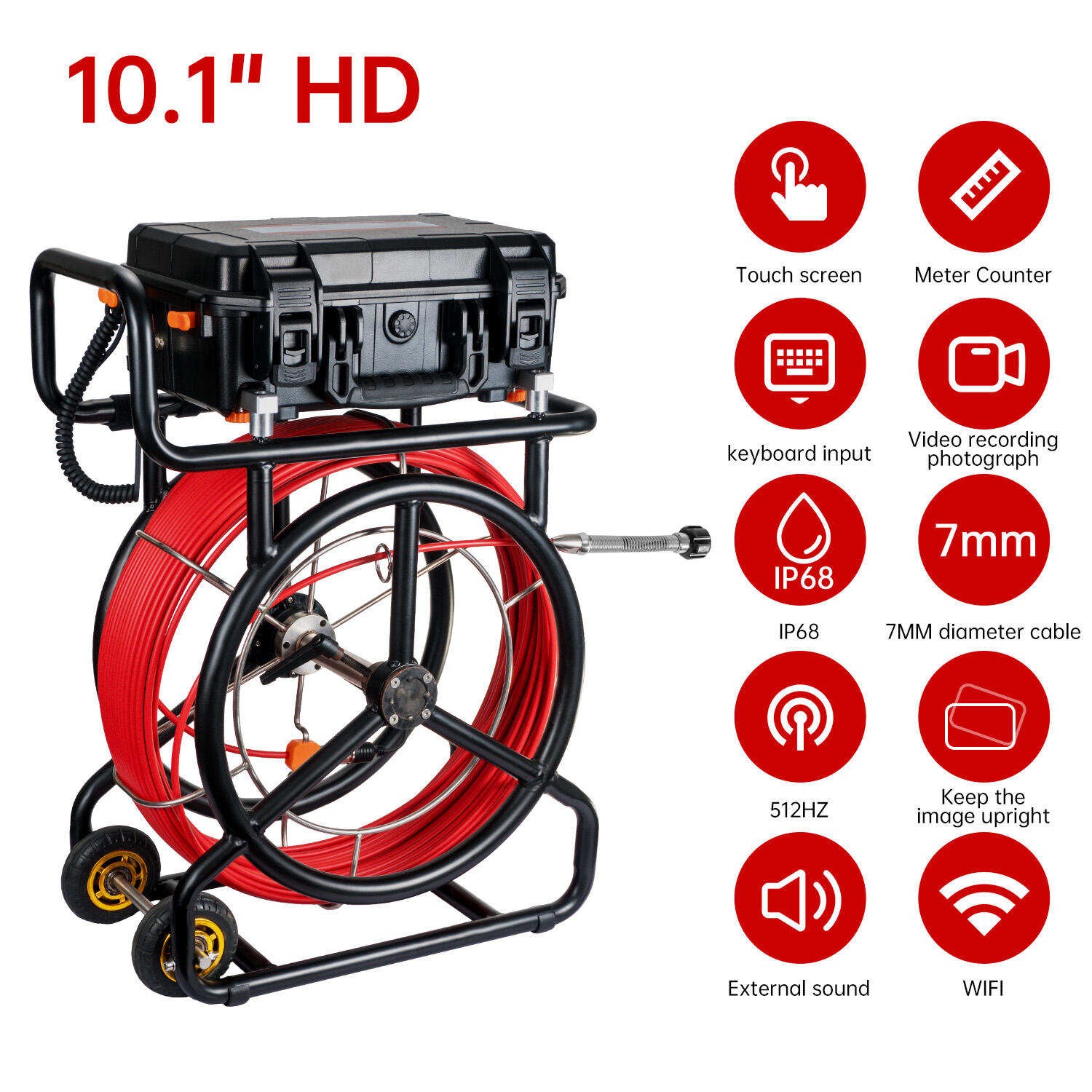

10.1inch HD1080P Screen Sewer Camera with 512Hz Sonde+Self-leveling Pipeline Plumpling Inspection WIFI &16GB DVR Video and Audio Recording
Pipe Camera Factory 512Hz Sonde Sewer Camera 20X Image Enlarger & 10Languages Plumpling Camera Meter Counter OEM&ODM
- Overview
- Recommended Products

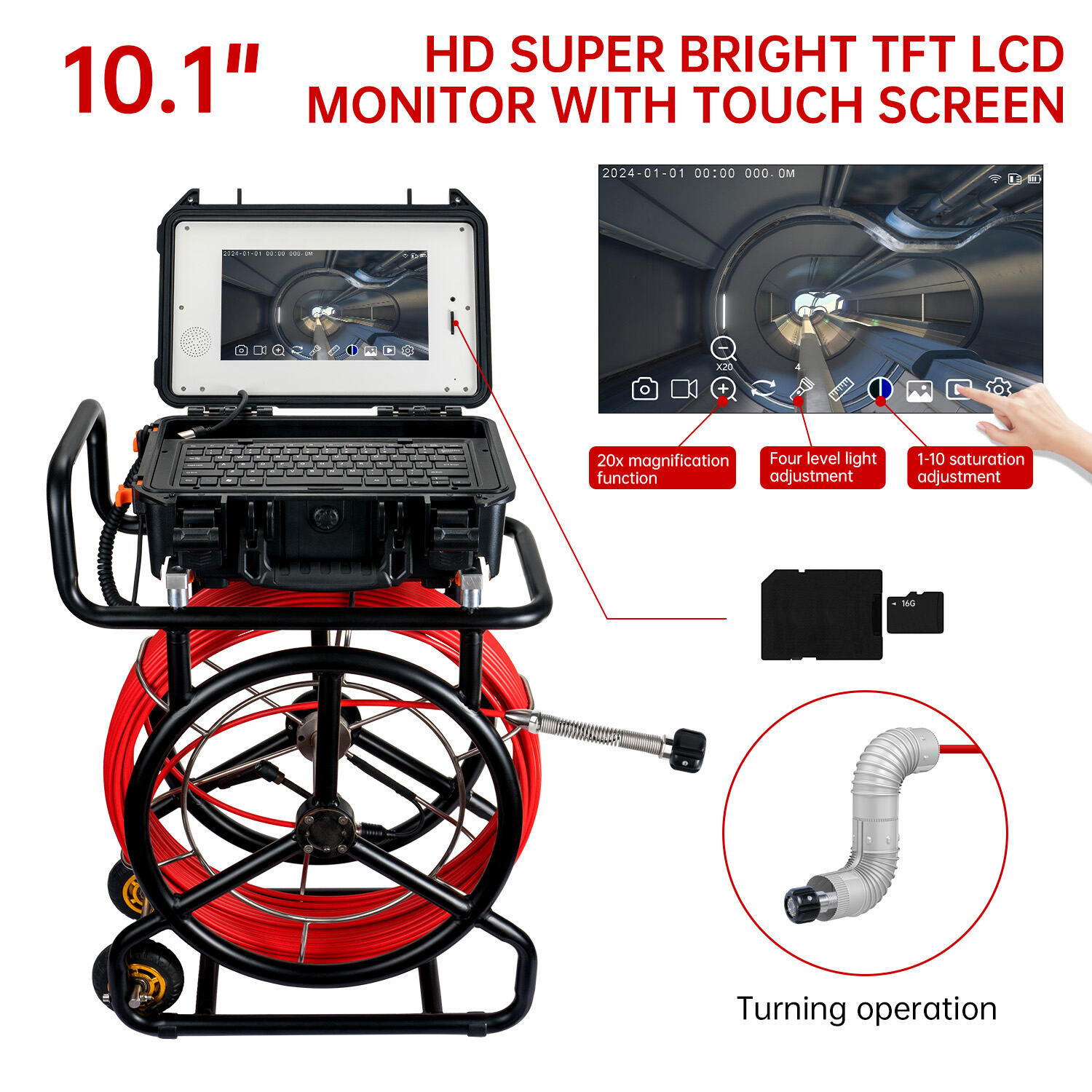

- 1920×1080 Full HD resolution, 500 nits brightness
- Anti-glare + foldable sunshade for perfect outdoor visibility
- Capacitive multi-touch + physical buttons (glove-friendly)

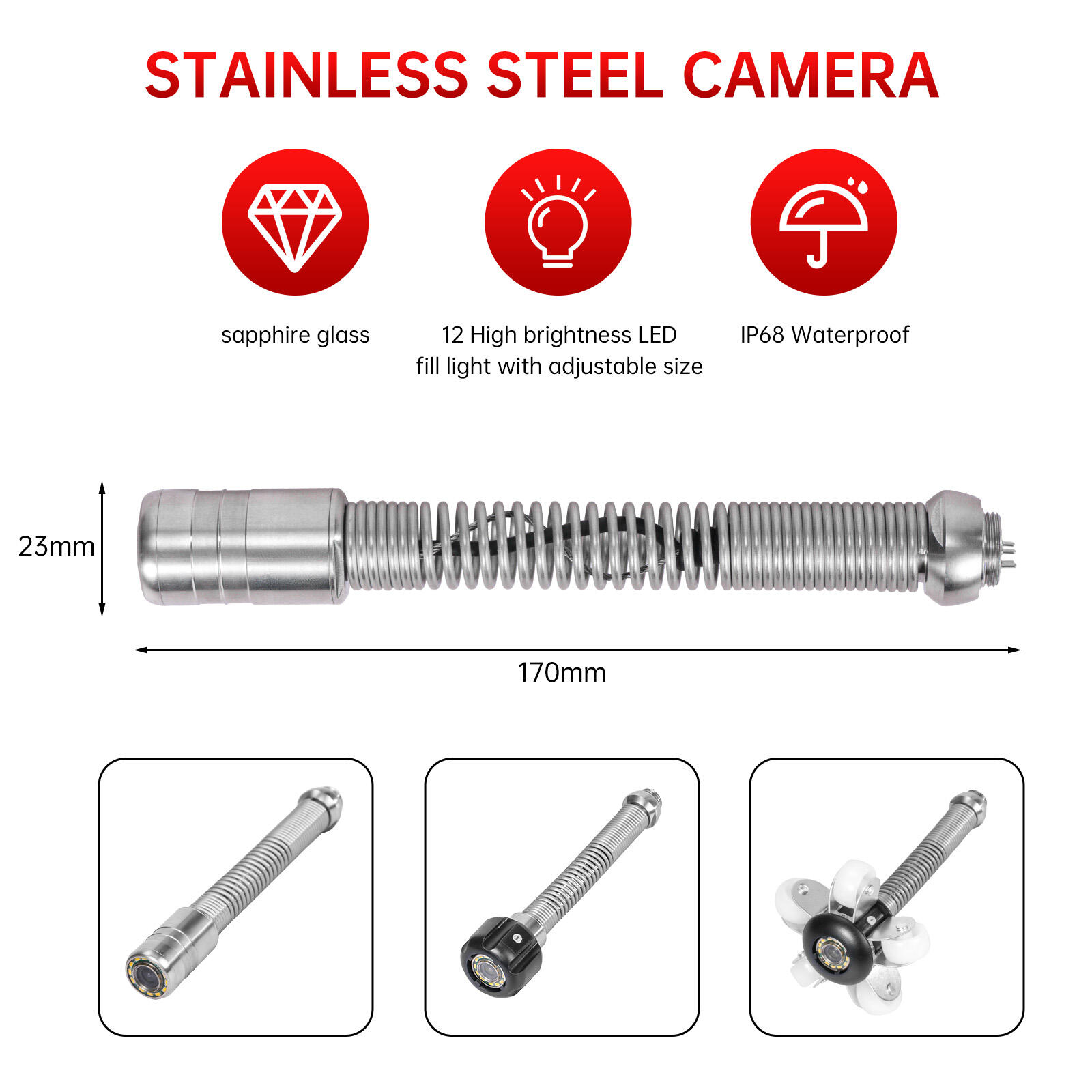

- 23mm stainless steel head with sapphire glass lens

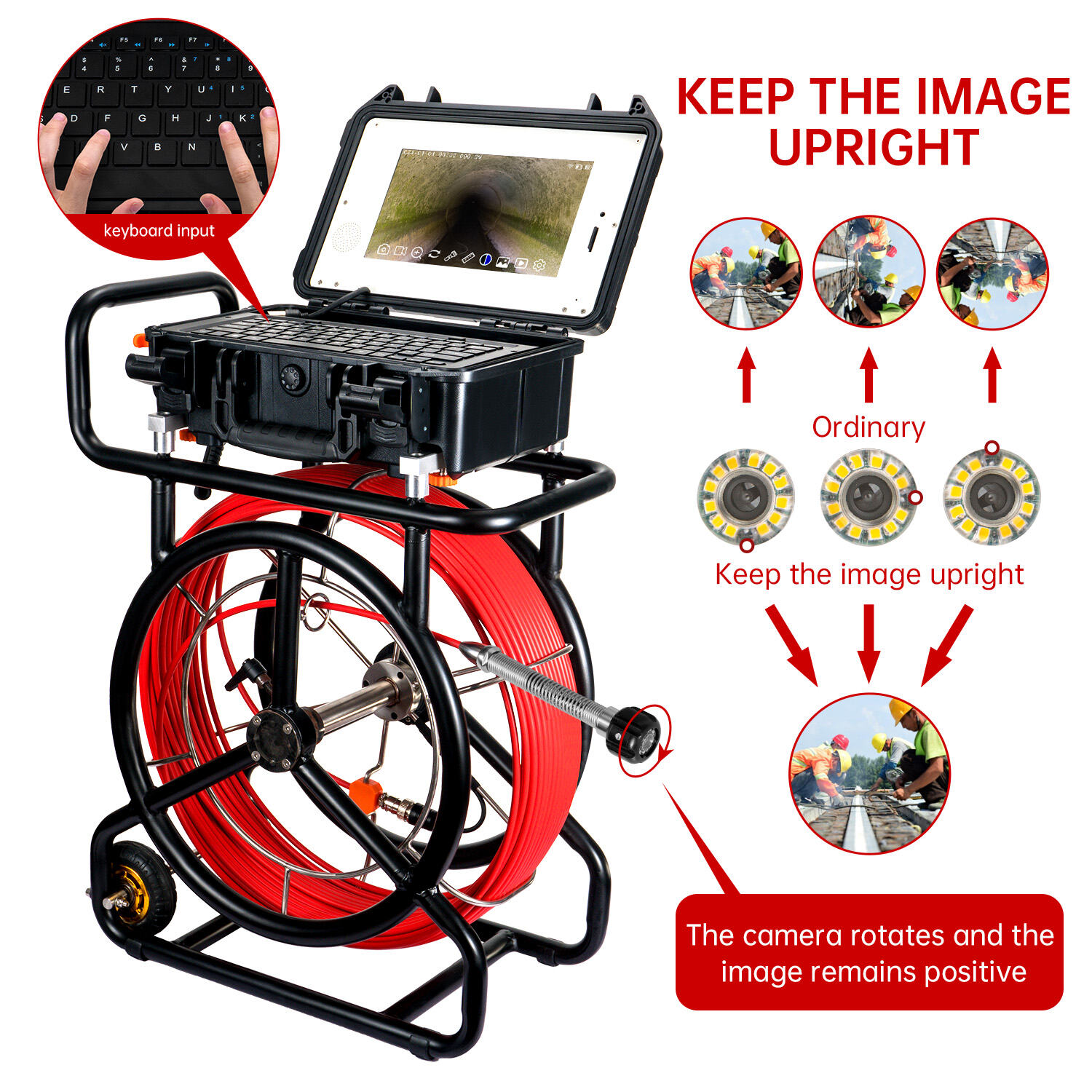

- Automatic self-leveling — image always stays upright no matter how the cable twists

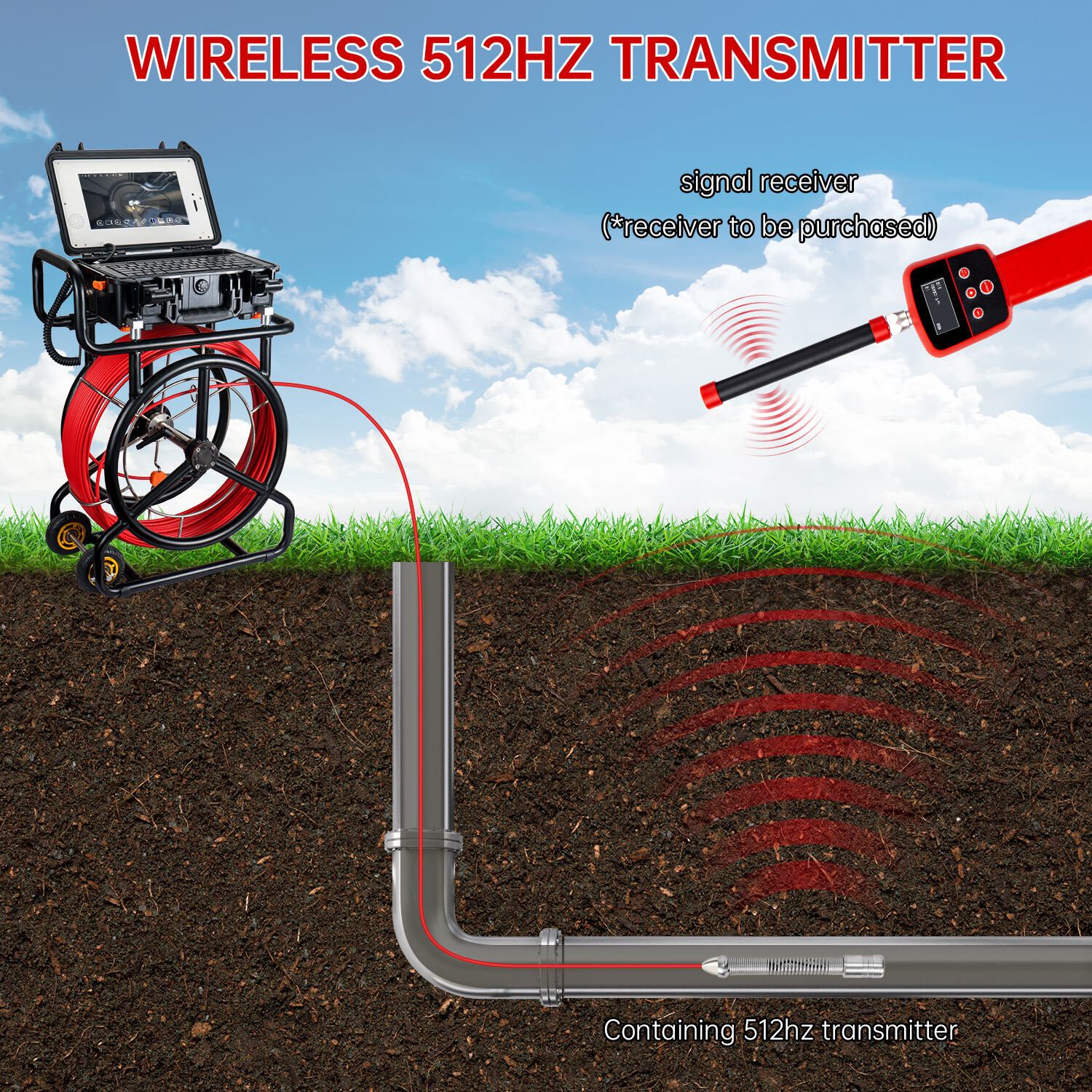

- Built-in 512Hz transmitter sonde (compatible with all major locators: Ridgid, Vivax, Leica, etc.)
- Pinpoint underground pipe depth and position to within centimeters
- Built-in WiFi hotspot connects to iOS/Android app
- Live 1080P streaming to phone/tablet up to 30 meters away
- Clients can watch inspection in real time on their own device
- Remote photo/video capture from the app
- Pre-installed 16GB SD card (expandable to 128GB)
- 1080P video + synchronized audio via built-in microphone

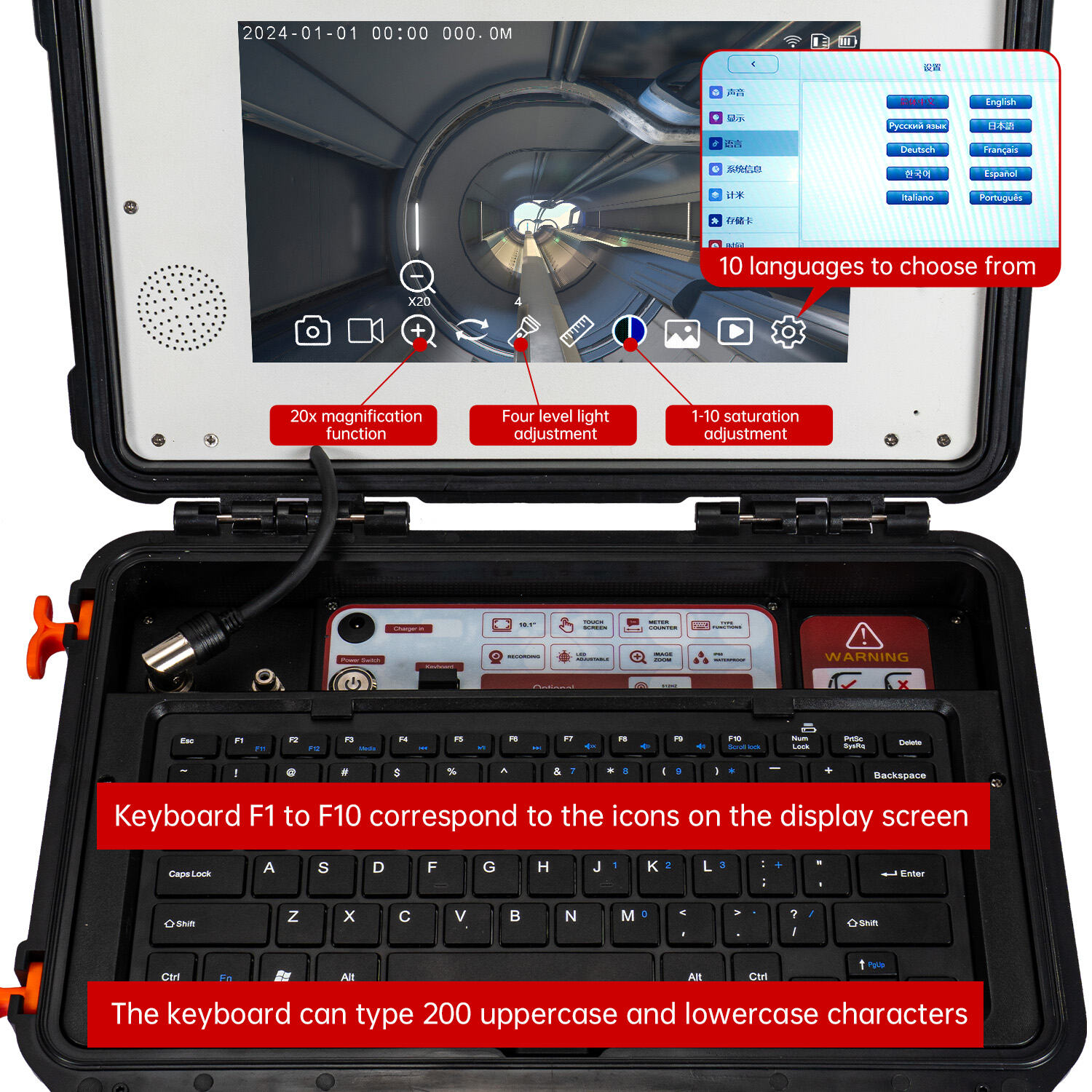

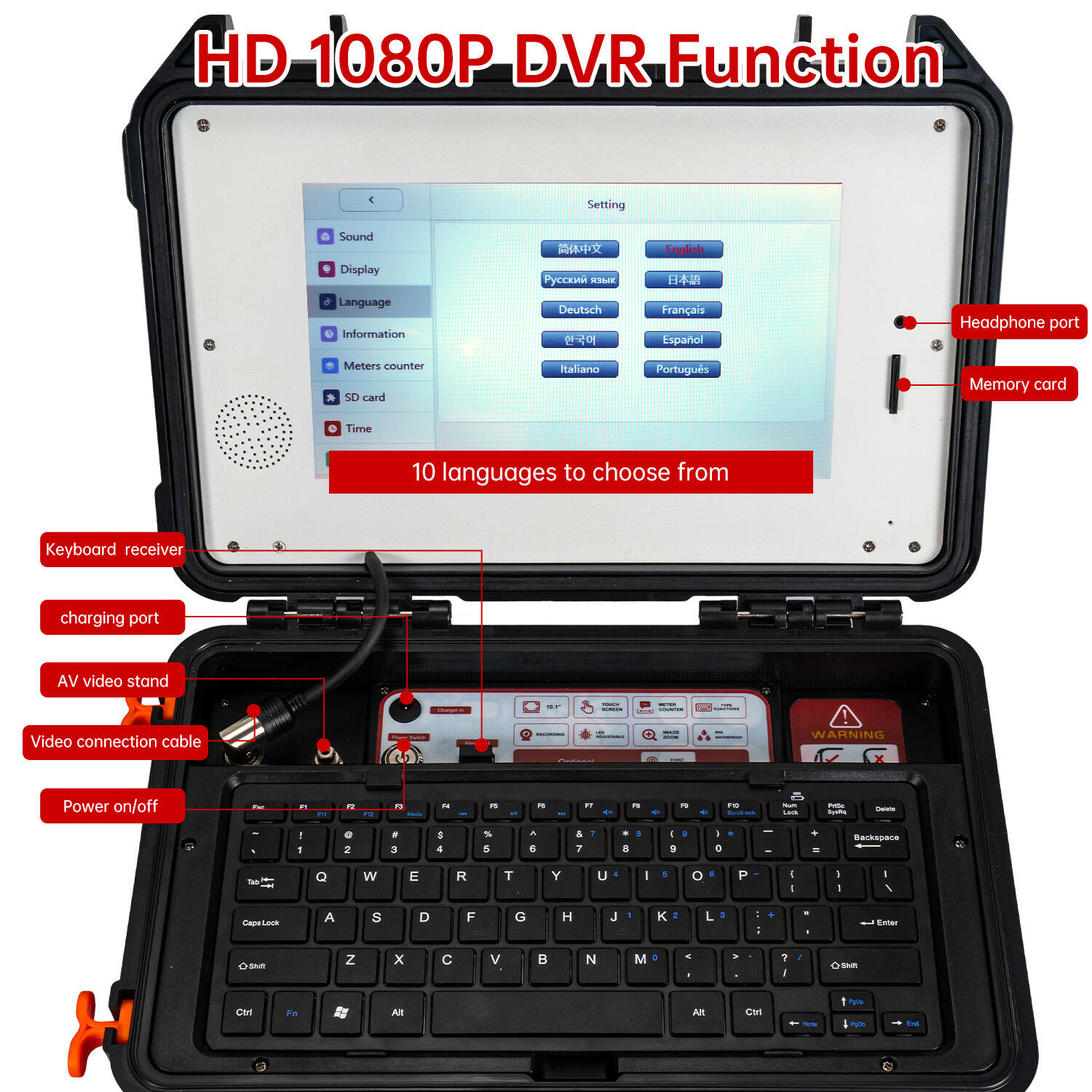

- On-screen keyboard for typing job notes, client name, address directly onto video
- One-touch recording and snapshot

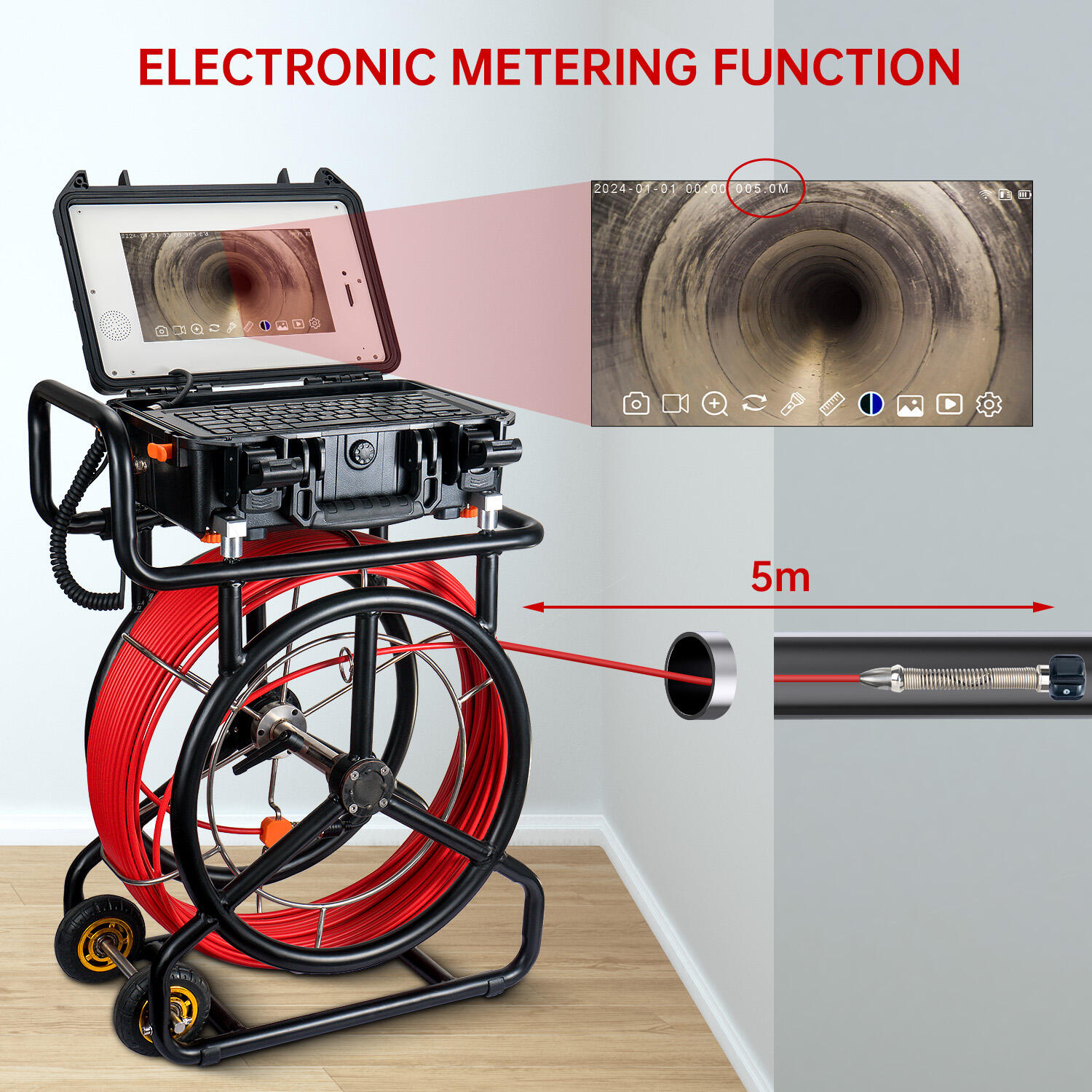

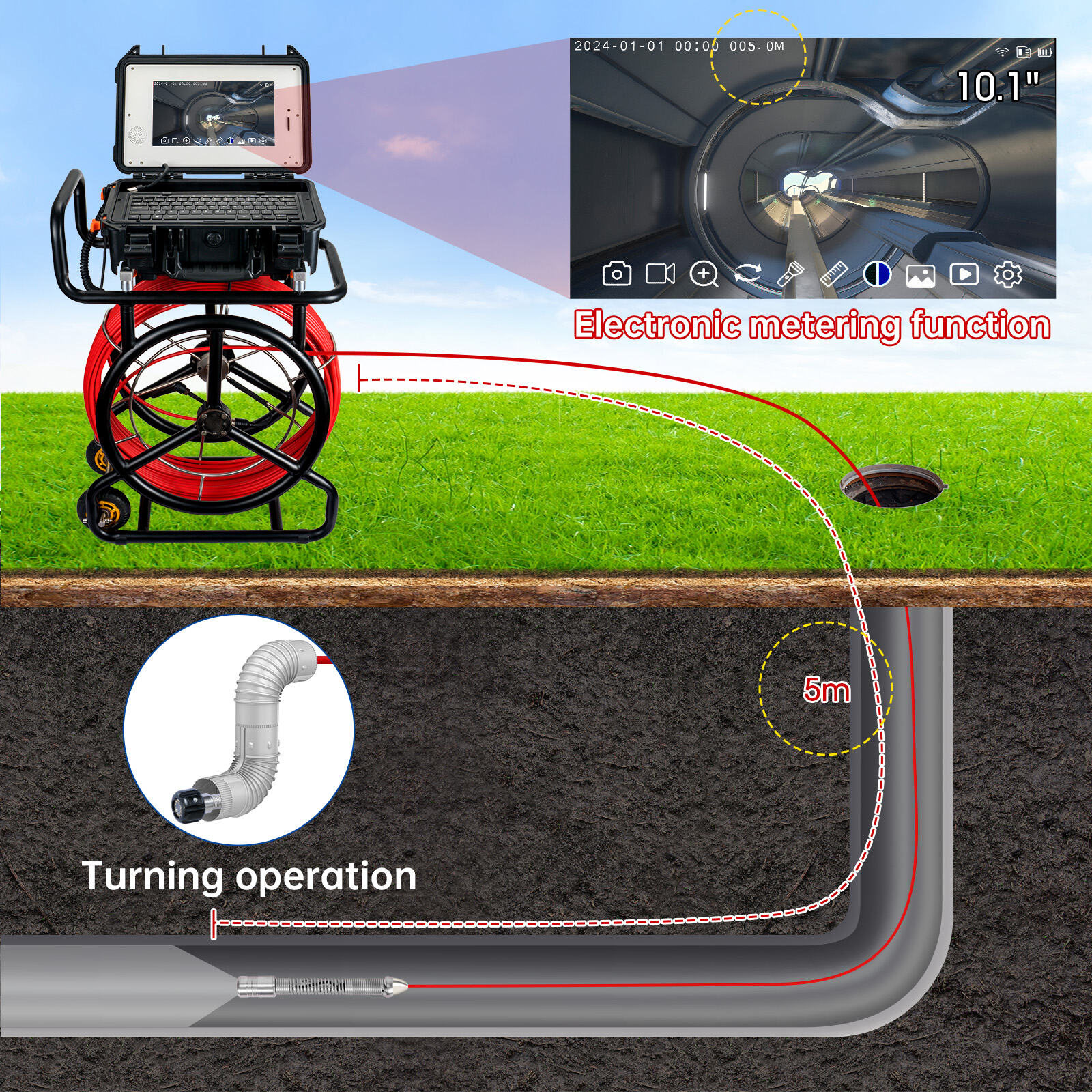

- Real-time distance display on screen (meters or feet selectable)
- Accuracy ±1% – essential for producing precise pipe mapping reports
- Magnify tiny cracks, markings, or offsets up to 20 times while retaining usable detail

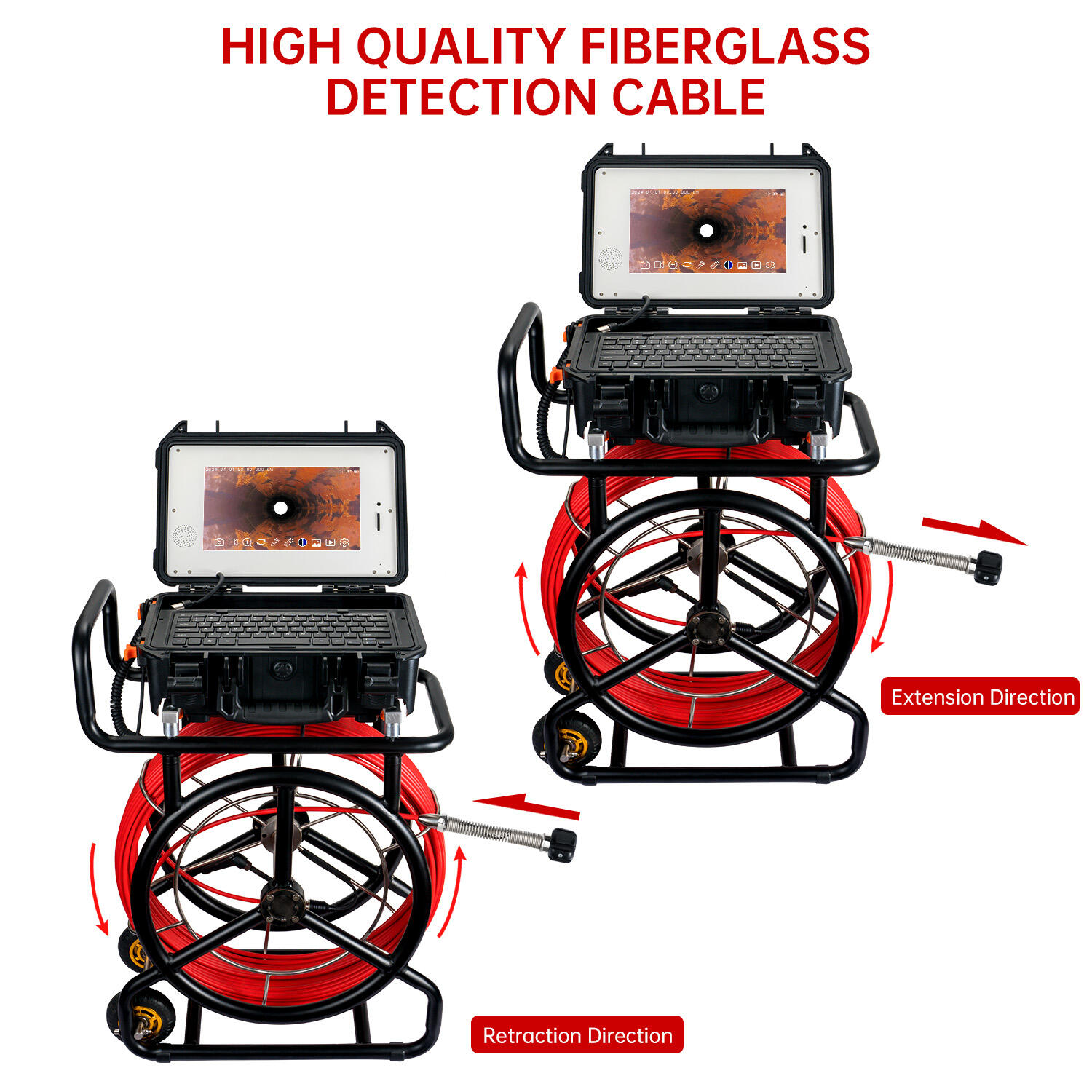

- High-strength fiberglass core with smooth PP coating
- Standard lengths: 10-150m (custom available)
- Easily passes multiple 90° bends in 2–10 inch pipelines
- CE certified for safety and EMC compliance across Europe
- RoHS compliant – free of lead, mercury, cadmium and other hazardous substances
- Reinforced aluminum monitor housing + IP67-rated control box
- 7200mAh internal battery + external power bank port (12+ hours runtime)

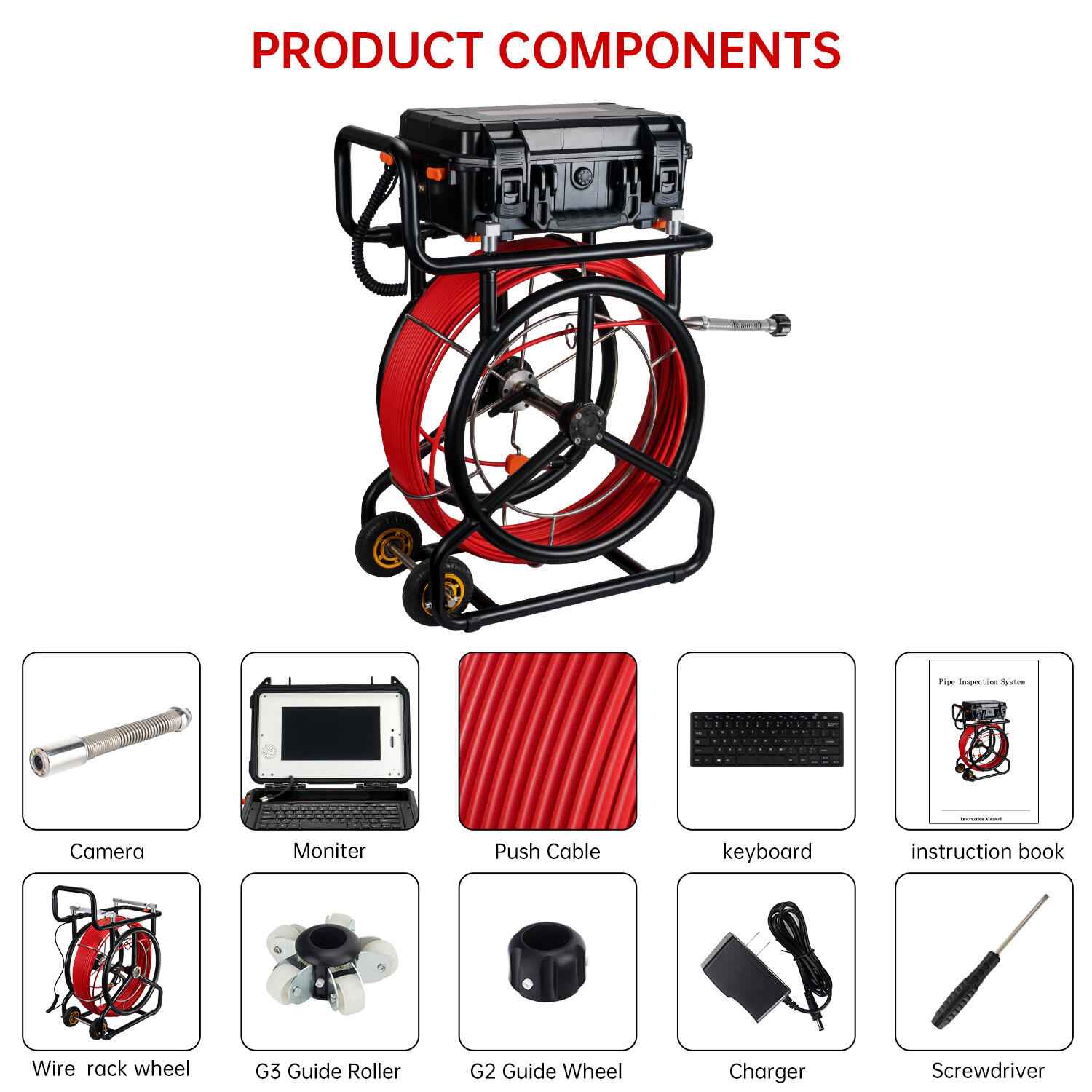

- Complete kit in heavy-duty waterproof carrying case
- How does the 512Hz sonde and self-leveling feature help in real jobs?
The built-in 512Hz sonde lets you locate the exact position and depth of the camera head underground using any standard locator. Self-leveling keeps the image perfectly upright at all times, so you never waste time rotating footage later – essential for fast, accurate sewer mapping. - Can clients watch the inspection live without extra equipment?
Yes! The built-in WiFi creates a hotspot. Clients simply download our free app and watch the 1080P live feed on their phone or tablet from up to 30 meters away. You can also type comments directly on the video in real time. - Is the meter counter accurate enough for official reports?
Absolutely. The digital meter counter has ±1% accuracy and displays distance in real time on screen. It’s widely accepted by municipalities and insurance companies for producing professional pipeline inspection reports. - Do you actually manufacture this and offer OEM/ODM branding?
Yes – we are the original factory established in 2012 with our own 15,000㎡ facility. We offer complete OEM & ODM: custom boot logo, language packs, cable colors, private-label boxes, sonde frequency (512Hz/33kHz), meter counter branding, etc. MOQ for full customization starts at only 50 units with highly competitive factory pricing. - Are CE and RoHS certifications included for European and global sales?
Every unit is fully CE certified (safety & EMC) and RoHS compliant (hazardous substance free). Certificates are provided with each shipment, making import and resale in Europe, USA, Canada, Australia, and most countries completely hassle-free.
10.1-Inch Professional 512Hz Sonde & Self-Leveling Sewer CameraFactory Direct Since 2012 – Full OEM & ODM SupportedEstablished in 2012, we are a leading Chinese inspection camera manufacturer with 13+ years of specialization in high-end sewer camera and pipe camera systems.
This flagship 10.1-inch model is trusted by over 1,200 plumbing companies and municipal fleets across 70+ countries. Loaded with professional-grade features — 1080P self-leveling camera head with built-in 512Hz sonde, WiFi live streaming, 16GB DVR video & audio recording, real-time meter counter, 20X image enlarger, 10-language interface, and full CE & RoHS certification — this is the ultimate all-in-one pipeline inspection tool for locating blockages, mapping underground lines, and producing client-ready reports.Flagship Features That Professionals Demand1. Large 10.1-Inch 1080P HD IPS Touch Screen
Feature |
Specification |
|---|---|
Screen |
10.1″ IPS 1920×1080 Full HD, 500 nits, capacitive touch |
Camera Head |
23mm self-leveling, 1080P CMOS, sapphire lens, built-in 512Hz sonde |
Lighting |
12 ultra-bright LEDs, 10-level adjustable |
Sonde Frequency |
512Hz (compatible with all standard locators) |
Cable |
7mm fiberglass push rod – 10-150M options |
Waterproof |
IP68 camera head & cable, IP68 monitor |
Recording |
16GB SD card included (max 128GB), 1080P video + audio, on-screen text writer |
WiFi & App |
Built-in WiFi hotspot, free iOS/Android app for live view & control |
Meter Counter |
Real-time digital distance counter (meters/feet) |
Zoom |
20X digital image enlarger |
Battery |
4500mAh internal (6–8h) + external power bank port (6-9h) |
| Wifi | Wifi Function |
Languages |
10 languages built-in |
Certifications |
CE, RoHS, FCC, IP68/IP67 |
Weight |
≈12kg (20m version) |
Frequently Asked Questions (Q&A)
Contact us today for wholesale pricing, free branding mockups, or evaluation samples. Your trusted factory partner since 2012!
